Stud Finder Wall Scanner, 5 in 1 Multifunction Stud Locator with Smart Sensor, HD LCD Display and Audio Alarm for The Center & Edge of Metal, Studs, AC Wire, and Pipe Detection (Tropical Orange)
- Reliability and Consistency: The Jurgen K stud finder uses multi-sensing technology to accurately and quickly find the edges and centers of live AC wires behind metal, studs, joists, pipes, walls, floors and ceilings. Whether you're hanging a picture, installing a TV or renovating part of your home, the Jurgen K stud detector is a must-have tool!
- 5 in 1 Multifunction Detection: The upgraded 5 in 1 mode provides users with more detection needs. The stud scan is available in 5 modes: 1/2 inch(13 mm), 1 inch (25 mm) and 1.5 inch (38 mm), Metal scan (60 mm)and AC scan (51 mm). Quick detection saves users time and effort, making tasks easier to complete. Whether you are a professional, homeowner or DIY enthusiast, it must be the ultimate choice.
- High Performance: An easy-to-read LCD screen displays the required stud material and the precise position of the stud. When the device detects an object, it makes a continuous beeping sound, and a pecking shape is displayed on the LCD screen. This wall scanner features a backlit LCD display and low power indicator to inform you when you should replace the battery for optimal performance (including the 9V battery).
- Ergonomic Grip & Auto Calibration: Ergonomic non-slip grip provides comfort and convenience for users while scanning. Calibration before use provides users with maximum reliability and accuracy. First place it flat on the wall, second, turn on the power button, then hold down the scan button to start the calibration, when the beep and screen display disappear, the calibration is complete.
- This stud detector quickly locates wood, metal and AC wires hidden in your house's walls, floors and ceilings. It can work on different wall surfaces, such as slats, wallpapered wood floors, soundproof ceilings, painted walls, etc., to help you avoid hazards when installing TVS, cabinets, garage racks, etc.
-
Save 10% when you buy two or more items.
-
Get 5% off your next purchase.
-
Enjoy free delivery on orders above $200.
-
Orders are processed and shipped from Canberra
3-6 days (Domestic)
Confidence-backed purchases with 30-day return support.
AUD |
BRSREAIYBF4GCA3P |
Category |
Measuring & Layout Tools , Scanners & Testers , Stud Finders |
Tags |
Estimated shipping
Select a product to estimate shipping.Are you annoyed by the unknown on the other side of the wall?

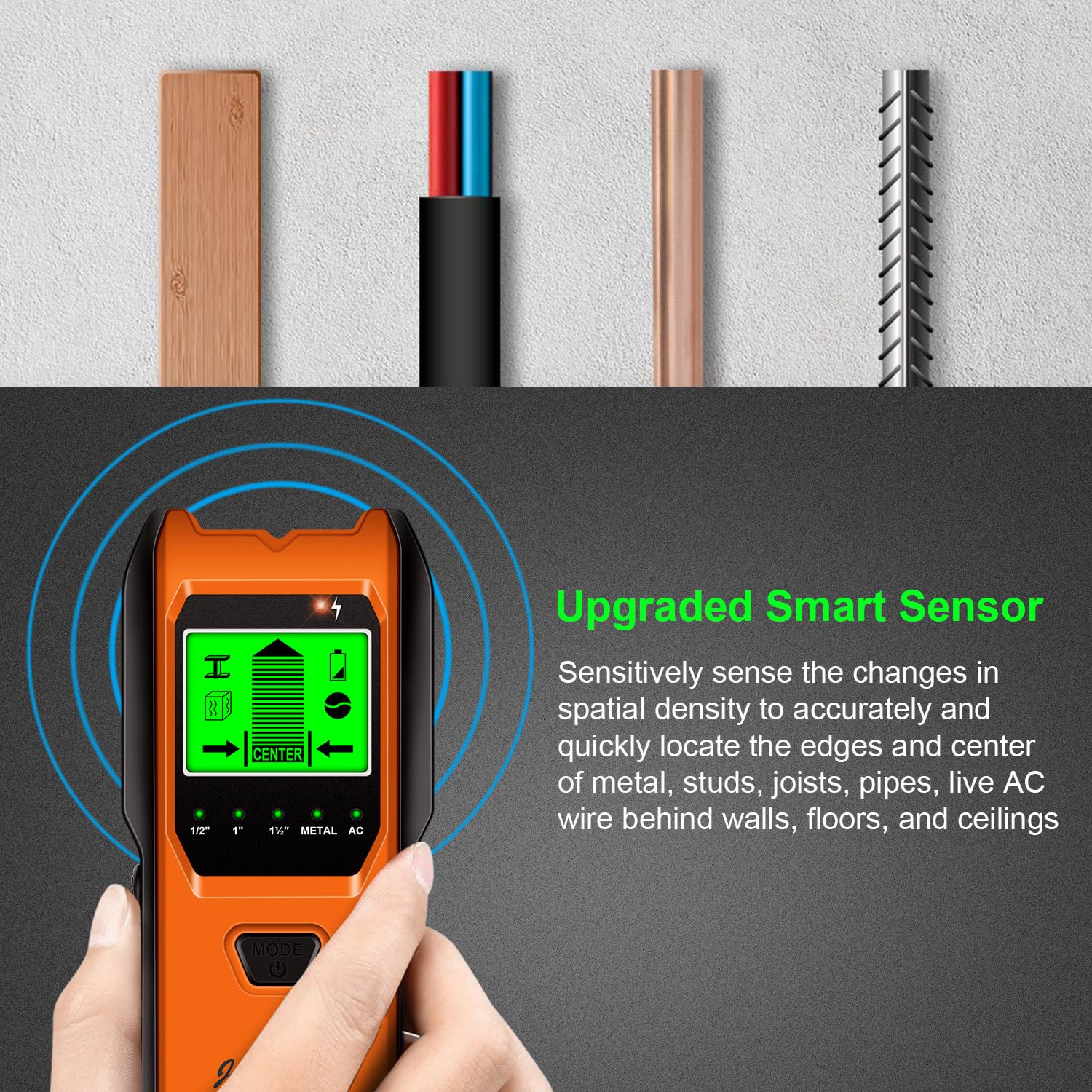

Jurgen K stud finder uses UPGRADED SMART SENSORS which can sense the change in density in the space behind the wall and locates the stud center with GREAT ACCURACY.
Whether you’re hanging a picture, mounting a TV, renovating part of your home. Jurgen K stud finder is one of those tools that you will eventually need!
Jurgen K stud finder can give great help on your work, to avoid damage and protect your safety with accurate detection. Don't worry about having difficulty using such a wall scanner tool.

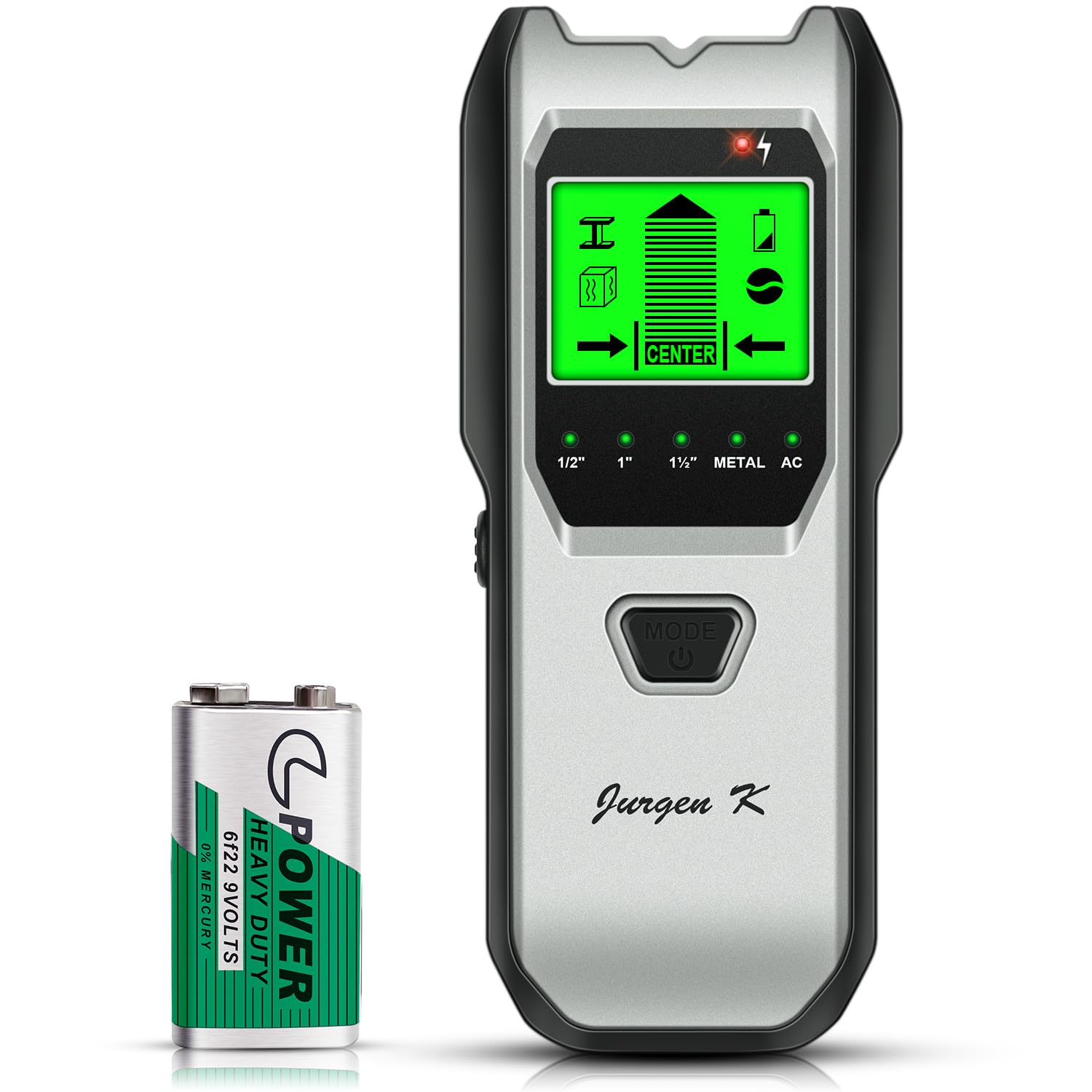

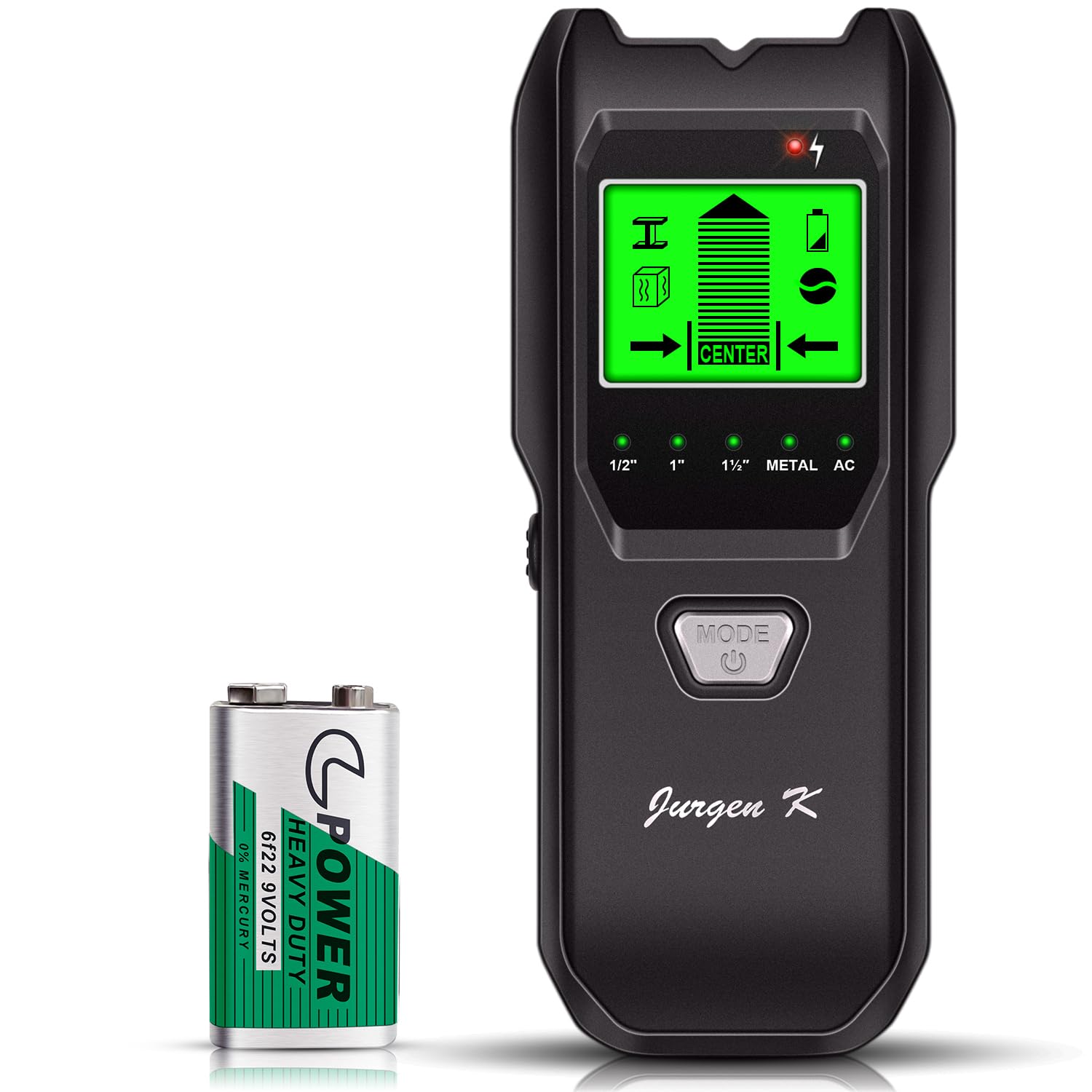

1 x Jurgen K Stud Finder
1 x 9V Battery
1 x User Manual

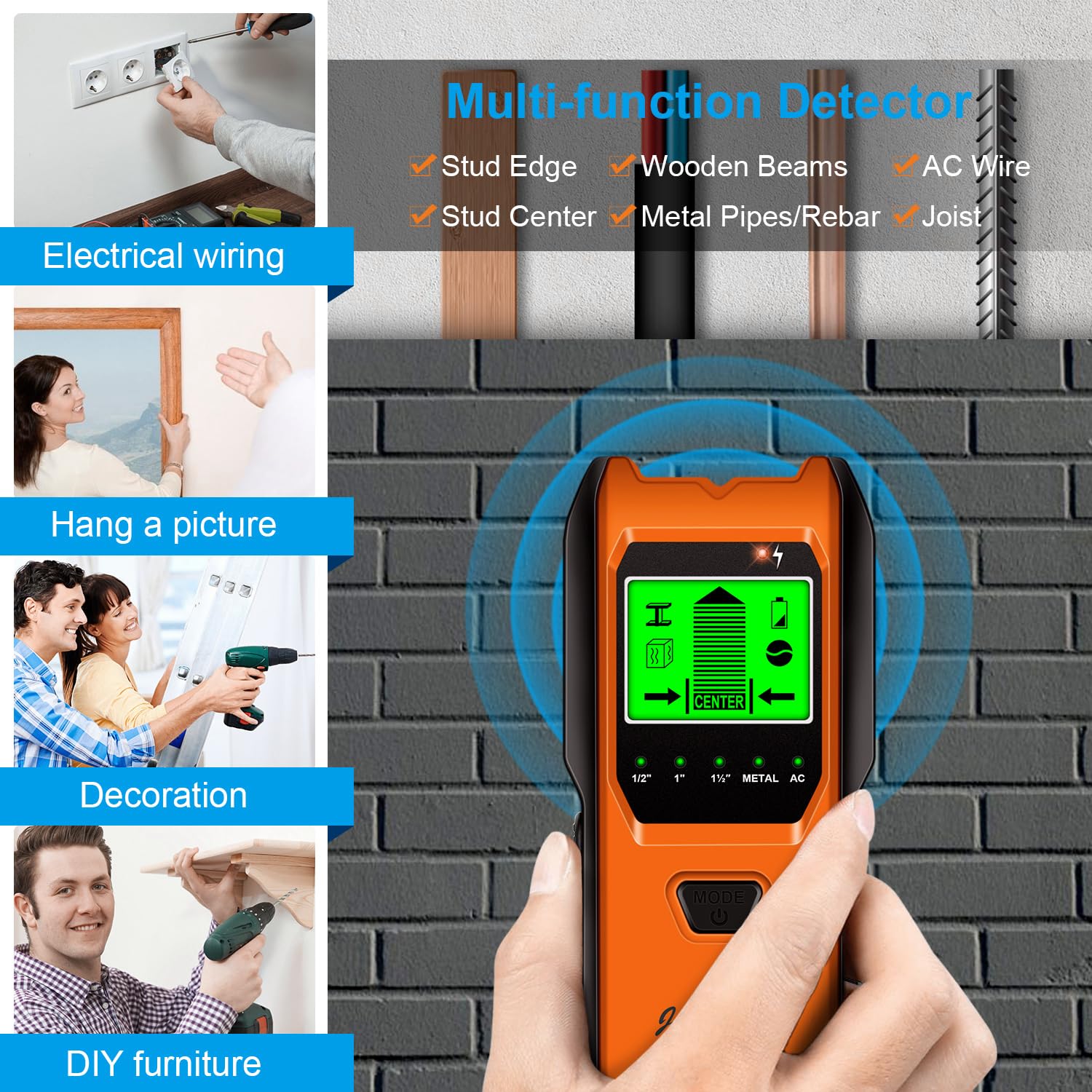

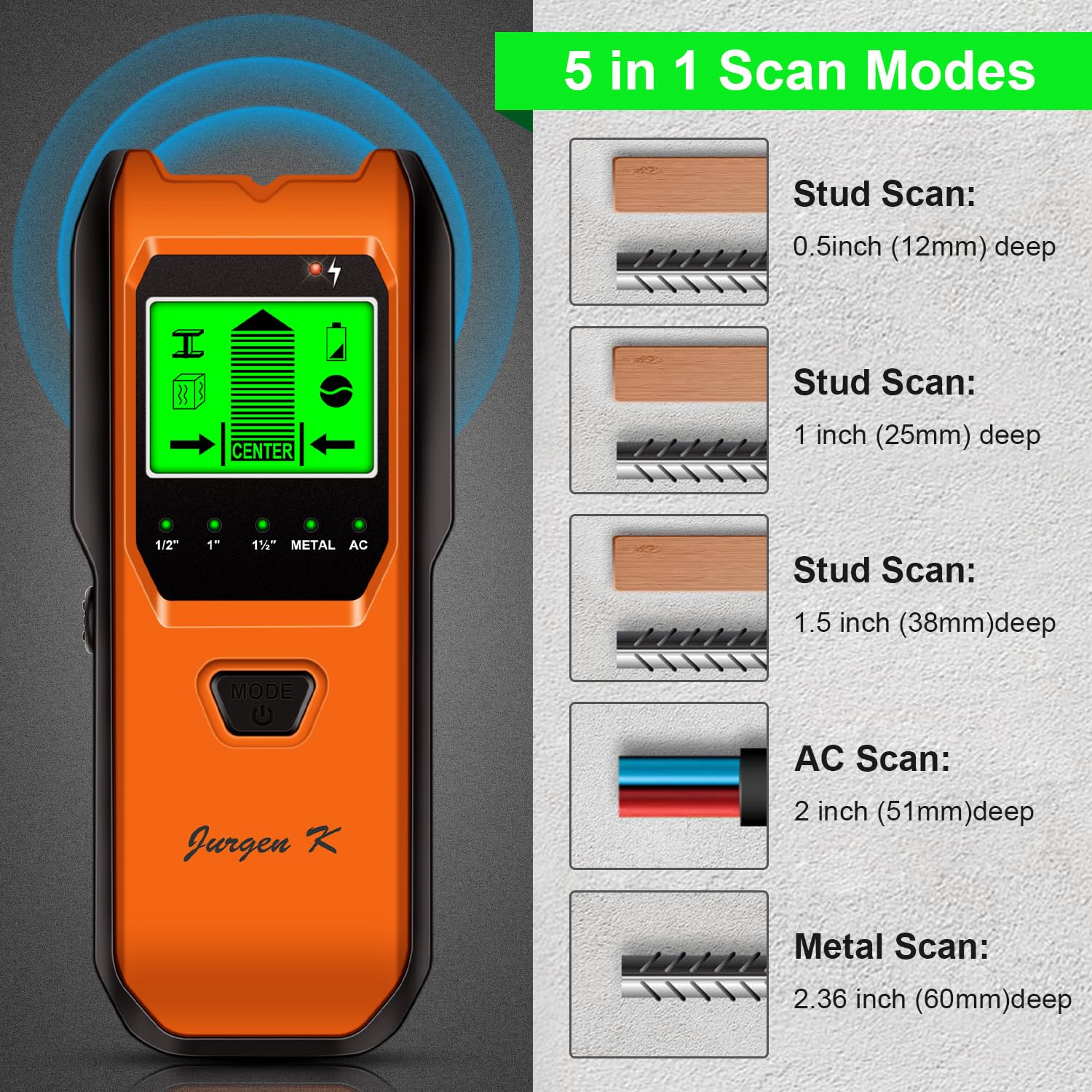

Jurgen K stud finder features 5 scanning modes for detecting studs, metal and AC wires. You can select the ideal modes conveniently to meet your different detection needs.
Why choose Jurgen K stud finder?
Quick & Precise Positioning
5 IN 1 Deep Detection Function
Auto Calibration & Ergonomic Grip
9V battery & Low Battery Indication
LCD Screen Displaying & Sound Warning
Stud Scan Detection
This stud mode has three depth stud scanning choices. Deep scan mode scans up to a maximum depth of 1.5 inches (38 mm).
DeepScan mode is a sensitive scanning mode that should be used when there are additional layers for wall panels and panels. To minimize false alarms or other objects behind the wall that may not be studs. Always start scanning at a resolution of 0.5 inches(12mm).
After you detect the center of an object, Please Use Metal Scan to determine if the reading in Stud scan mode was a wood stud, metal stud, or pipe.
Metal Scan Detection
Metal Scan mode detects pipe up to 2.36 inches (60 mm) deep. Jurgen K wall canner will locate metal studs in Stud Scan, Deep Scan, and Metal Scan Modes. Since the stud finder is looking for a change in density behind drywall, not a particular material, in Stud Scan and Deep Scan Modes the detector will react to metal studs the same as it would for wooden studs.

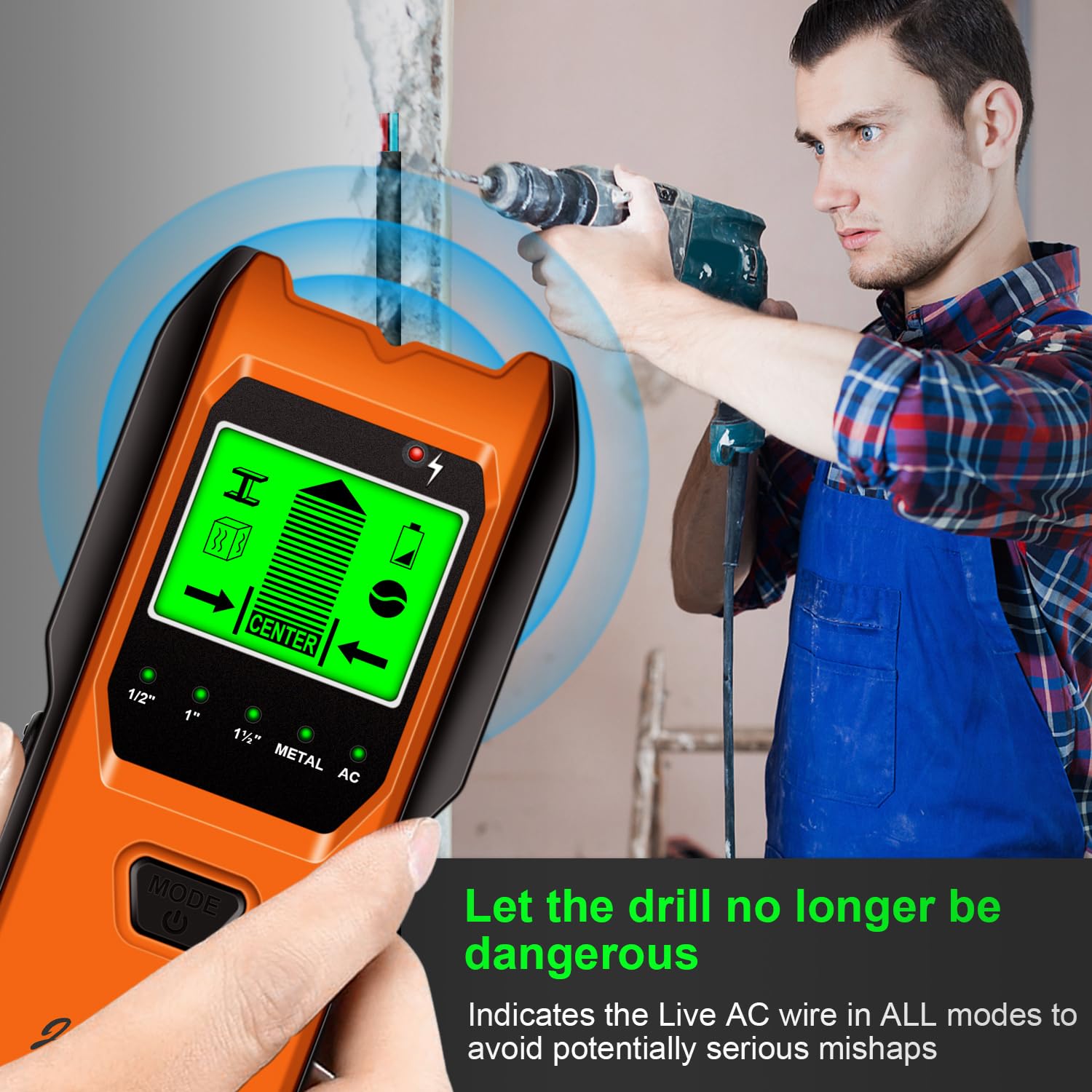

Wire Warning Detection
Wire Warning detection indicates the presence of live, unshielded electrical wiring up to 2 inches (51 mm) deep. For Safety, in all modes, this wall scanner always detects and indicates the Live AC Wire.
Note: Wire Warning Detection works in both StudScan / DeepScan / MetalScan Modes. The WireWarning Detection Icon will flash when live, unshielded wires are detected.

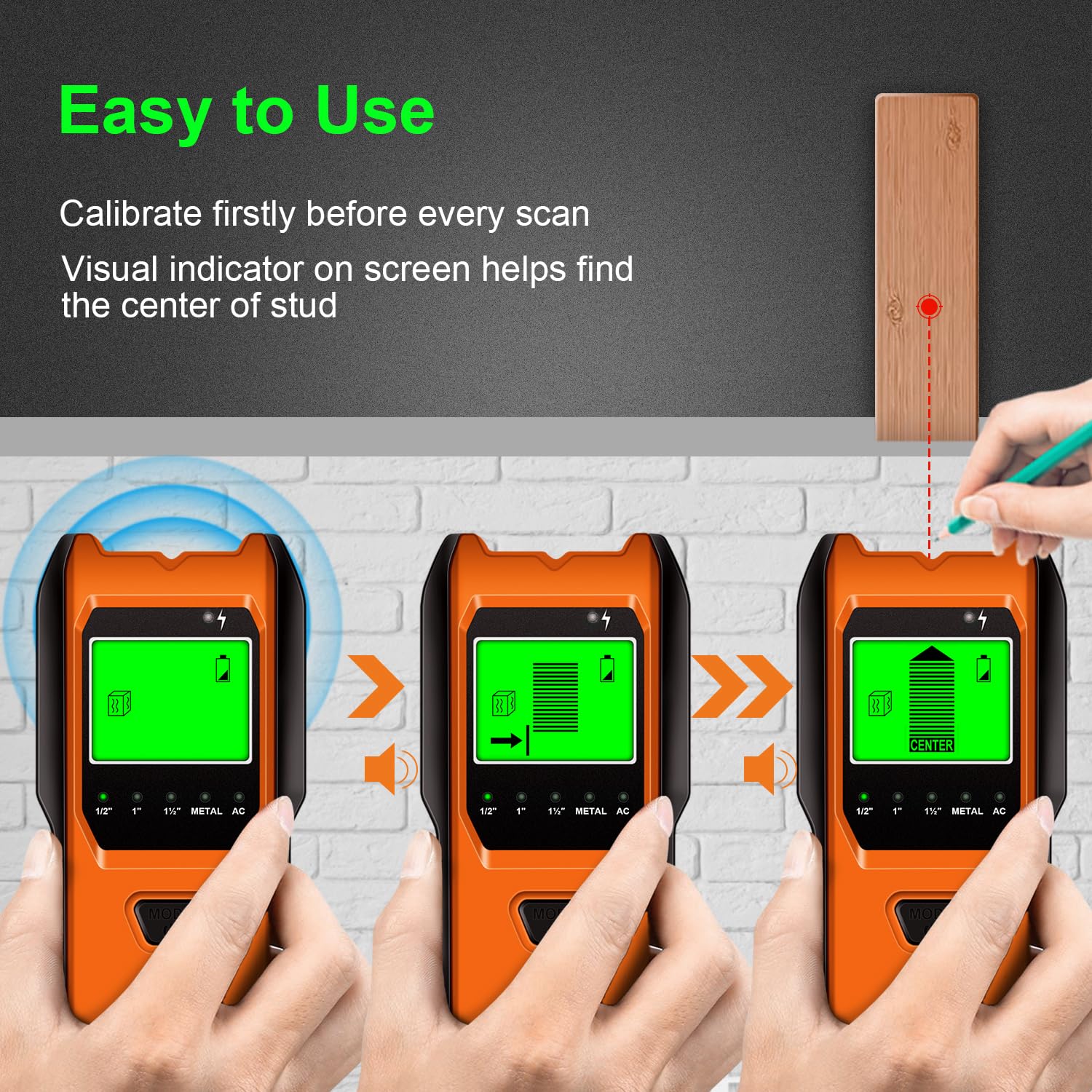

Step 1: SELECTING THE MODE
Press the "Mode button" to turn on the tool. Then press it again to choose five different modes of finding the Stud 1⁄2 in. mode(12mm)/ Stud 1 in. mode(25mm) / Stud 11⁄2 in. mode(38mm)/ Metal / AC Mode. (Press the power button for more than 3s to turn it off).
Step 2: CALIBRATING THE TOOL
Place the TH530 against the wall (Stud /Metal mode)or air(AC mode) first.
Press the Scan button(on the side of the tool) to start calibration this tool but do not move and try to scan at this moment, Wait for the reducing bars to disappear and the buzzer will beep one time and the calibration is completed.
Then you can release the scan button and begin scanning.
Step 3: SCAN THE WALL
After Calibration, move the stud finder along the wall slowly, if you shake or lift the scanner accidentally, the device needs to be re-calibrated.

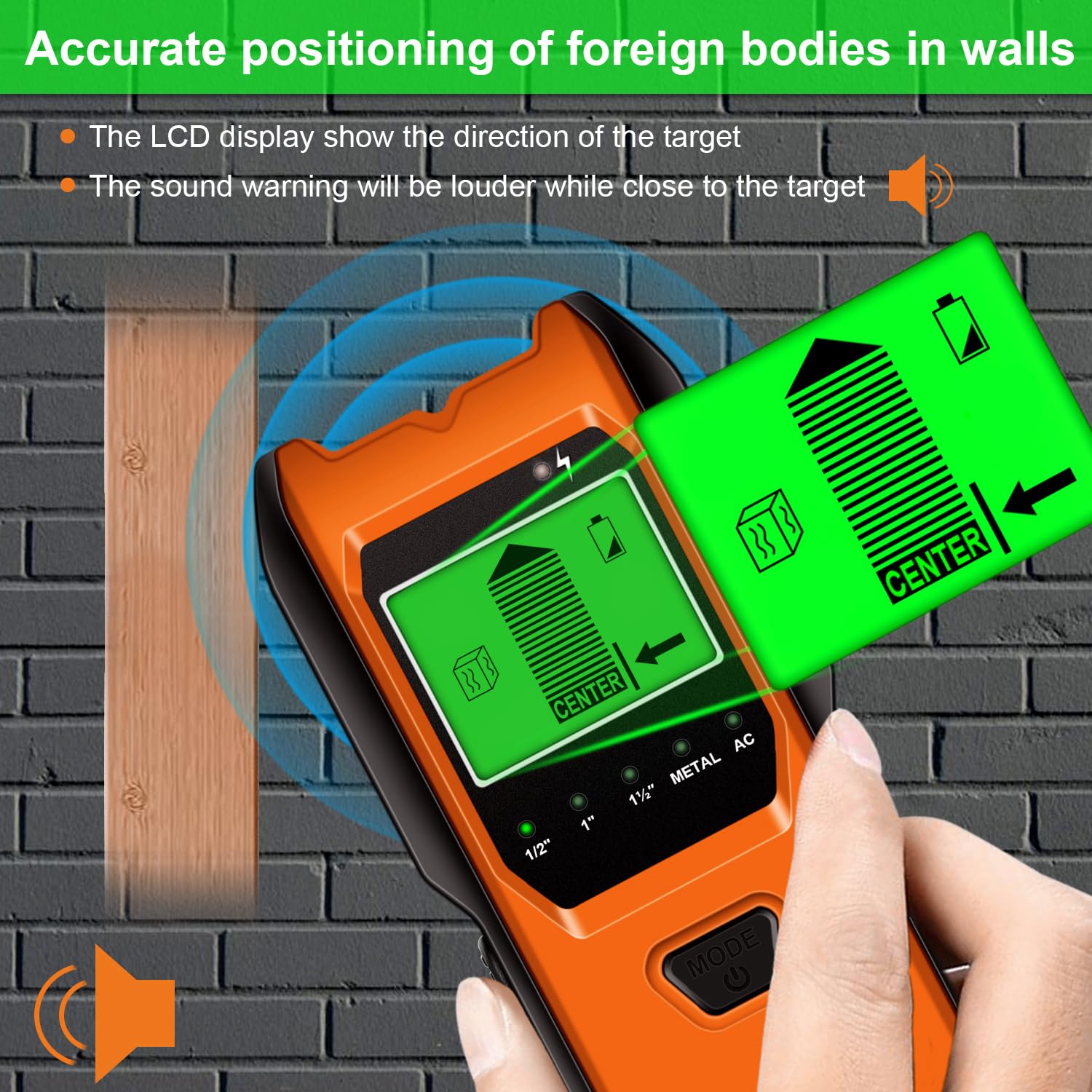

The narrow on the screen together with the beep signal alter, it means you to find the location of the stud.
Step 4: FIND STUD CENTER
When the signal bar is full and the beep alarm is loudest, it means you have found the center of an object. Mark it with your pencil.
Then choose the Metal Scan mode to test whether it is a metal. After you confirm that it is not a metal, it means that you found the center of a stud. Then you can drill it to hang the thing.
Product details
| Main Specification | |
|---|---|
| Manufacturer | Jurgen K |
| Brand | Jurgen K |
| Colour | Tropical Orange |
| Item Weight | 9.6 ounces |
| Product information | |
| Package Dimensions | 8.39 x 3.43 x 1.85 inches |
| Item model number | TH530 |
| Technical Details | |
| Part Number | TH530 |
| Battery Cell Type | Other Than Listed |
| Others | |
| Date First Available | 2025 or September 26 |
| Product Type | Stud Finders |
