XPR3SS Automatic Over/Under Voltage and Over Load Protection (Adjustable Setting) Meter with Auto Re-Connect LED Display Standard Din-Rail Mounted Single Phase 220V, 63A (13.8kW)
- Why do you need this?- To protect your home appliance from damage due to sudden voltage and current fluctuations. Multi-Protection: -This product cover all three protection range i,e Over voltage, under voltage and over load protection with action time of 0.1 sec.
- Range: - Over voltage protection ranging 130~300V, under voltage protection ranging 80~210V and over current protection ranging 1~63A. Auto Reconnect: - In case of voltage fluctuations, the device instantly cut off the power supply. When supply is back to normal, the device automatically reconnect.

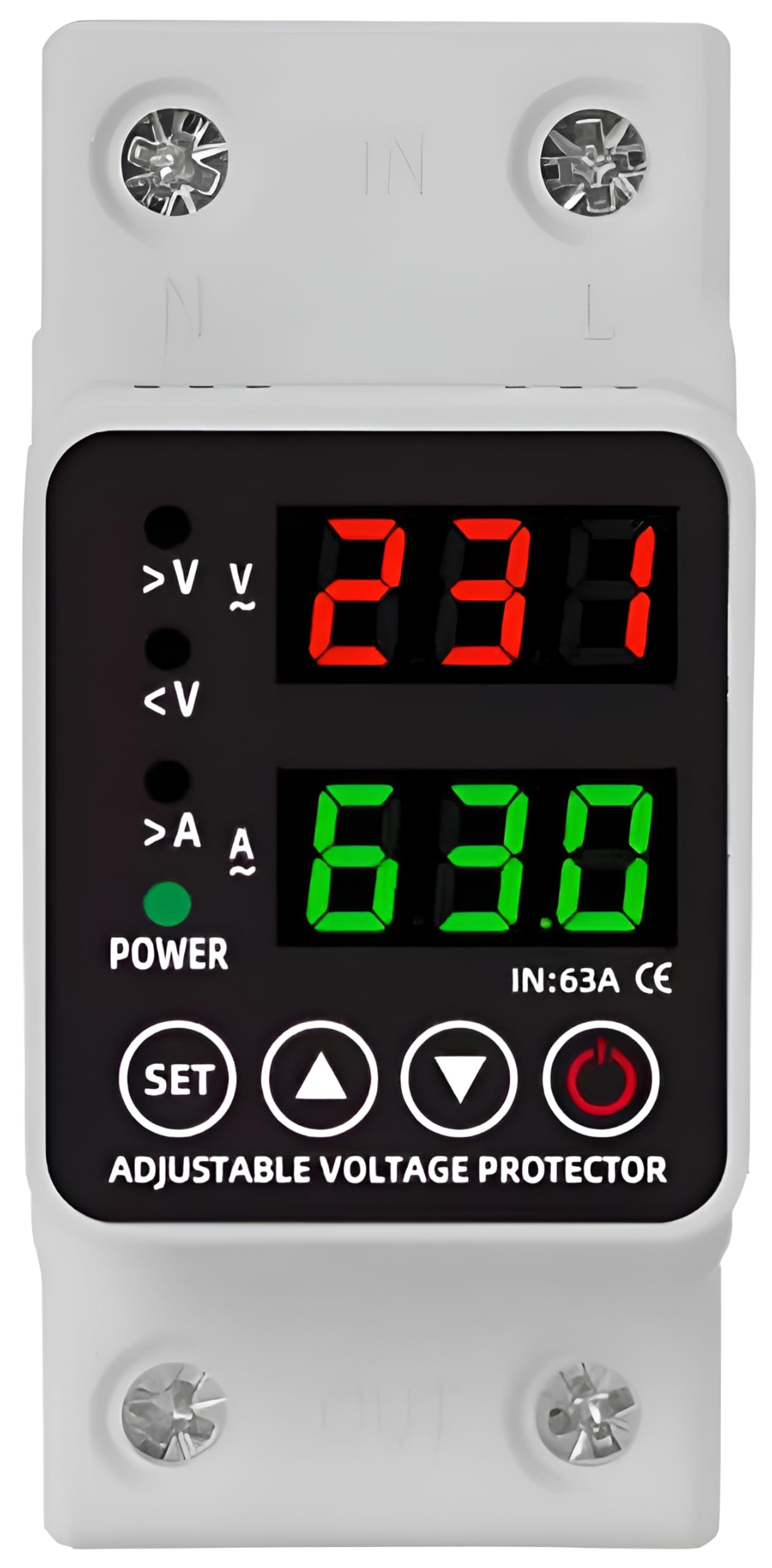

- Two separate digital LED display can display the real voltage, current independently for easier and clearer reading, can be used as a voltmeter and ammeter. The over-voltage, under-voltage and over-current values of this product can all be set up by yourself and can be adjusted on the basis of local practical condition.
- Note:- Maximum sustainable voltage of this device is 350V. In case of surge this product will destroy itself without damaging your appliances. Your appliances will safe. Compatible Wire Size: - 16 mm2 for loads up to 63A, 10 mm2 for loads up to 45A, and 6 mm2 for loads up to 35A.
-
Save 10% when you buy two or more items.
-
Get 5% off your next purchase.
-
Enjoy free delivery on orders above $200.
-
Orders are processed and shipped from Canberra
3-6 days (Domestic)
Confidence-backed purchases with 30-day return support.
AUD |
BRSROCADOINRMHI2 |
Category |
Power Accessories , Surge Protectors |
Tags |
Estimated shipping
Select a product to estimate shipping.DUAL DISPLAY: Features dual LED display for real-time monitoring of voltage and current levels.
ADJUSTABLE SETTINGS: Allows for easy adjustment to customize protection settings according to specific requirements.
INTELLIGENT PROTECTION: Provides intelligent overvoltage, undervoltage, and overcurrent protection for enhanced safety.
DIN RAIL MOUNTING: Designed for easy installation on standard din rails, suitable for home electrical systems.
PRECISE RELAY ACTION: Ensures rapid response to detected electrical anomalies, minimizing potential damage.
USER-FRIENDLY DESIGN: Simple and intuitive interface makes operation and configuration hassle-free.
VERSATILE USAGE: Ideal for protecting various home appliances, electronics, and electrical circuits.
Current : 63A
Rated Supply voltage : 80-300V
Phase : Single Phase
Current Type : AC
Rated current : 1A-63A adjustable (default 40A)

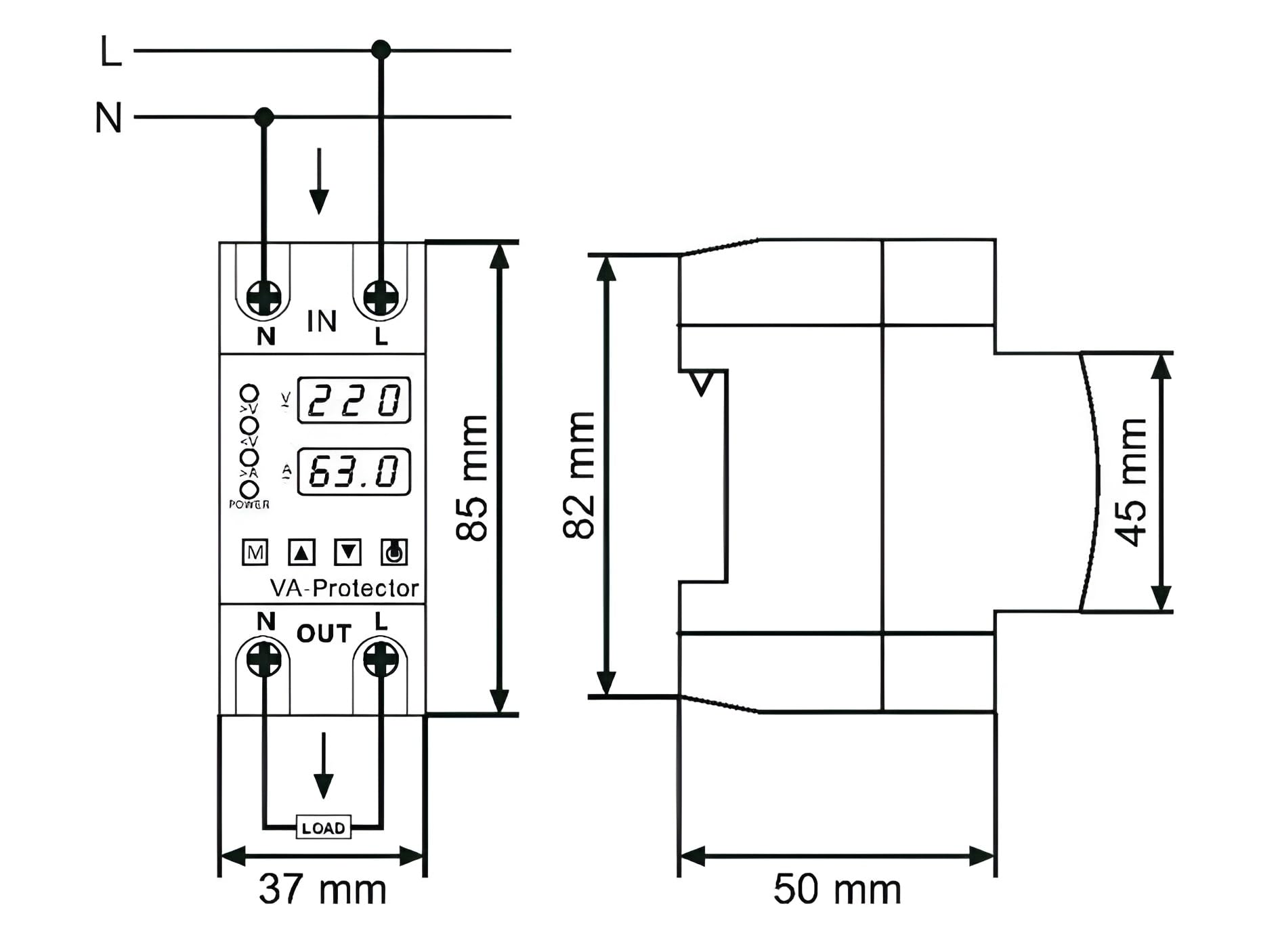

Dimensions : 51*35*60 mm
Rated Frequency : 50/60hz
High Voltage Setting Range : 130-300V
Low Voltage Setting Range : 80-210V
Max. Operating Phase Voltage : 350V
Max. Operating Current : 63A
Features:
Overvoltage Protector
Undervoltage Protector
Home Electrical Safety
LED Display Relay
Electrical Protection Device
Voltage and Current Monitor
Electrical System Protection
DIY Electrical Safety
Electrical Relay Switch
Home Circuit Protection
Electrical Parameter Monitoring
| Main Specification | |
|---|---|
| Manufacturer | Liushi Town,Yueqing City, Zhejiang, Yueqing Taixin Electric Co., Ltd. |
| Unit Count | 1.00 Count |
| Current Rating | 63 Amps |
| Brand | XPR3SS |
| Number of Items | 1 |
| Circuit Breaker Type | Standard |
| Included Components | circuit breaker |

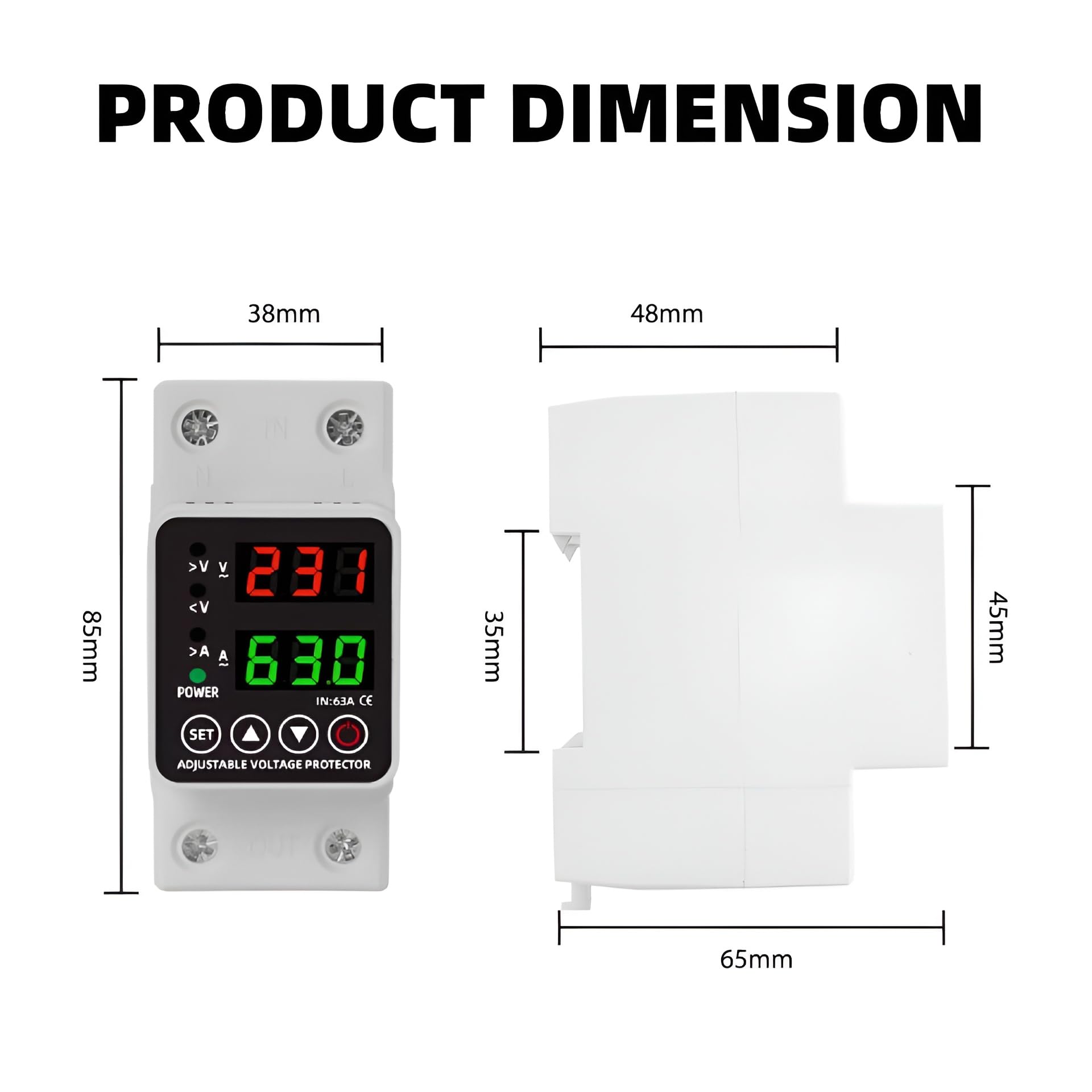

| Product Dimensions | 85D x 38W x 65H Millimeters |
| Mounting Type | Din Rail Mount |
| Item Weight | 90 Grams |
| Product information | |
| Number of Packs | 1 |
| Technical Details | |
| Part Number | JIW |
| Country of Origin | China |
| Item details | |
| Model Number | KWS302WF |
| Item Type Name | Volt Meter |
| Measurements | |
| Item Dimensions D x W x H | 85D x 38W x 65H Millimeters |
| Others | |
| Packer Contact Information | BENGALURU or XPR3SS |
| Importer Contact Information | BENGALURU or XPR3SS |
| Product Type | Volt Meter |
| Manufacturer Contact Information | Liushi Town,Yueqing City, Zhejiang |
