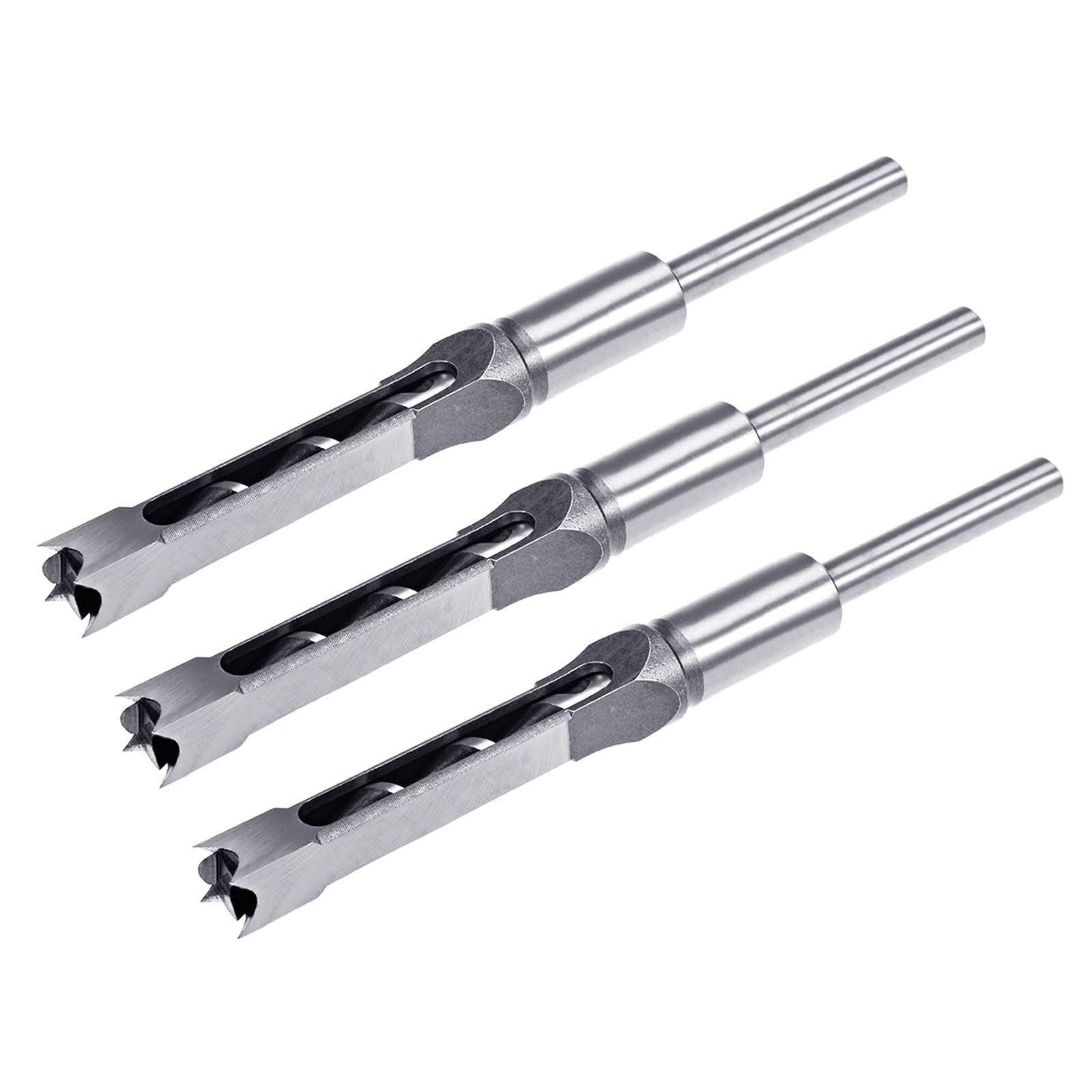

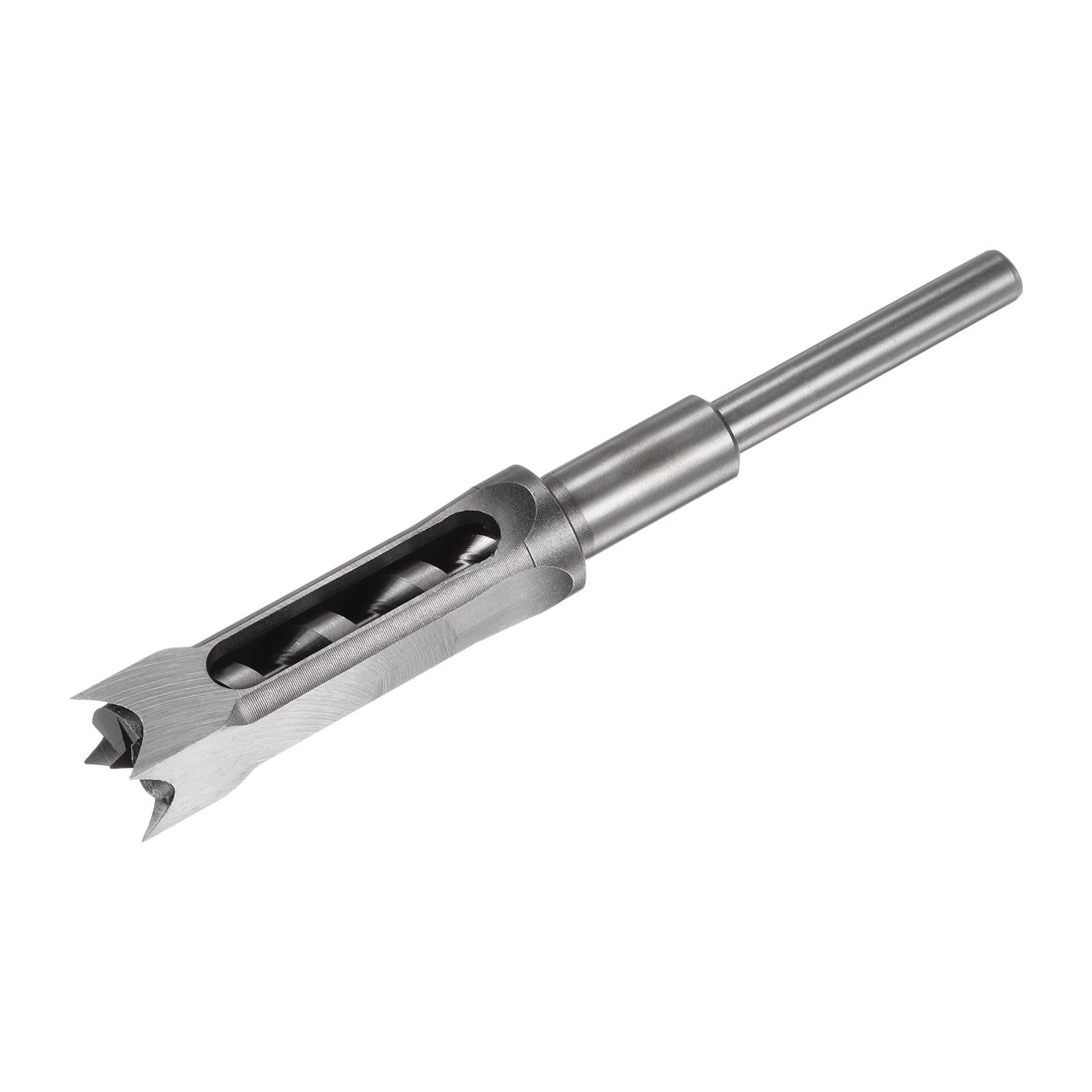

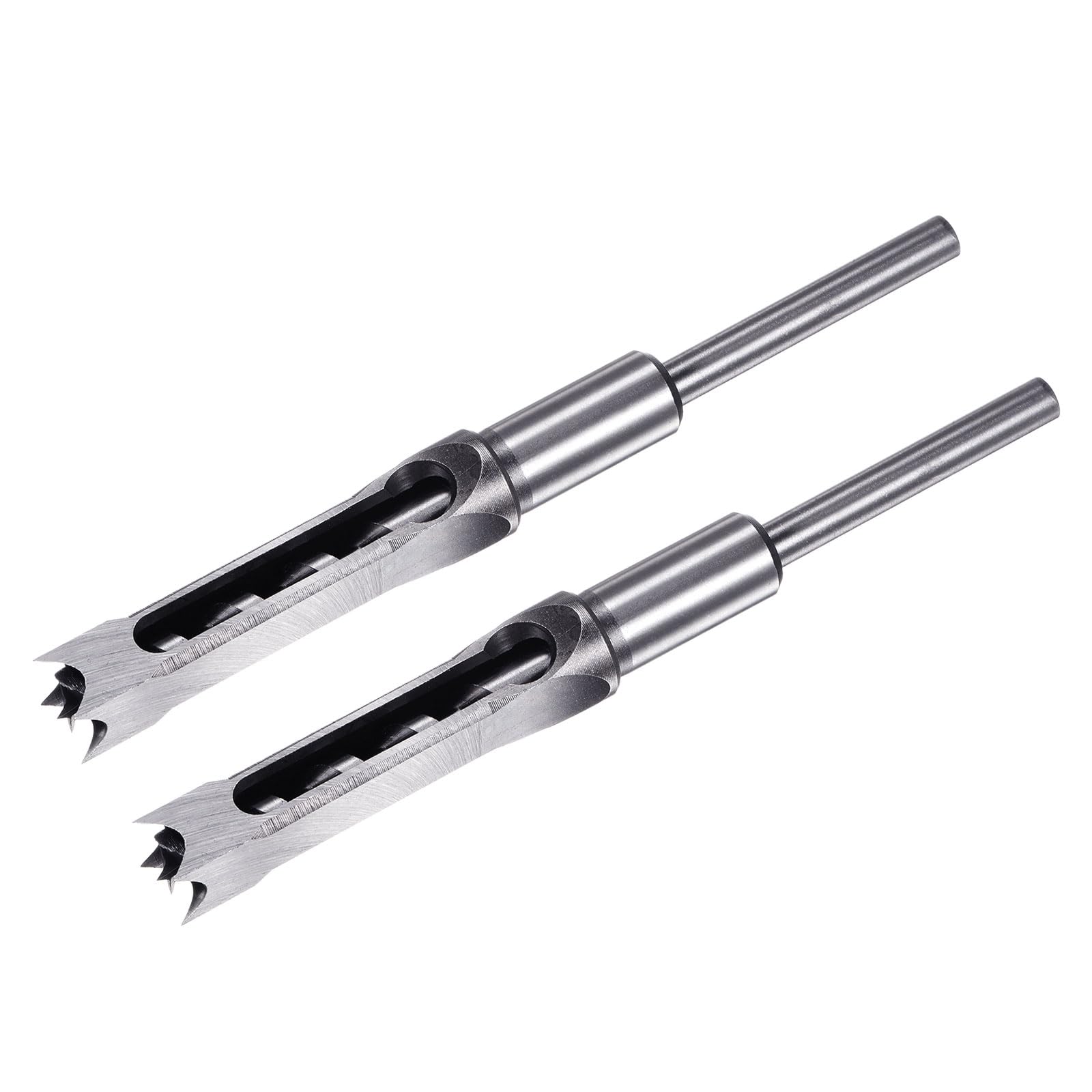

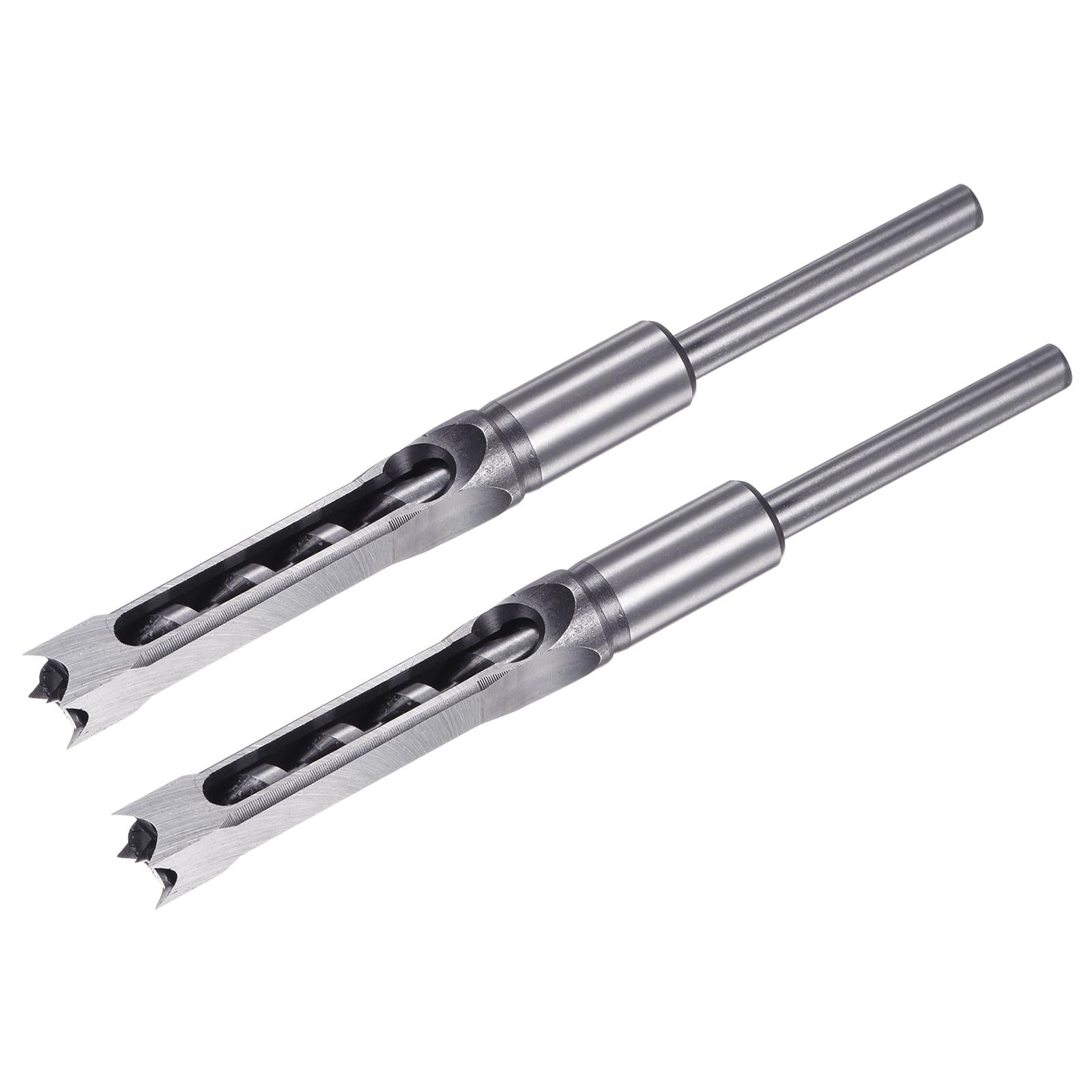

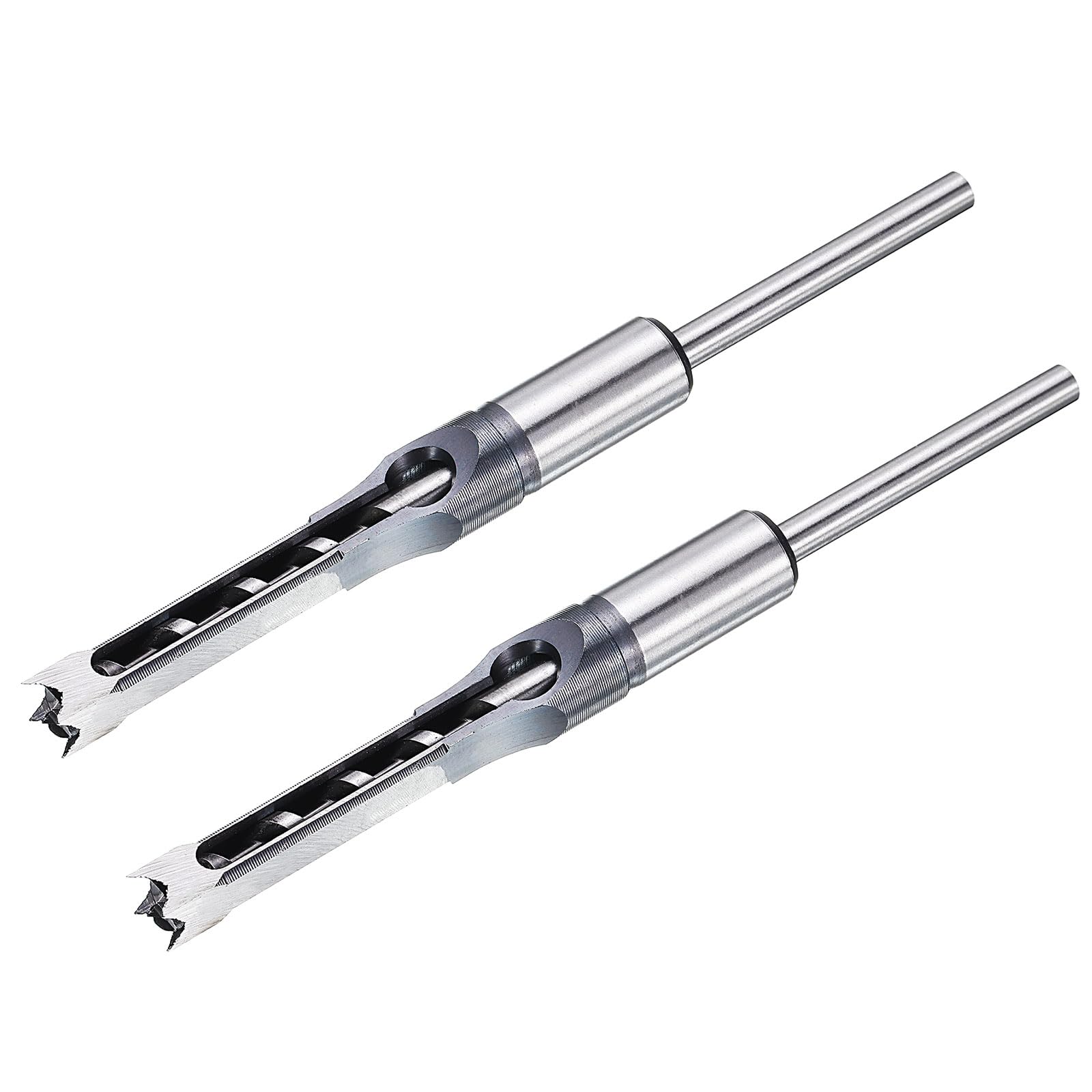

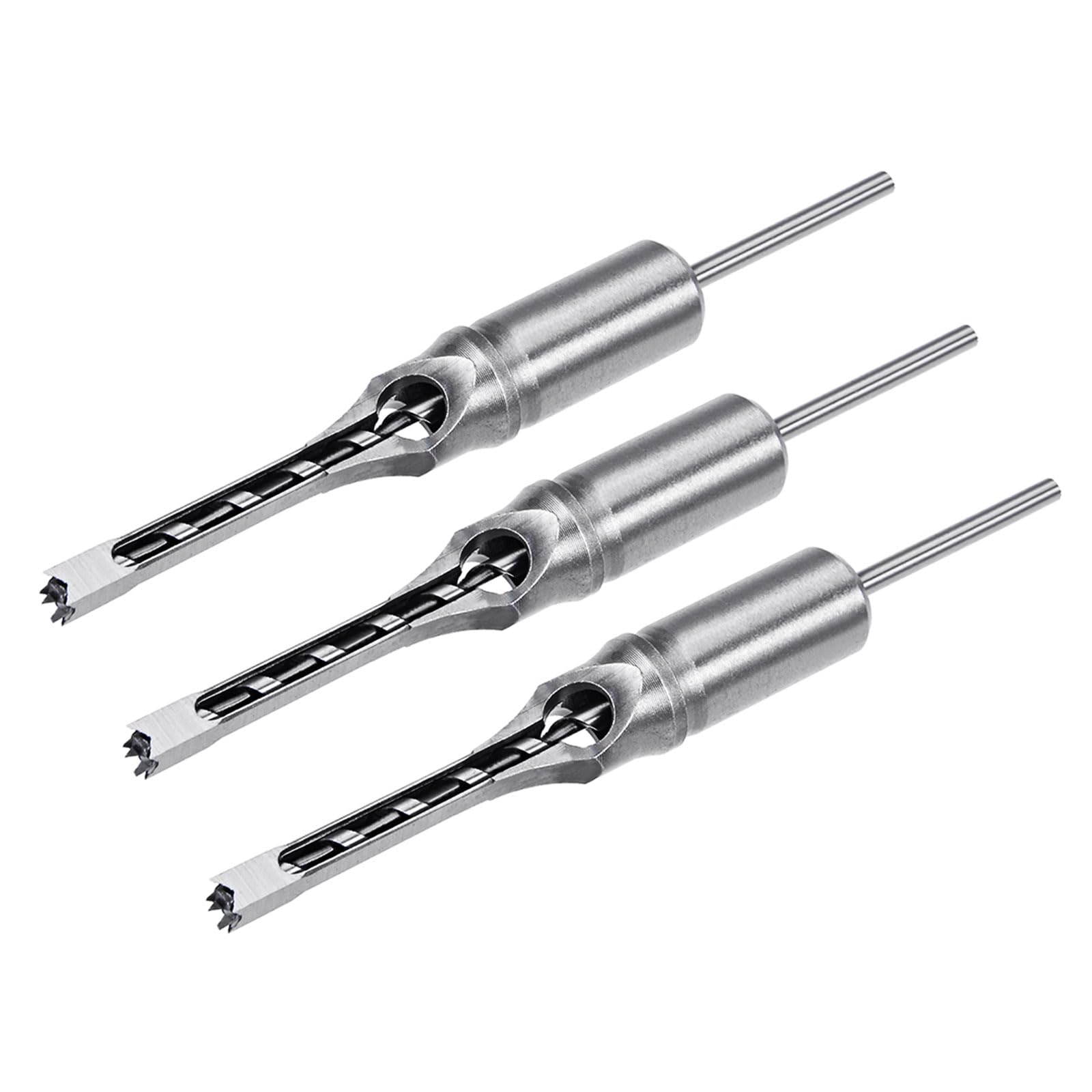

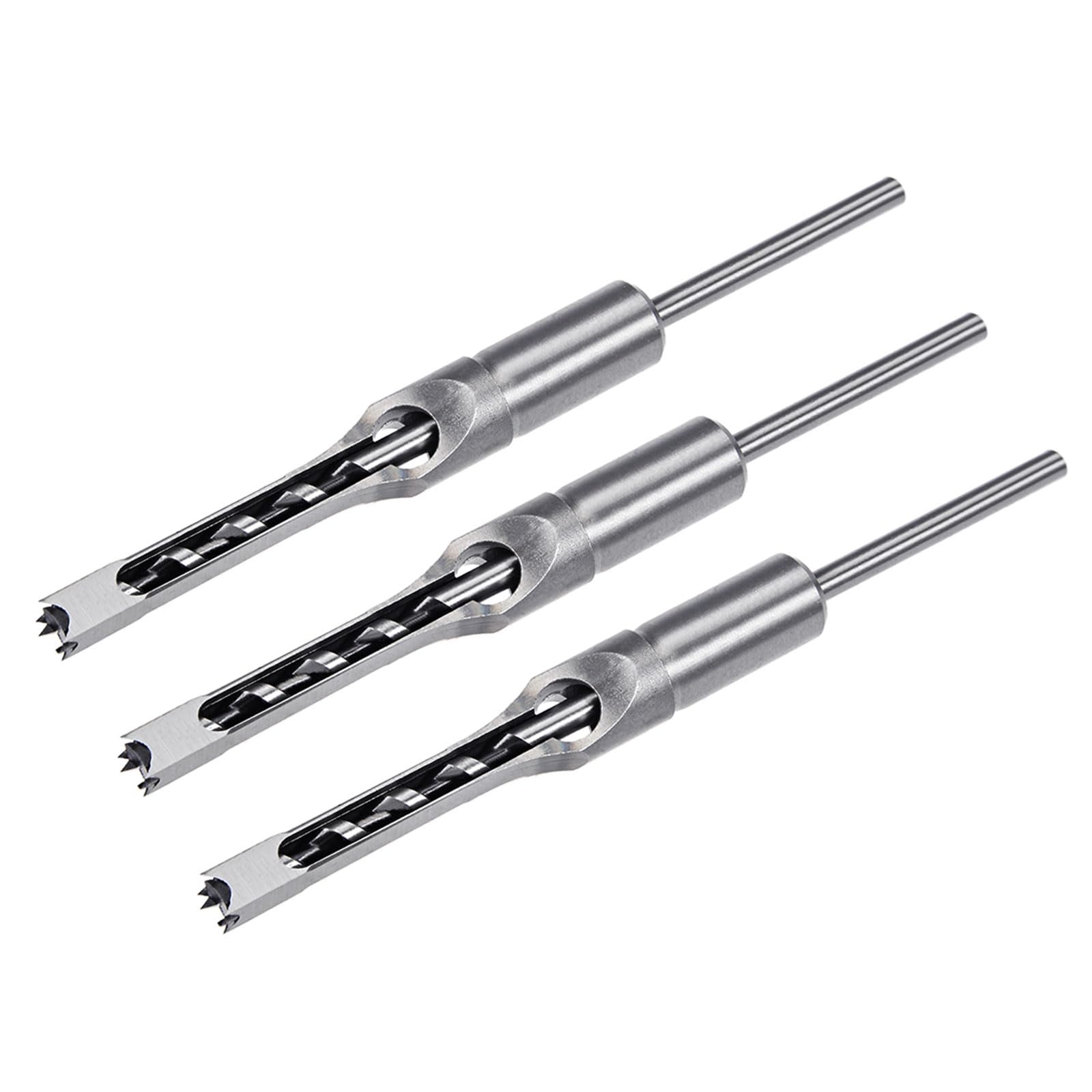

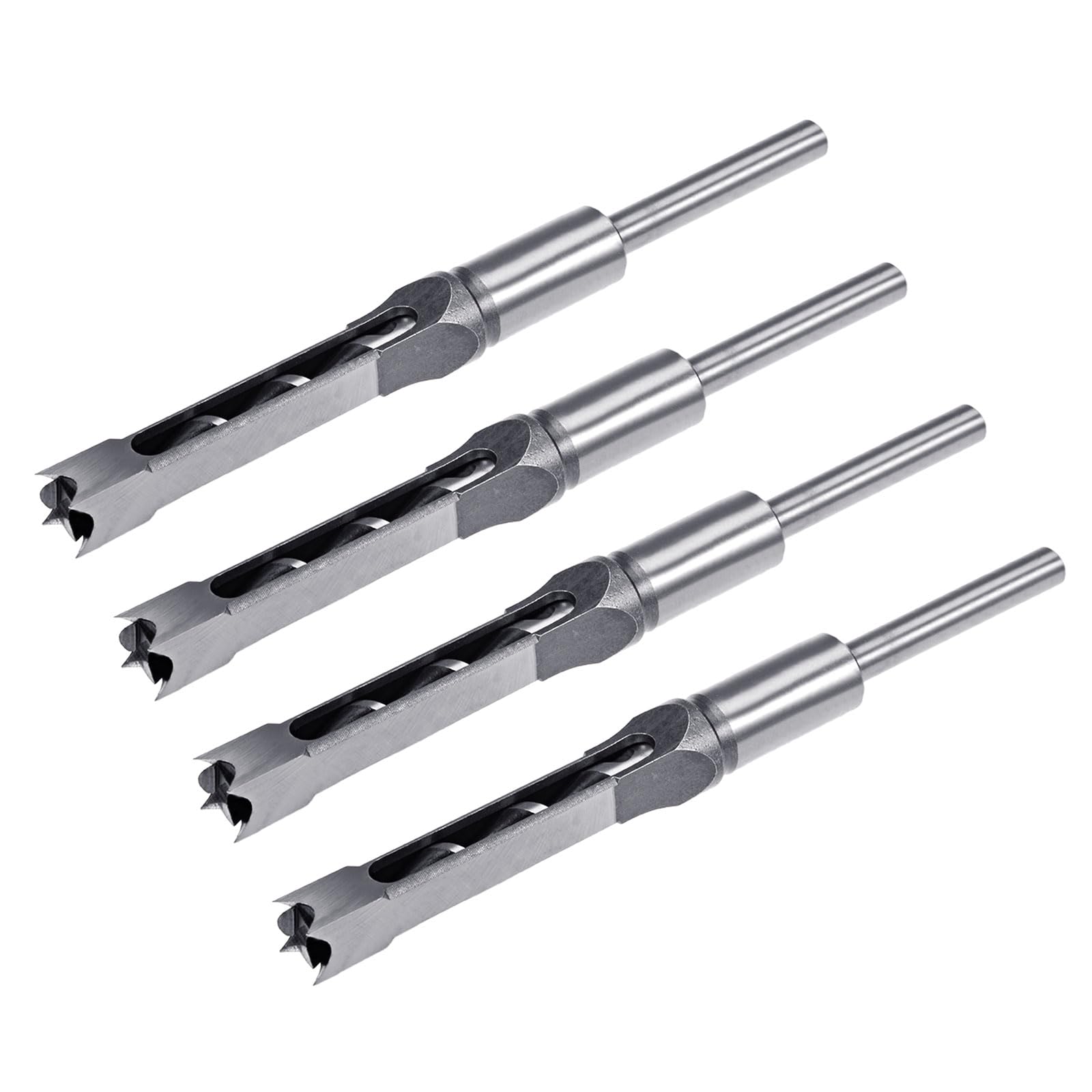

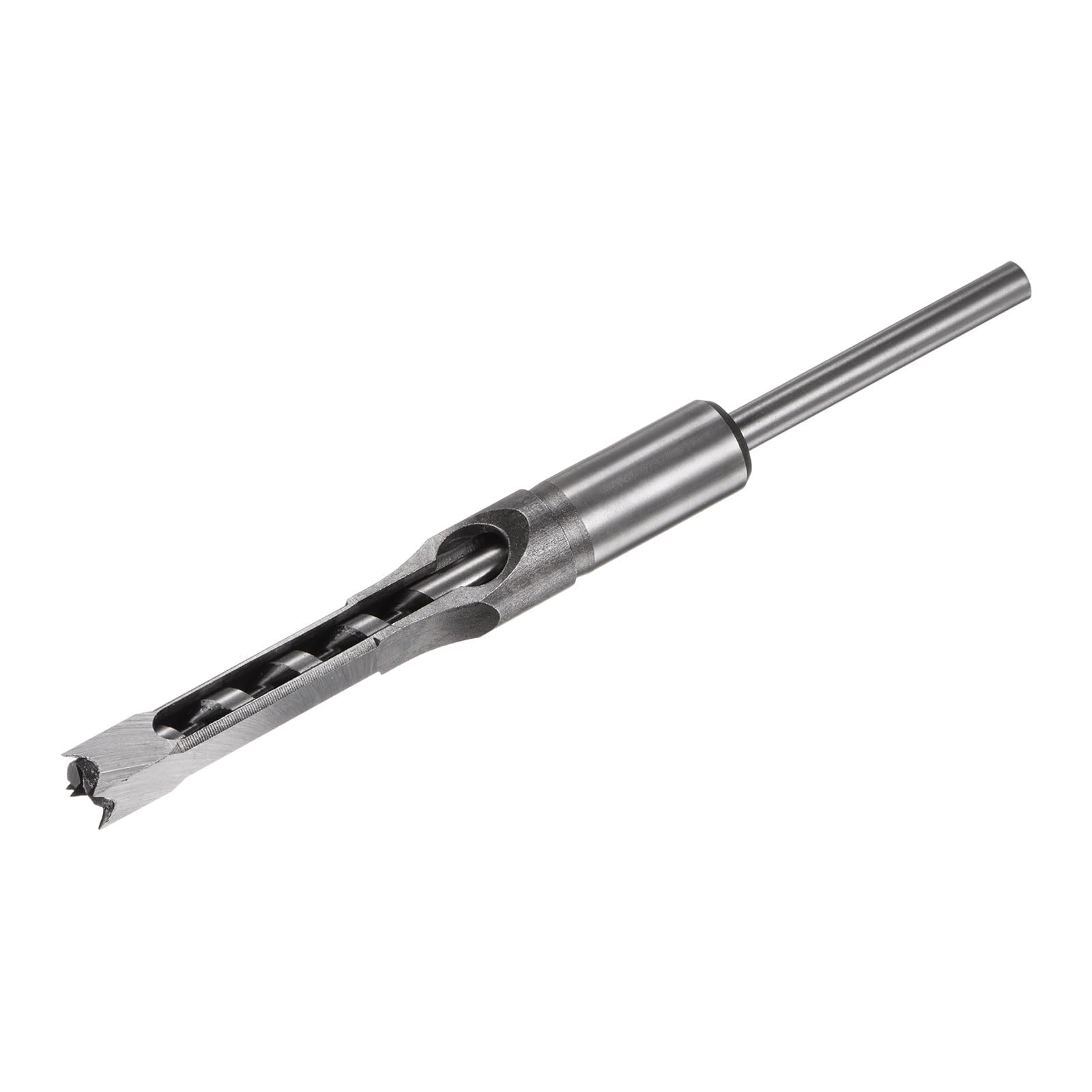

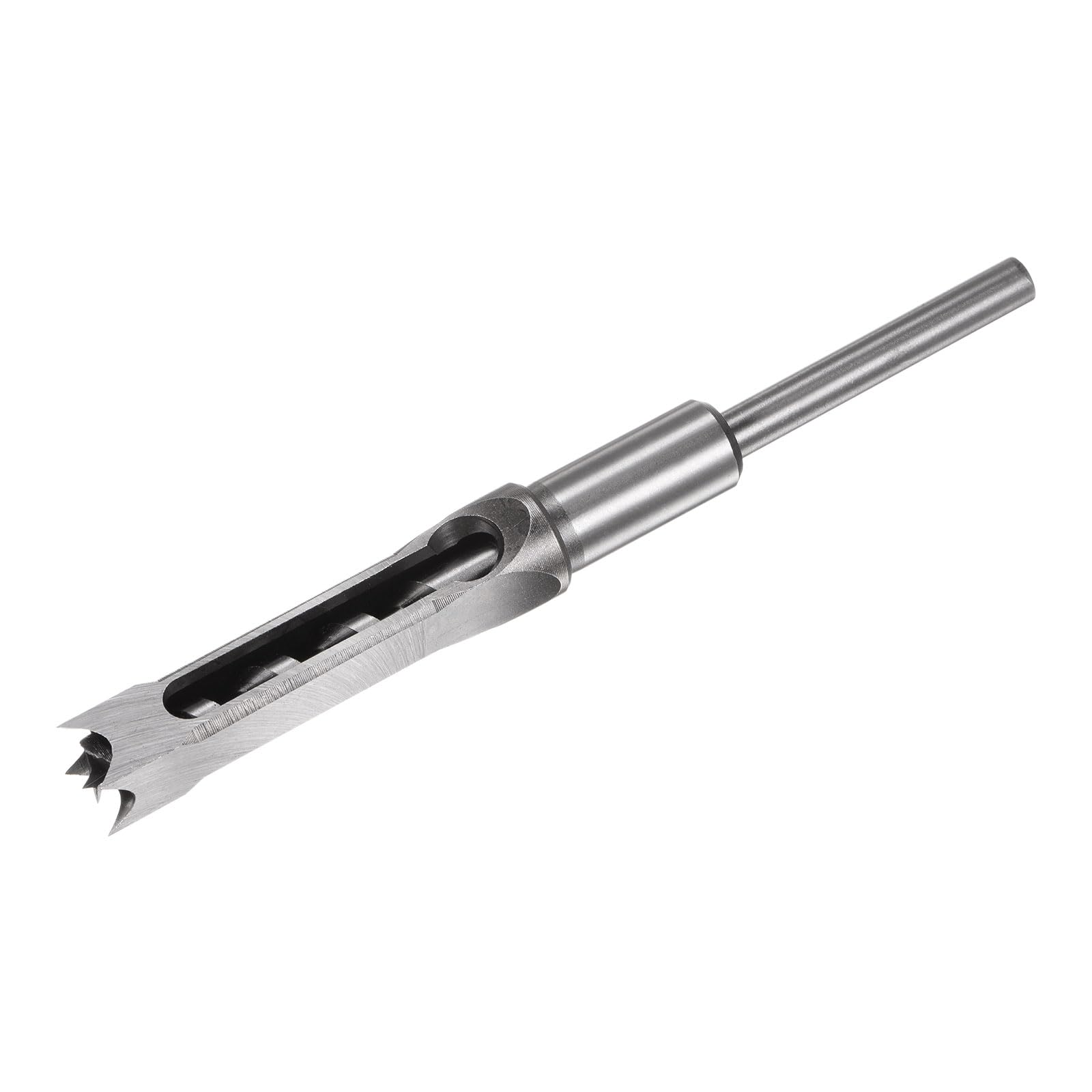

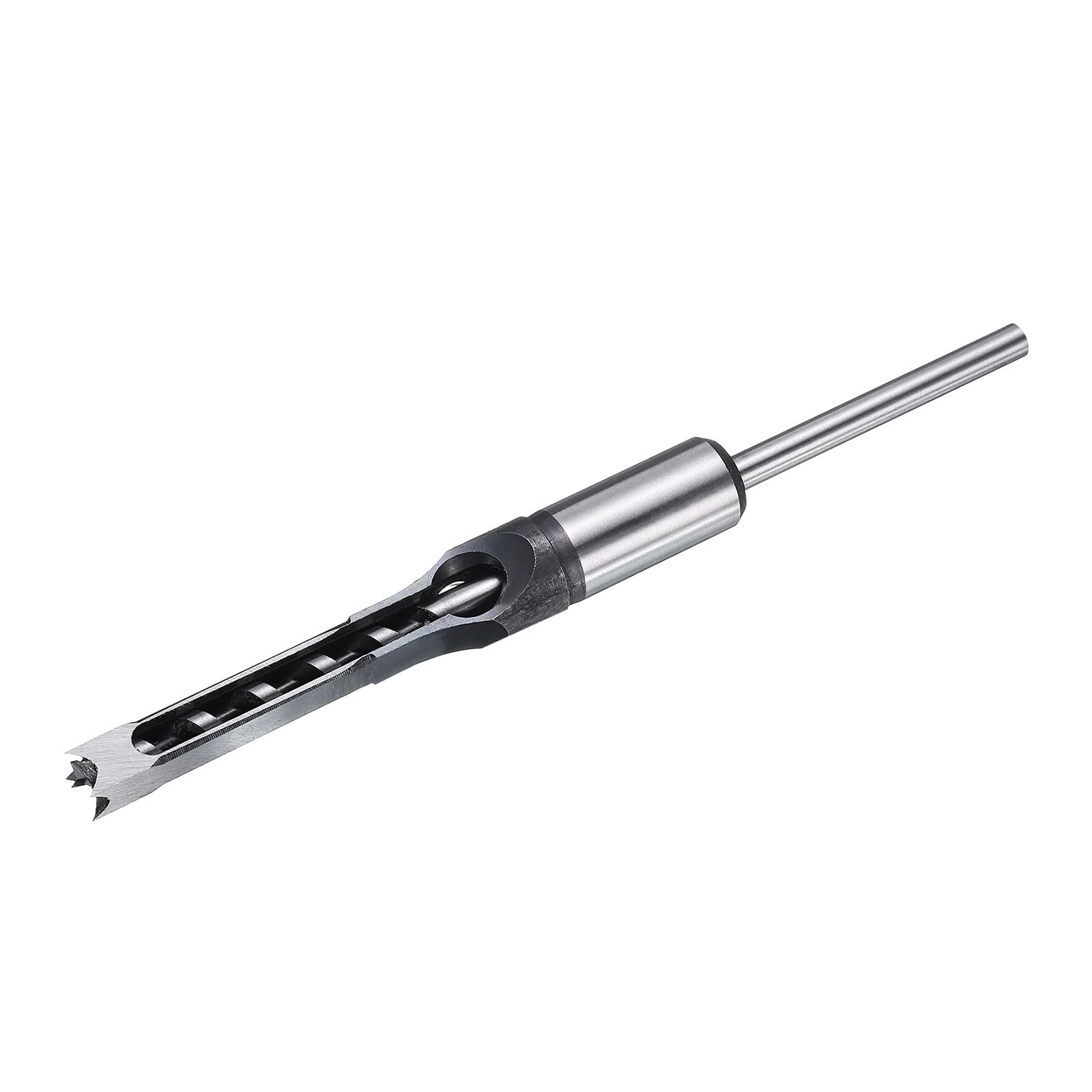

uxcell Square Hole Drill Bit, 1" High-Carbon Steel Hollow Chisel Mortise Power Tool for Woodworking
- 【SIZE】1" (25mm) square chisel width, 75mm cutting depth, 210mm total length.
- 【TIP AND EDGE】The best-designed drilling point tip and 4 cutting corners enable fast drilling with small opening resistance, and penetrating into working pieces of wood in precise opening size very smoothly and fast.
- 【MATERIAL】Made of High-carbon steel, through heat processing, with high hardness (48-50 HRC) drill bits, and sharp-edged square chisel, durable and lasts long.
- 【ADVANTAGE】With long drill core and square chisel, easy to lock the hole on the wood, can reduce labor intensity of construction workers, speed up the construction speed, reduce construction costs.
- 【OPERATION】Used with mortise and tenon machine with double effect, and electric drill, hammer and other tools is required for punching square hole in wood.
-
Save 10% when you buy two or more items.
-
Get 5% off your next purchase.
-
Enjoy free delivery on orders above $200.
-
Orders are processed and shipped from Canberra
3-6 days (Domestic)
Confidence-backed purchases with 30-day return support.
AUD |
BRSROGD3AUHBQAYU |
Category |
Power & Hand Tools , Power Tool Parts & Accessories , Power Drill Parts & Accessories , Drill Bits , Boring Drill Bits |
Tags |
Estimated shipping
Select a product to estimate shipping.Features:
It will get double effect by matched use with mortise and tenon machine.The square hole punching needs to use electric drill, hammer and other tools.
Reduce labor intensity of construction workers, speed up the construction speed, reduce construction costs for construction, installation, renovation, decoration industries.

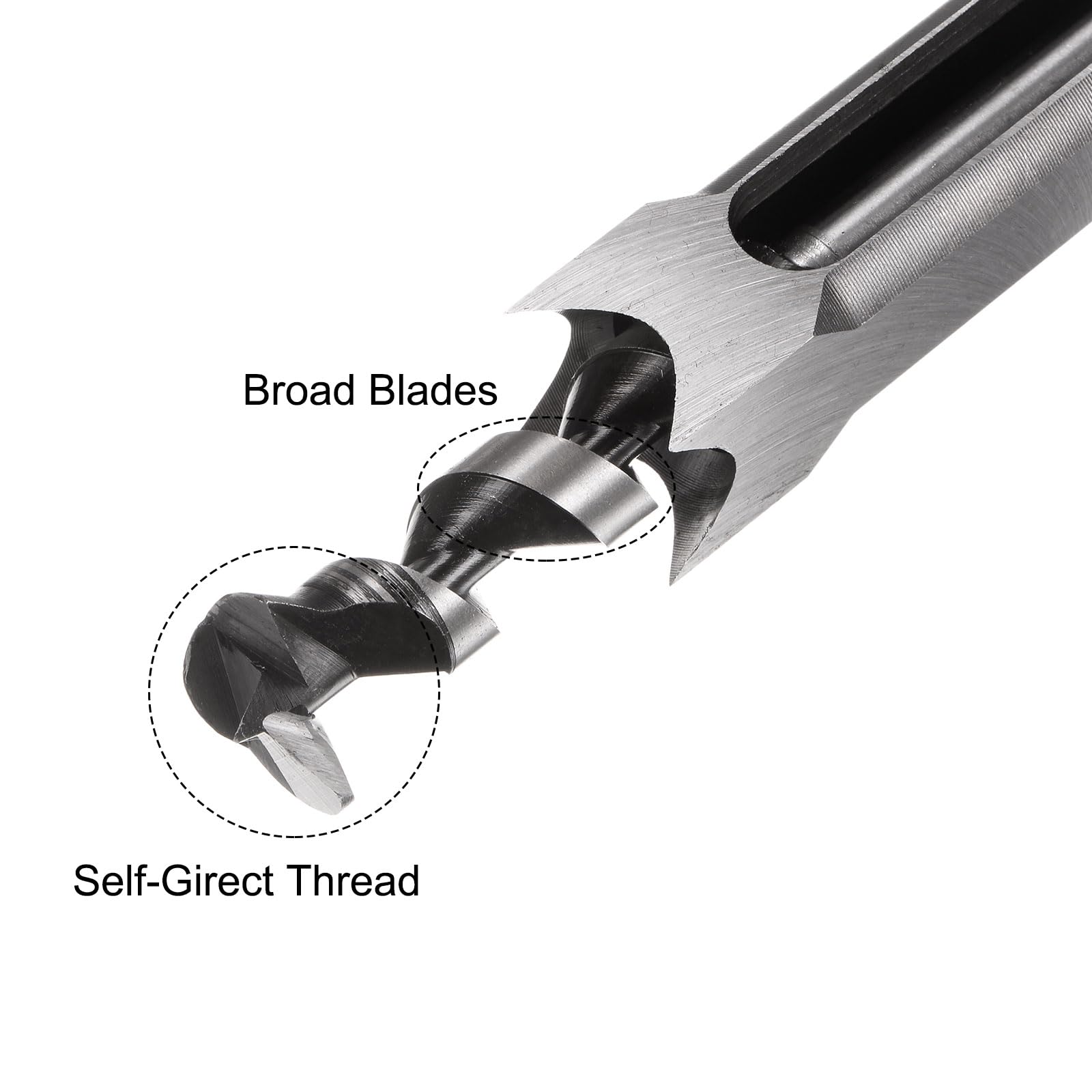

The square chisel mortiser combines the cutting of a four-sided chisel with the action of a drill bit in the center. The bit clears out most of the material needs to be removed and the chisel ensures the edges are straight and clean.
Great for drilling square holes in wood with a mortising machine or a mortising attachment. Fits all mortising machines and drill press attachments. Square hole drill is mainly used for woodworking aspects.
Specifications:
Product Name: Square Chisel Mortiser
Weight: 437g
Material: High Carbon Steel
Chisel Side Width: 25mm / 1 inch
Chisel Depth: 75mm / 3 inch
Holder Diameter: 19mm / 0.7 inch
Shank Diameter: 12.5mm / 0.49 inch
Total Length: 210mm / 8.3 inch
Package Contents:
1 x Square Chisel Bit
1 x Plastic Case
How to Use:
A. Mark the position of the hole and use the hole drill to make a hole.
B. After removing the core, use a square hole jacket to align the position of the hole.
C. the square hole continuously and slowly and you can get the square hole.
NOTE:
1.Installed in the square hole machine directly, supporting the use, you can drill a square hole (especially recommended).
2.If bench drills or electric drills are used, they must be strictly executed according to the operation method. Otherwise they can only be processed into round holes and cannot be processed into square holes.
| Main Specification | |
|---|---|
| Manufacturer | Uxcell |
| Unit Count | 1 Count |
| Surface Recommendation | Wood |
| Cutting Diameter | 25 millimeters |
| Shank Type | Square |
| Tool Flute Type | Straight |
| Brand | Uxcell |
| Number of Pieces | 1 |
| Material | High Carbon Steel |
| Finish Type | Uncoated |
| Product information | |
| Number of Packs | 1 |
| Technical Details | |
| Part Number | a23080500ux0415 |
| Model | a23080500ux0415 |
| Material Type | High Carbon Steel |
| Number of Flutes | 2 |
| Style | |
| Finish Types | Uncoated |
| Others | |
| Product Type | Boring Drill Bits |
| Minimum Bore Diameter | 25 millimeters |
