Outlet Box Kit, 2x4 Metal Electrical Box, 20 Amp Outlet

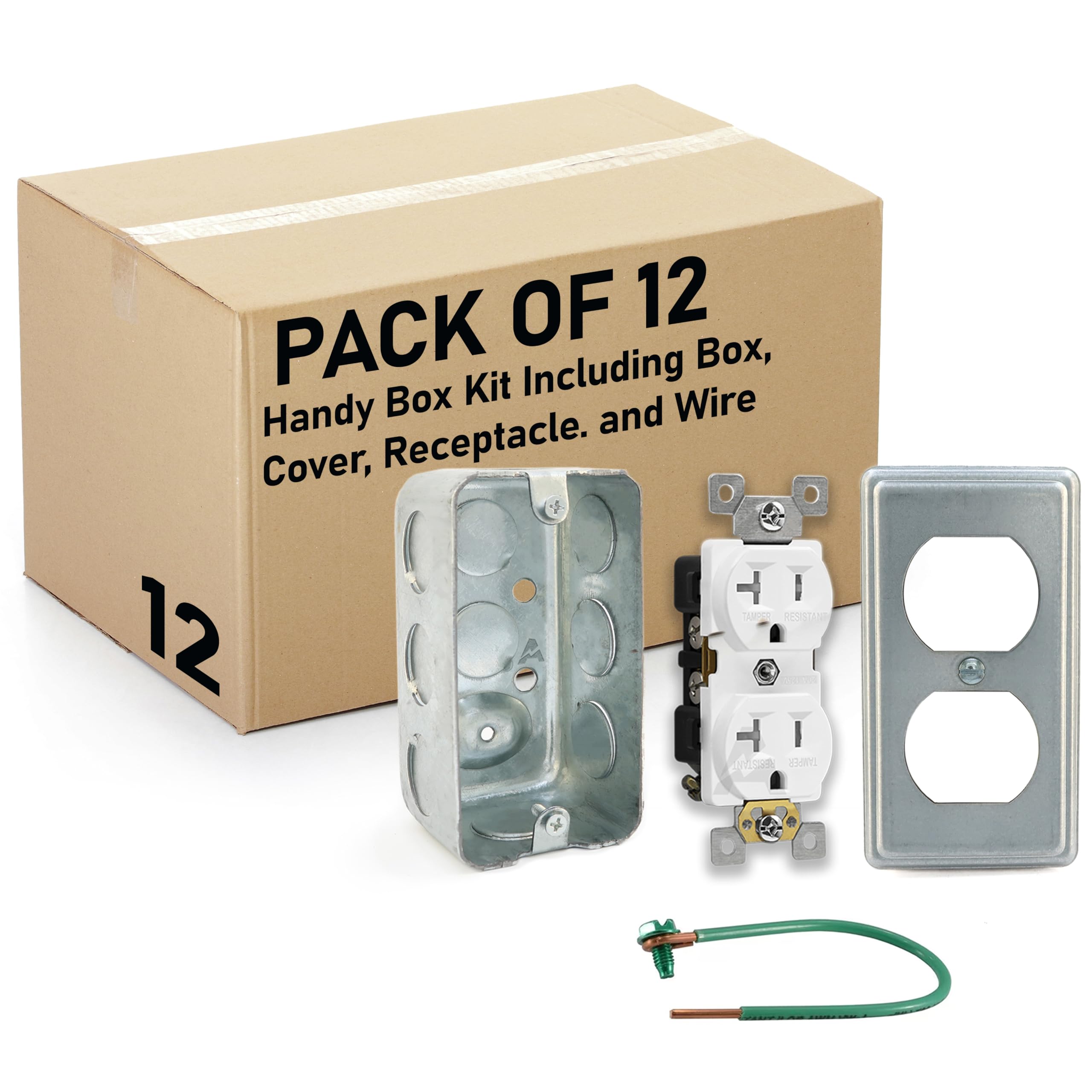

- COMPLETE 20A OUTLET KIT – Includes a 2x4" galvanized steel utility box, 20 amp tamper-resistant duplex receptacle, metal duplex cover, and copper grounding pigtail with screw.
- 13 CU. IN. METAL UTILITY BOX – 1-gang electrical box provides 13 cubic inches of interior capacity with a 1-7/8" depth for dependable exposed-work and surface-mounted installations.
- 20A TAMPER-RESISTANT RECEPTACLE – Rated for 20A, 125V, 2-pole, 3-wire service and built with impact-resistant material, a commercial-grade full saddle yoke, and self-grounding construction.
- TEN 1/2" KNOCKOUTS – Includes six side knockouts, two end knockouts, and two top/bottom knockouts for flexible cable or conduit routing.
- READY FOR EXPOSED-WORK INSTALLATIONS – Metal box and duplex cover provide a durable surface-mount solution, while the raised ground provision and included grounding components help simplify installation.
-
Save 10% when you buy two or more items.
-
Get 5% off your next purchase.
-
Enjoy free delivery on orders above $200.
-
Orders are processed and shipped from Canberra
3-6 days (Domestic)
Confidence-backed purchases with 30-day return support.
AUD |
BRSROZT6AQMA2FIZ |
Category |
Electrical , Electrical Boxes, Conduits & Fittings , Outlet Boxes |
Tags |
Estimated shipping
Select a product to estimate shipping.AP-15202
The everything-you-need-in-one-box solution!
Complete Kit:
Airmont Products Handy Box and Receptacle Combination Pack
With Airmont Products Handy Box and Receptacle Combination Pack, you get everything you need to install a duplex receptacle in a utility size electrical box. This box is great for exposed work applications.
The pack includes the following components:
Utility size electrical box
Duplex receptacle outlet
Duplex receptacle utility size cover
Green ground screw and pigtail wire
Components:
Box Features
This Utility size electric box is designed to enclose electrical wire connections, receptacles, or switches. Constructed using the drawn method, this box is also ideal for exposed work applications. This box has ten 1/2'' knockouts. (There are six side knockouts, two end knockouts, and 2 top/bottom knockouts.)
Utility (handy) size: 4''x2''
Ten 1/2'' knockouts
Raised Ground Provision
Hardware included
Galvanized Steel
Outlet Features
This 20 amp duplex receptacle outlet is crafted from impact proof material and has a commercial grade back support. It is tamper resistant and comes with removable plaster ears.
20 Amp, 125V
2-Pole, 3-wire
Commercial grade
Tamper resistant
Plaster ears
Color: white
Cover Features
This listing includes a 2x4” utility size duplex receptacle cover. Designed for use with duplex receptacle outlets and utility size electrical boxes.
Style: duplex receptacle
Rounded Corners
Ground Features
Conveniently included in the package, this copper ground screw comes with a copper pigtail wire that is approximately 6-1/2 inches long. The wire and screw are green to indicate ground.
Solid copper wire
Green insulation
6-1/2 inches long, approx.
5/8'' stripped at the end
10/32 x 3/8 green copper screw
Product details
| Main Specification | |
|---|---|
| Included Components | Cover or Complete Outlet Kit - Box or Receptacle and Ground |
| Material | Metal or complete galvanized steel electrical outlet kit or pre-wired captive green grounding wire kit or ready-to-install 2x4 utility box set See more |
| Style | electrical junction box with cover or complete duplex receptacle kit or ready to install |
| Manufacturer | Airmont Products |
| Brand | Airmont Products |
| Number of Items | 1 |
| Capacity | 13 Cubic Inches |
| Product Dimensions | 1.88"D x 2"W x 1.88"H |
| Colour | silver |
| Finish Type | Unfinished |
| Installation Type | Screw-In |
| Technical Details | |
| Part Number | AP-1520X |
| Item details | |
| Model Number | AP-15205 |
| Measurements | |
| Item Dimensions D x W x H | 1.88"D x 2"W x 1.88"H |
| Others | |
| Item Highlight | Complete surface mount kit: galvanized junction box or duplex receptacle or cover or ground wire. Ten 1/2 in knockouts. |
| Product Type | Outlet Boxes |
