SI FANG Turning Carbide Indexable Inserts for mini Pneumatic Chamfering Machine, Tungsten Steel Replaceable Blade Lather Turning Tool Bit, Metal Cutting and Chamfering,10 Pieces in A Box

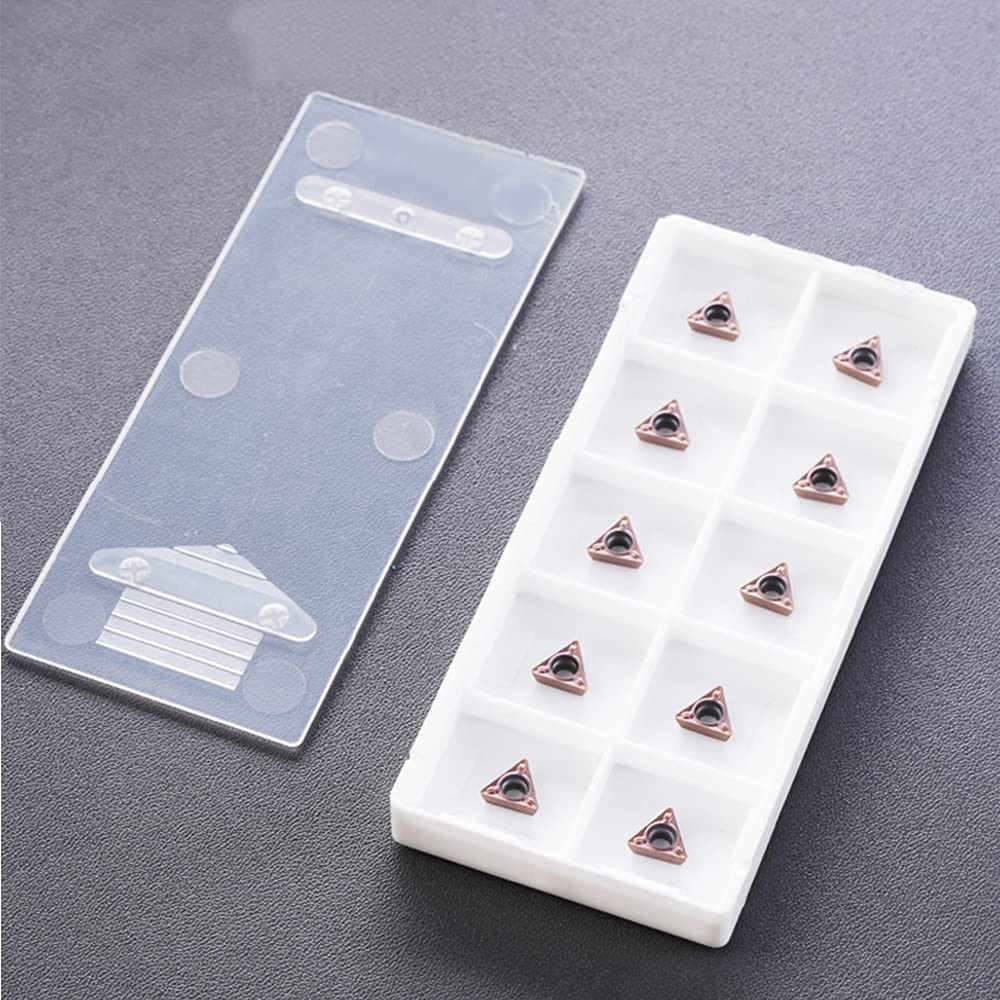

- Package Include: 10 Pieces Replaceable triangular cutter blades and a box. Size: 1mm aperture, length 8mm, height 7mm, thickness 2.4mm.
- Professional Processing: Designed for Steel, cast iron and non-ferrous materials. Sharp tungsten steel double cutter head, adopts triangular tungsten steel cutter head to make cutting sharper. The blade is of high quality and more durable than ordinary blades. The high-precision heat treatment blade has better use effect, and the deburring and chamfering effect is smoother.
- Easy to install, install the blade on the chamfering machine quickly and easily. Loosen the triangular blade screw with a thicker Torx wrench and re-fix the screw after replacing the blade with a new one.
- Widely Appplication: Used for turning and finishing on a wide range of materials. It can be chamfered in the narrowest and shallow space, suitable for various angles, such as straight-edge straight chamfering, inner and outer round hole chamfering, irregular chamfering, and keyway multilateral chamfering. Used for deburring and chamfering the R side of metal trimming arc corners.
- After-sales service: We guarantee to provide you with the most satisfactory shopping service. Whether you have any questions about our products, please contact our customer service department. We will try our best to help you solve all the problems
-
Save 10% when you buy two or more items.
-
Get 5% off your next purchase.
-
Enjoy free delivery on orders above $200.
-
Orders are processed and shipped from Canberra
3-6 days (Domestic)
Confidence-backed purchases with 30-day return support.
AUD |
BRSW2ZINAVYRQCLO |
Category |
Cutting Tools , Deburring Cutters |
Tags |
Estimated shipping
Select a product to estimate shipping.SI FANG Mini Chamfering Machine Manual Linear Chamfering Tool
This mini chamfering machine kit includes additional replacement bearings and blades to make it more convenient when you need to replace blades. The upgraded version of the pneumatic chamfer tool, the new design adopts a new chrome-plated all-aluminum shell with high-quality bearings, and is equipped with high-precision heat-treated blades for better use and smoother deburring and chamfering.
Chamfering Machine Can Pour Shapes
The maximum processing C Angle of this chamfering machine is C0.1-2 (The best effect is C1, C1 to C2 is best to be chamfered in two times, so the effect is better.)
C-blades: Suitable for chamfering steel materials, such as all kinds of steel parts, A3, 45#, carbon steel, P20, stainless steel and other metals. Not suitable for processing wood and non-ferrous metals such as copper and aluminum.
Adjusting the scale wheel can adjust the size of the bevel of the cut, but not the angle.
The chamfer size can be adjusted at will: Loosen the 2 screws of the black gear plate with a thinner Allen key, twist the black gear plate left and right, adjust the chamfer size, and fix the 2 screws back to the original position
Usage and Maintenance Tips
1. Before using the new machine, please inject pneumatic tool oil and inject about 4C.C into the air inlet. After continuous use for about 3 hours, about 4C.C is also injected into the air inlet.
2. After injecting pneumatic tool oil, let the machine idling for about ten seconds (do not operate), and let the internal parts of the grinder be lubricated as a whole before proceeding.
3. It is an air compressor (air pump) for mechanical use. The output of the air compressor is about 6~8kg. Generally, most of the compressed gas of a traditional air compressor contains water, and the piston of the air compressor brings out a small part of the lubricating oil. If the oil-water separator is not used, water and oil and gas will enter the inside of the machine for a long time. The occurrence of adhesion slows down the rotation of the machine, resulting in insufficient speed and torque. In this way, the pneumatic tool oil needs to be input into the air inlet, and the machine can be used normally after idling for about ten seconds.

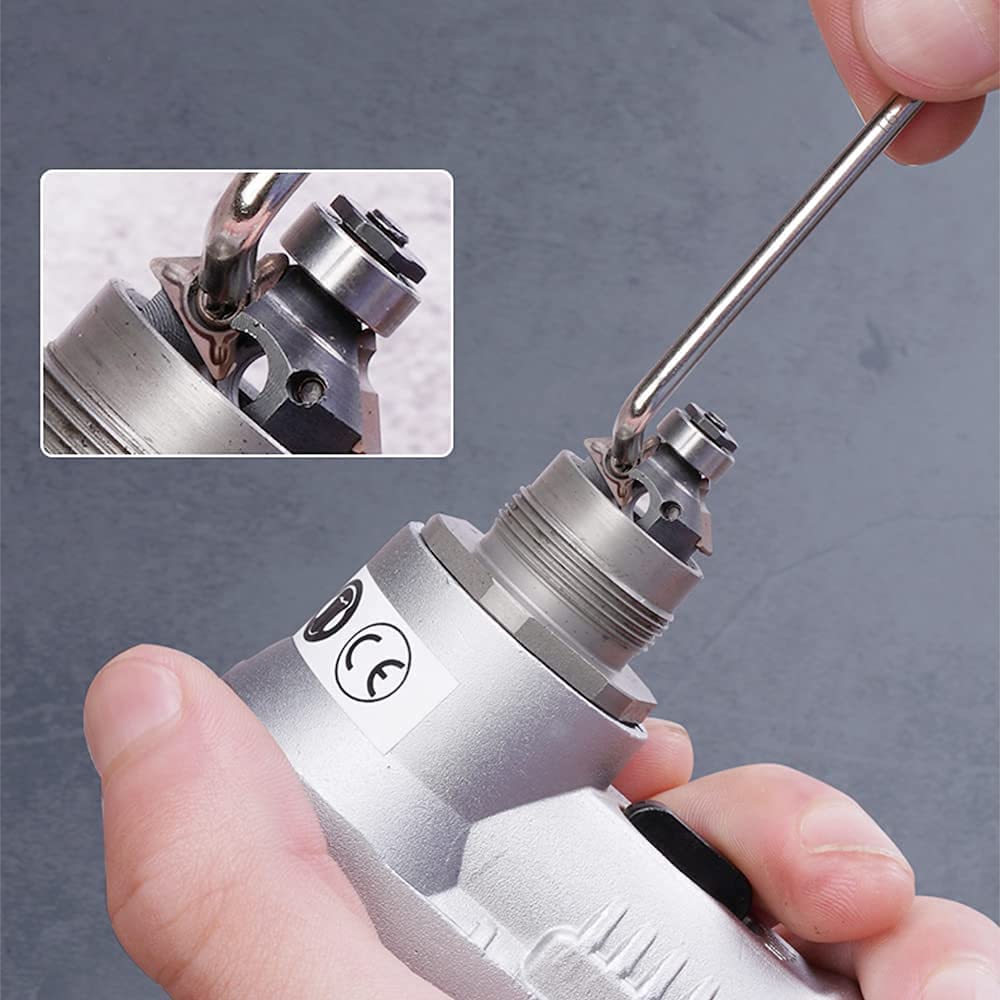

Change blade operation: Loosen the triangle blade screw with a thicker Torx wrench, replace the blade with a new one, and fix the screw again.
1. Use a finer wrench card on the hexagon of the baffle
2. Unscrew the screw, remove the lower baffles and screws
3. Remove the old blade, and replace it with a new one.
It can be chamfered in the narrowest and shallowest space, suitable for various angles, such as straight edge straight chamfering, inner and outer round hole chamfering, Irregular chamfering, multilateral chamfering of the keyway. Used for deburring and chamfering the R side of metal trimming arc corners.
Product details
| Main Specification | |
|---|---|
| Manufacturer | SHUQIU |
| Unit Count | 10 Count |
| Item dimensions L x W x H | 0.31"L x 0.28"H |
| Brand | SI FANG |
| Number of Items | 10 |
| Horsepower | 1 hp |
| Power Source | Air Powered |
| Product Dimensions | 0.31"L x 0.28"H |
| Material | Metal |
| Colour | silver |
| Style | 10Pcs Replaceable Blades |
| Item Weight | 20 g |
| Technical Details | |
| Manufacturer Part Number | sfjsb00182-1_5162382srp |
| Material Type | Metal |
| Item details | |
| Model Number | sfjsb00182-1_5162382srp |
| Style | |
| Style Name | 10Pcs Replaceable Blades |
| Others | |
| Product Type | Deburring Cutters |
