Hiearcool USB C Docking Station, 11-in-1 Dock, HDMI, VGA, Ethernet, Grey
- Industry-Leading Triple Display Dock: Supports triple display setup with HDMI, VGA, and laptop screen working together. Enables mirror, extend, or video wall modes for efficient multitasking and productivity.
- 4K HDMI + 1080p VGA Output: HDMI supports up to 3840×2160 @30Hz, while VGA supports up to 1920×1080 @60Hz. External displays run at their supported resolutions for stable dual-monitor use.

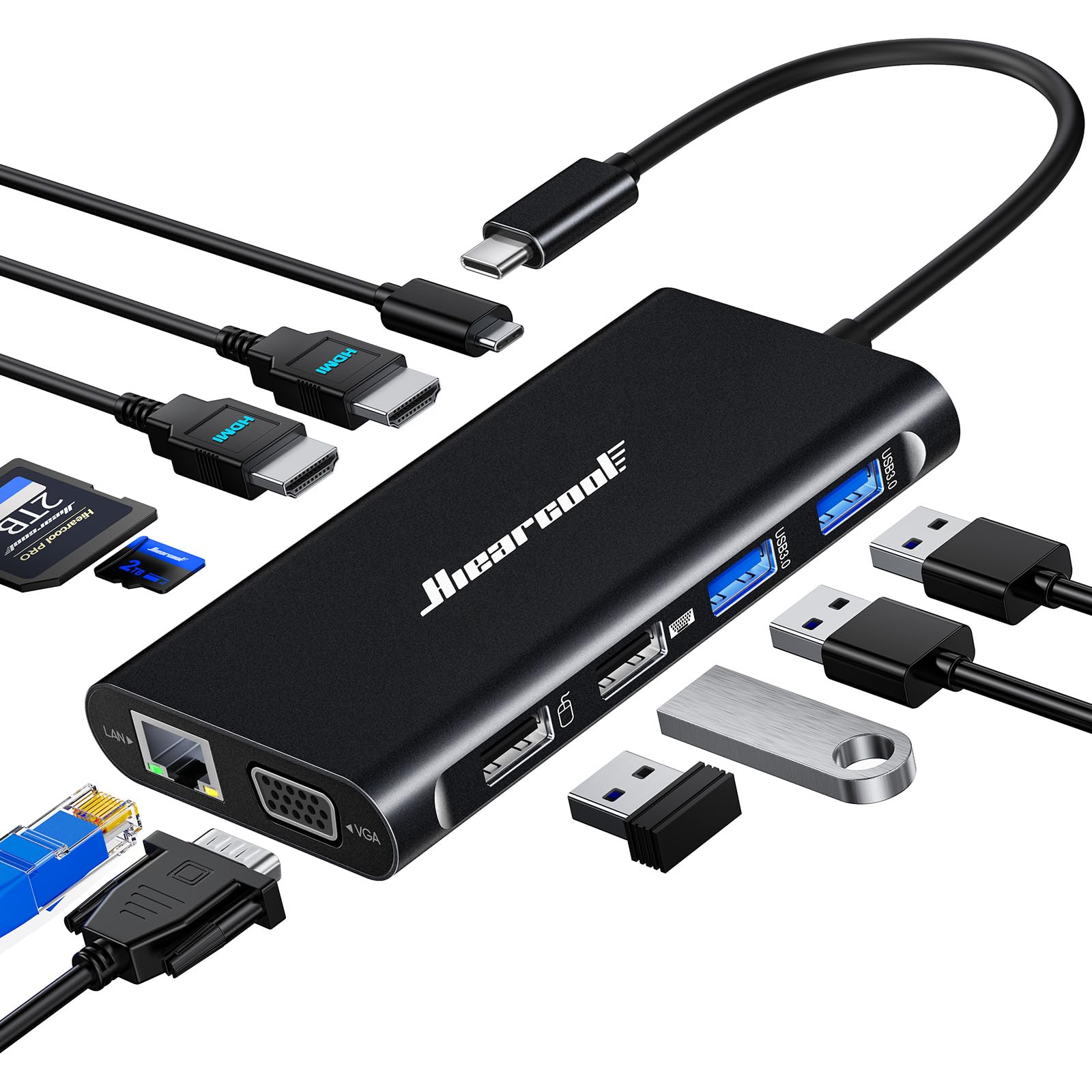

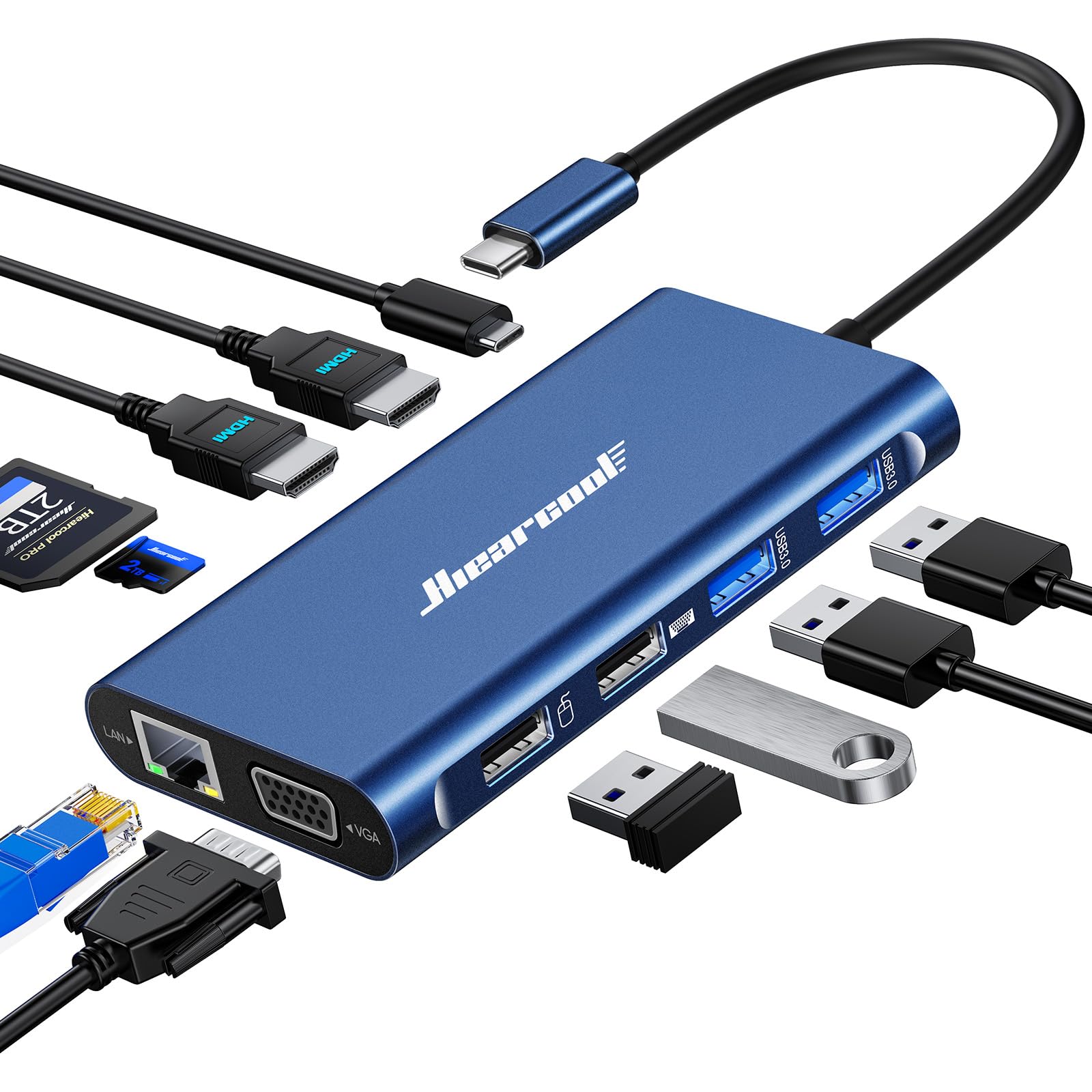

- 11-in-1 USB-C Docking Station: Equipped with HDMI and VGA video outputs, PD charging, Gigabit Ethernet, USB 3.0 (5Gbps), USB 2.0, plus SD/TF card reader for full desk setup.
- Smart Chip with 100W Power Delivery: Built with advanced smart chipset supporting up to 100W PD 3.0 (backward compatible with PD 2.0). Helps prevent overload, short circuit, overheating, and voltage instability.
- Fast Data & Wide Compatibility: Supports 10/100/1000Mbps Ethernet and high-speed USB data transfer. Compatible with USB-C laptops supporting DisplayPort Alt Mode, including Thunderbolt 3 and USB-C 3.1 Gen 1/2.
-
Save 10% when you buy two or more items.
-
Get 5% off your next purchase.
-
Enjoy free delivery on orders above $200.
-
Orders are processed and shipped from Canberra
3-6 days (Domestic)
Confidence-backed purchases with 30-day return support.
AUD |
BRSWGAYHCECGA3DZ |
Category |
Computers & Accessories , Laptop Accessories , Docking Stations |
Tags |
Estimated shipping
Select a product to estimate shipping.Triple Display USB C DOCKING STATION
Supports a Dual HDMI display up to 3840 x 2160@30Hz, or triple 1920 x 1080 displays @60Hz with VGA. (For Apple computer user (MAC OSmac os), displays are mirror mode only.)
DP Alt mode required: Display Port Alt Mode (DP Alt Mode) allows a USB-C equipped computer to connect directly to a display or monitor.
Ensure your Laptop has a type C Power delivery port (USB 3.1 Type-C (Gen2)) or Thunderbolt 3 port (supports PD charging) before purchase.
Reliable Connection & Speedy Data Transfer
2 x USB 3.0 ports for accessories (an external hard drive or USB peripherals etc.,)
2 x USB 2.0 ports (great for wireless devices: keyboard and printers etc.,)
A laptop's wall adapter to the USB-C Power Delivery port is needed before connecting to any external hard drive or various devices' purpose.
The Type C PD Charging port for power passing-thru only. SD and the TF card cannot use at the same time.
High-Speed Gigabit Ethernet
An RJ-45 Gigabit Ethernet network port (supports 10/100/1000 Ethernet)
Set up for Macbook:
System Preferences →Network → Click Add(+) to set up a service → selecting USB 10 / 100 / 1000 LAN to create an application → Click the application to connect.
Safety System Control
Equipped with VL817 Chip preventing overload, over-voltage, over-current, short circuit, overcharge, voltage regulation, and temperature control under 45°C.
Power will be shared between all dock-connected USB C devices. For a fast charge result, please choose over 72W Adapter to charge it.
Hiearcool Laptop Docking station is compatible for specific Thunderbolt 3, Type C Gen2 or USB-C Windows systems.
The USB C ports on the Laptop are looking the same, but it has several critical differences between Thunderbolt 3, USB-C 3.1 Gen 2, and USB-C 3.1 Gen 1.
The difference between the three technologies is bandwidth.
Support Dual or Triple Display:
√ Thunderbolt 3: 40Gb/s
√ USB-C 3.1 Gen 2: 10Gb/s
√ USB-C 3.1 Gen 1: (Support Power Delivery)
DOES NOT SUPPORT USB C DISPLAY OUTPUT:
× USB-C 3.1 Gen 1: 5Gb/s (data transfer only)
Please ensure the Laptop has thunderbolt 3 / USB-C 3.1 Gen 2 /USB-C 3.1 Gen 1 (Support Power Delivery) to support various display before purchase.
Hiearcool USB C Docking Station Compatibility List(Partial):
Such as the Microsoft Surface Book 2, Surface Go, Dell XPS 9350 / 9360 / 9370 / 9380 /9550 / 9560, Lenovo Yoga 720 13" & Carbon X1 5th/6th Gen, most 13" HP Spectre x360 models, MSI GS65 /GS75 etc.,(Type C Wall adapter required for the Power Delivery)
Incompatible for Acer all series, iPad Pro 2018, Apple USB SuperDrive, Surface Book 3, and Nintendo Switch.
REMINDER:
1. For Apple computer users (MAC OS), displays are Mirror mode only.
2. Please plug in the Laptop's power adapter to the USB-C Power Delivery port before connecting an external hard drive or various display purpose.
3. The type C PD charging port is for power passing-thru only.
4. SD and the TF card cannot use at the same time.
5. Each monitor will be limited to a maximum resolution of 1920 x 1080@60Hz when connecting a dual or triple monitor.
6. Power will be a community between all dock-connected USB C devices. For a fast charge result, please choose Adapter that is over 72W to charge.
7.EDID(Extended Display Identification Data) may blackout for a few seconds(1 minute at max, depends on Laptop and monitor) when data transfer; Please be patient wait for the data completed.
Product details
| Main Specification | |
|---|---|
| Compatible Devices | Monitors or Mouse or Televisions or Projectors or Keyboards or Card Readers or USB C Laptops |
| Special Feature | Portable or Fast Data Transfer or Power Delivery up to 100W or Triple Display or Plug and Play |
| Manufacturer | Shenzhen Hongtian Electronics Co., Ltd. |
| Unit Count | 1 Count |
| Item Dimensions L x W x H | 4.52"L x 2.36"W x 0.59"H |
| Number of Ports | 11 |
| Brand | Hiearcool |
| UPC | 198715572292 |
| Number of Items | 1 |
| Colour | Space Grey |
| Global Trade Identification Number | 08431270207349 |
| Item Weight | 3.68 ounces |
| Product information | |
| Hardware Interface | Ethernet or HDMI or Vga or USB 3.0 or MicroSD or USB Type C or USB 2.0 |
| Operating System | Macbook and windows |
| Total USB Ports | 4 |
| Technical Details | |
| Data Transfer Rate | 5 gigabits_per_second |
| Country of Origin | China |
| Item details | |
| Model Number | UCN3270 |
| Features & Specs | |
| Additional Features | Portable or Fast Data Transfer or Plug and Play or Power Delivery up to 100W or Triple Display |
| Others | |
| Built-In Media | 1 * User Manual or 1 * Triple Display 11 in 1 USB C Hub or 1 * Traval Pouch |
| Item Highlight | plug-and-play or 100W PD or Triple display via 2 HDMI and VGA or USB and SD/TF or compatible for HP or Dell and Lenovo USB C laptops |
| BuiltIn Media | 1 * Traval Pouch or 1 * Triple Display 11 in 1 USB C Hub or 1 * User Manual |
| Product Type | Docking Stations |
| Enclosure Material | Aluminum |
| Mfr Part Number | UCN3270 |
