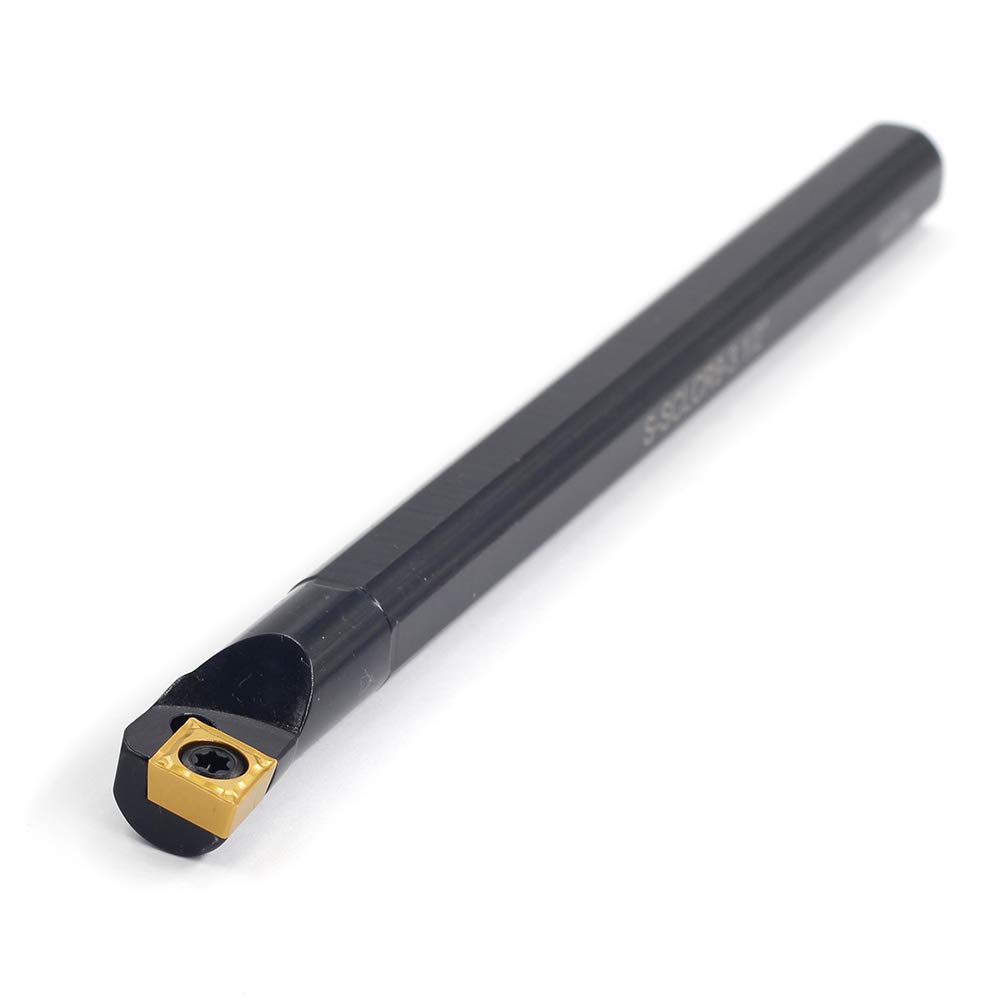

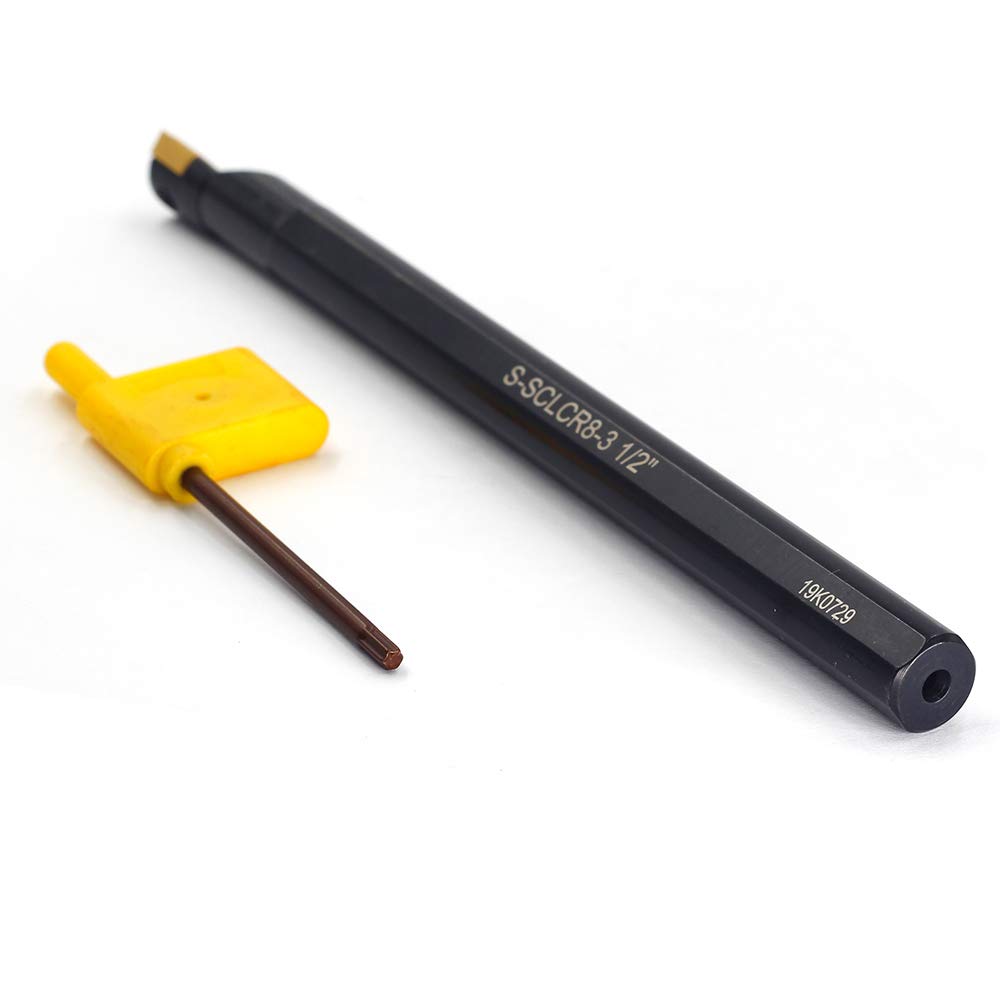

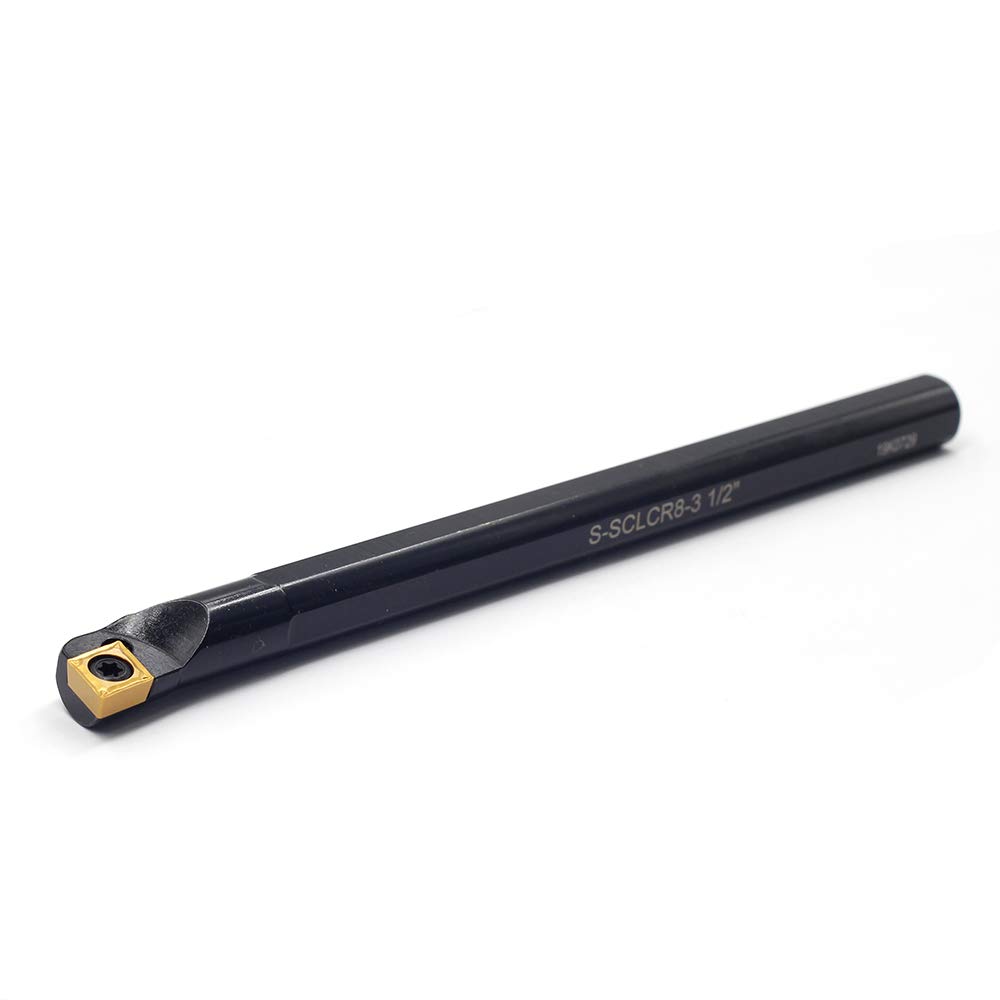

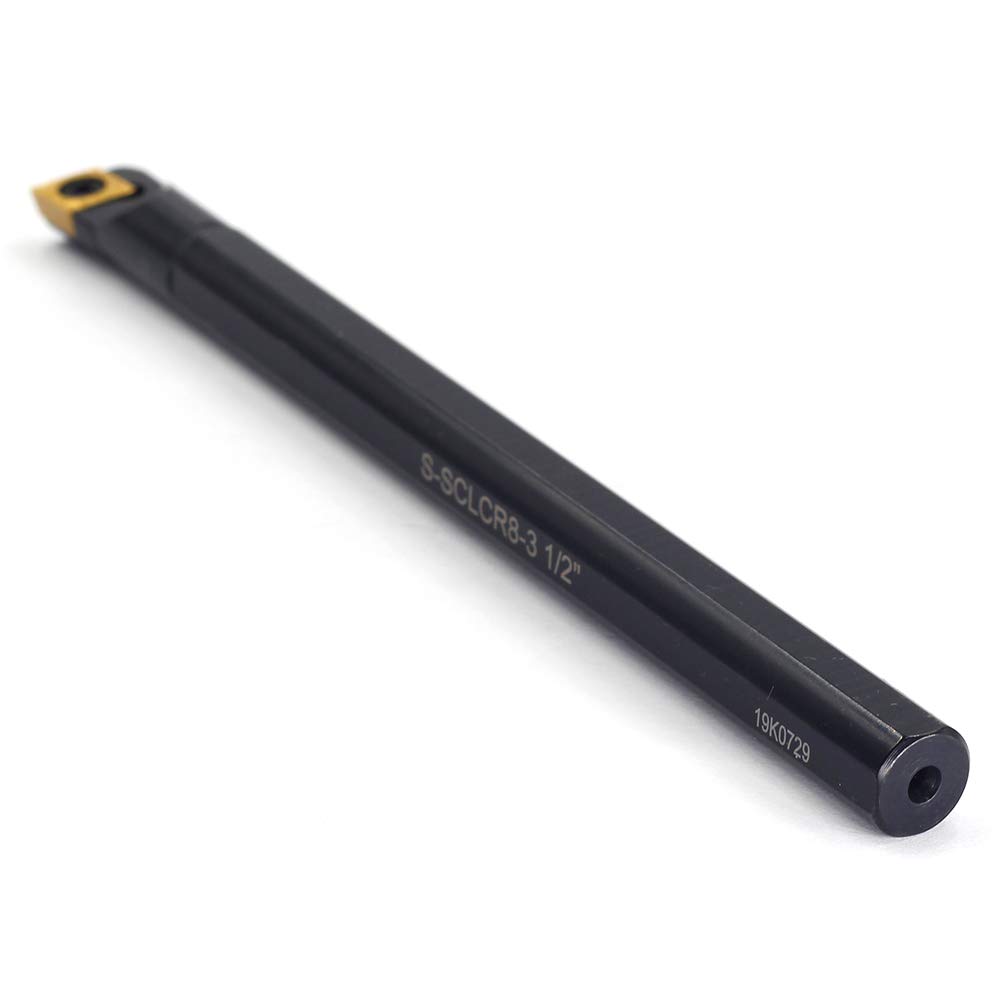

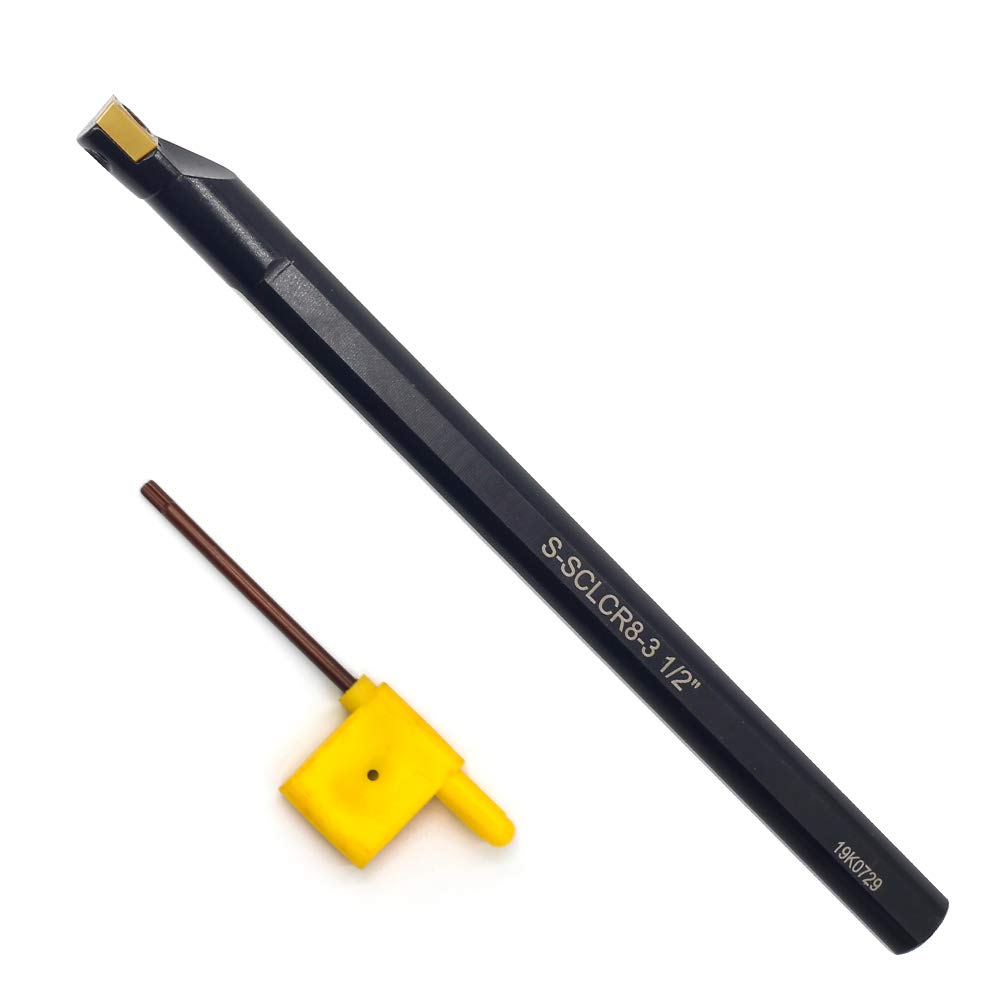

OSCARBIDE 1/2" x 7" Indexable Boring Bar SCLCR,Right-Hand
- High-Quality Construction-1/2" Shank Diameter, 7" Overall Length. Made of solid carbide with a multilayer coating for long tool life, faster cutting speeds, and superior wear resistance.
- Advanced Cutting Performance-Carbide inserts feature an 80° cutting angle with a negative 5° end and side cutting angle, ensuring precision and efficiency in various machining operations.
- Versatile Applications-Ideal for turning internal holes, reaming, copying, and semi-finishing existing holes. Compatible with boring machines and lathe machines.
- Low Friction & Durability-Low friction coefficient reduces wear and tear, ensuring smooth operation and maintaining tool longevity even under heavy use.
- Package Contents-1 piece of 1/2" x 7" RH SCLCR Indexable Boring Bar with 1 pieces of CCMT09T304 (CCMT32.5) carbide inserts included.
-
Save 10% when you buy two or more items.
-
Get 5% off your next purchase.
-
Enjoy free delivery on orders above $200.
-
Orders are processed and shipped from Canberra
3-6 days (Domestic)
Confidence-backed purchases with 30-day return support.
AUD |
BRSWGBL6CMBRECI6 |
Category |
Additive Manufacturing Products , 3D Printing Supplies , 3D Printing Filament |
Tags |
Estimated shipping
Select a product to estimate shipping.OSCARBIDE 1/2′′ x 7′′ Indexable Boring Bar (Right-Hand SCLCR, with 1 Insert)
Small Diameter, Big Reach – 7′′ Length, Professional Results.
Brand name: OSCARBIDE
Shank Diameter: 1/2''
Overall Length: 7''
Min. Bore : 0.6''
Cutting Direction : Right Hand
Negative 5 degree end & side cutting angle
Positive 80 degree diamond CCMT inserts
Carbide Insert: CCMT09T304(CCMT32.51)
Insert Screw: M4x8
Key: T15
Size:
1/2′′ rigid steel shank – Optimal balance of stability and access for small-bore applications-
7′′ overall length – Extended reach for deeper bores and versatile machining
Right-hand SCLCR design – 80° diamond insert geometry with negative 5° end and side cutting angles

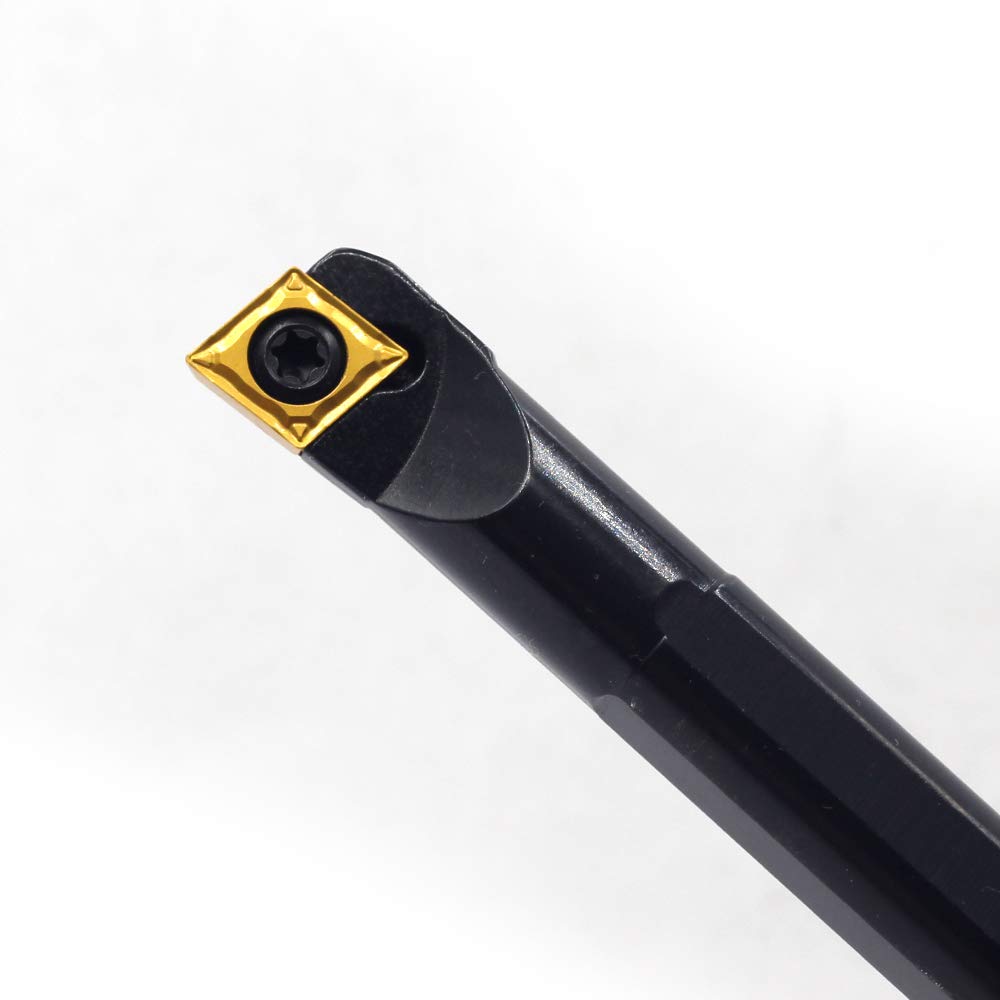

1 CCMT09T304 (CCMT32.5) insert included – 80° diamond shape, 2 indexable edges – ready to use immediately
Solid carbide with multilayer coating – Long tool life, faster cutting speeds, low friction, and excellent wear resistance
Used for
Bar holders are made of high quality steel with coated, inserts with Tin-coated are made of carbide,moistureproof, rust-proof,for long time use.
Boring can be done on mills, lathes or drill press machines, either with a boring head or with just a boring tool.
Used for Turning internal hole, reaming, copying,etc., specially used for semi-finishing on the existing hole cutter,fit boring machine, lathe machine
Carbide Insert:
We also provide Carbide Insert CCMT32.51(CCMT09T304) for this kit
Please search the Asin of this item B07W7PVWR1 to buy it.
Q1: Will this boring bar fit my lathe? A: Yes – if your lathe tool post or boring bar holder accepts 1/2′′ straight shank tooling -1. This fits most mid-size lathes, benchtop lathes, and CNC lathes. The bar requires a minimum bore diameter of approximately 0.75′′ – 0.80′′ (20mm) .
Q2: What are the exact dimensions? A: Shank diameter: 1/2′′. Overall length: 7′′. Minimum bore: approximately 0.75′′ – 0.80′′ (20mm). Right-hand SCLCR design.
Q3: How many inserts are included? A: The set includes 1 CCMT09T304 (CCMT32.5) carbide insert . Each insert has 2 indexable edges – giving you 2 fresh cutting edges to start. Replacement inserts are available separately.
Q4: What does CCMT09T304 / CCMT32.5 mean? A: These are industry-standard designations for the 80° diamond insert shape :
CCMT : Clamp-style, 7° clearance, tolerance class M, chipbreaker style T
09T304 / 32.5 : Size and nose radius specifications
Q5: What is the insert made of? A: The insert is made of solid carbide with a multilayer coating , offering long tool life, faster cutting speeds, low friction coefficient, and good wear resistance.
Q6: Can I use this bar on a manual lathe? A: Yes – this bar is designed for use on both manual and CNC lathes, as well as boring machines-1. The 1/2′′ shank fits most standard tool posts.
Q7: What materials can I machine? A: Mild steel, carbon steel, stainless steel (with proper speeds/feeds), cast iron, aluminum, brass, copper, and alloy steels-. Not for wood or abrasive composites.
Q8: Does this bar have through-coolant capability? A: No – this bar does not feature through-coolant. Use external coolant or cutting fluid applied to the cutting zone.
Q9: How do I change the inserts? A: Use the included T-15 Torx key to loosen the screw clamp, rotate or replace the insert, and re-tighten. Do not over-torque. The screw-clamp design provides secure insert retention.
Q10: How long do the inserts last? A: Life depends on material, speeds, feeds, and coolant use – typically dozens to hundreds of parts per edge in mild steel. With 2 edges per insert, you get multiple uses before needing a replacement.
Q11: Where can I buy replacement inserts? A: Replacement CCMT09T304 (CCMT32.5) inserts are available separately from OSCARBIDE and other suppliers.
Q12: My bore is rough or oversized – what could be wrong? A: Check: insufficient cutting fluid, incorrect speeds/feeds, loose insert, or excessive depth of cut. Also ensure the bar is properly centered and the workpiece is securely held
Product details
| Main Specification | |
|---|---|
| Manufacturer | OSCARBIDE TOOlS |
| Unit Count | 1 Count |
| Brand | OSCARBIDE |
| UPC | 782500239752 |
| Number of Items | 1 |
| Item Diameter | 0.5 Inches |
| Material | carbide_tipped |
| Colour | 1/2*7 |
| Item Weight | 5.28 Ounces |
| Product information | |
| Number of Packs | 1 |
| Technical Details | |
| Manufacturer Part Number | 1 |
| Material Type | carbide_tipped |
| Item details | |
| Model Number | 1 |
| Others | |
| Product Type | 3D Printing Filament |
| Item Highlight | CCMT09T304(CCMT32.5) Carbide Inserts | High Rigidity & Stability | Precise Finishing | Long-Lasting Durability |
