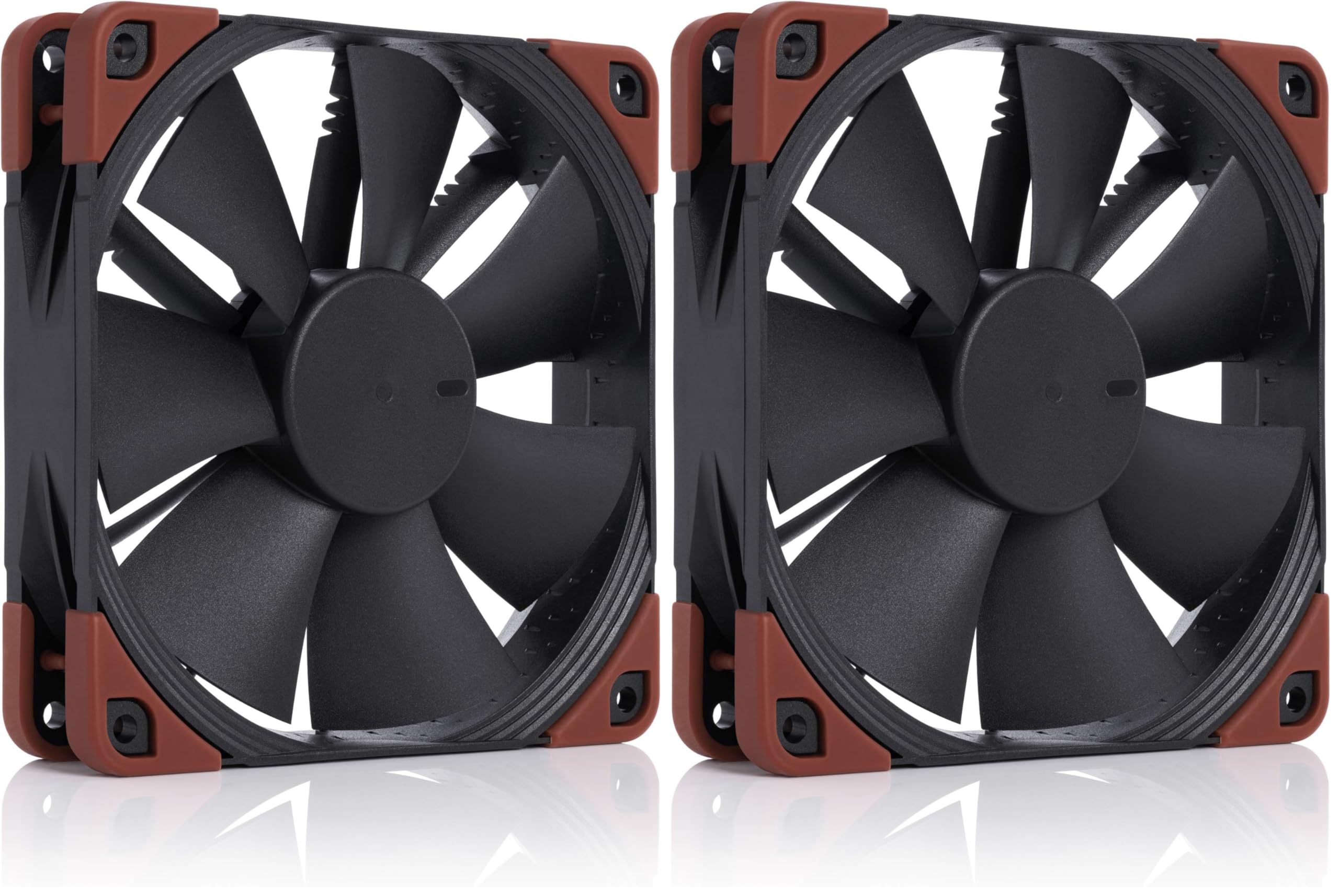

Noctua NF-F12 iPPC-3000 PWM, High-Performance Industrial Fan 120mm
- Heavy duty cooling fan, 120x120x25 mm, 12V, 4-pin PWM, max. 3000 RPM, max. 43.5 dB(A), >150,000 h MTTF
- Award-winning 120x25mm fan with Focused Flow frame for high static pressure and superior cooling efficiency
- 12V 3000rpm model (43.5dB) with 4-pin PWM connector for automatic speed control via 4-pin PWM fan headers, broad 750-3000rpm speed range
- High-speed industrialPPC version for industrial heavy-duty applications that require extreme cooling performance and advanced ingress protection
- Ruggedised fibre-glass reinforced polyamide construction and IP52 certified water and dust protection
-
Save 10% when you buy two or more items.
-
Get 5% off your next purchase.
-
Enjoy free delivery on orders above $200.
-
Orders are processed and shipped from Canberra
3-6 days (Domestic)
Confidence-backed purchases with 30-day return support.
AUD |
BRSWIGIPAANRKDLO |
Category |
Computers & Accessories , Computer Components , Internal Components , Fans & Cooling , Case Fans |
Tags |
Estimated shipping
Select a product to estimate shipping.Conceived for industrial heavy duty applications that require enhanced cooling performance and advanced ingress protection, the NF-F12 industrialPPC (Protected Performance Cooling) is a ruggedised high-speed version of the award-winning retail model. Thanks to the outstanding aerodynamic efficiency of the NF-F12 design and the use of a novel three-phase motor, the industrialPPC version provides superior airflow and pressure capacity while keeping noise levels and power consumption moderate as against comparable high-speed fans. While its fibre-glass reinforced polyamide construction and certified water and dust protection make the NF-F12 industrialPPC suitable for operation in challenging environments, the renowned SSO2 bearing technology ensures an MTTF of over 150.000hrs. Topped off with Noctua’s trusted reliability, the NF-F12 industrialPPC is an ideal choice for highly demanding applications that require superior flow rates and ultimate dependability.
Focused Flow frame
Designed for pressure demanding applications such as heatsinks and radiators, the Focused Flow frame features eleven stator guide vanes that straighten, channel and focus the airflow, which allows the NF-F12 to rival the performance of conventional fans running at much faster speeds.
3000rpm industrialPPC version
Running twice as fast as the 1500rpm retail version, the NF-F12 industrialPPC-3000 PWM provides extreme airflow and pressure performance. Combined with the industrialPPC series' robust polyamide construction and advanced protection features, this makes the fan ideal for challenging industrial applications.
Three-phase motor design
While most axial fans use single-phase motors with 4 slots, Noctua's industrialPPC fans feature a three-phase design with 6 slots, which provides smoother transitions between the slots and thus allows for even higher running smoothness, further reduced vibrations and unprecedented energy efficiency.
IP52 water- and dust protection
Thanks to a special varnish coating that covers the motor and PCB, the NF-F12 industrialPPC complies with the ingress protection rating IP52. This means that it is not only highly dust resistant but also withstands dripping water equivalent to 3mm rainfall per minute.
Fibre-glass reinforced polyamide construction
Both the impeller and the frame of Noctua’s industrialPPC fans are made entirely from fibre-glass reinforced polyamide. This material can withstand temperatures up to 140°C and makes the fans even more robust and break-proof than Noctua’s standard fibre-glass reinforced PBT fans.
Please Note:
The industrialPPC models are high-speed fans for industrial applications. As such, they are not as quiet as other Noctua fans and less suited for low-noise PC builds.
Product details
| Main Specification | |
|---|---|
| Manufacturer | Noctua |
| Unit Count | 1 Count |
| Item Dimensions L x W x H | 4.72"L x 4.72"W x 0.98"H |
| Noise Level | 43.5 db |
| Air Flow Capacity | 186.7 cubic meter per hour |
| Power Connector Type | 4-Pin |
| Cooling Method | Air |
| Maximum Rotational Speed | 3000 Rpm |
| Brand | Noctua |
| UPC | 782386481320 842431014375 737007519975 |
| Number of Items | 1 |
| Product Dimensions | 4.72"L x 4.72"W x 0.98"H |
| Voltage | 12 Volts |
| Compatible Devices | Desktop |
| Material | Fibre-glass reinforced polyamide |
| Global Trade Identification Number | 00842431014375 |
| Product information | |
| Number of Packs | 1 |
| Technical Details | |
| Part Number | NF-F12 iPPC 3000 PWM |
| Model | NF-F12 iPPC 3000 PWM |
| Material Type | Fibre-glass reinforced polyamide |
| Others | |
| Item Highlight | Heavy Duty High Airflow 25mm Thick Fan or for Demanding Applications or 3000rpm 4-Pin PWM |
| Product Type | Case Fans |
