Bussmann LP-CC-15 15 Amp Low-Peak Time Delay Current Limiting Class CC Rejection Cartridge Fuse, 600V UL Listed

Price:

AU$ 40.04
  2. Shop
  3. Bussmann LP-CC-15 15 Amp Low-Peak Time Delay Current Limiting Class CC Rejection Cartridge Fuse, 600V UL Listed

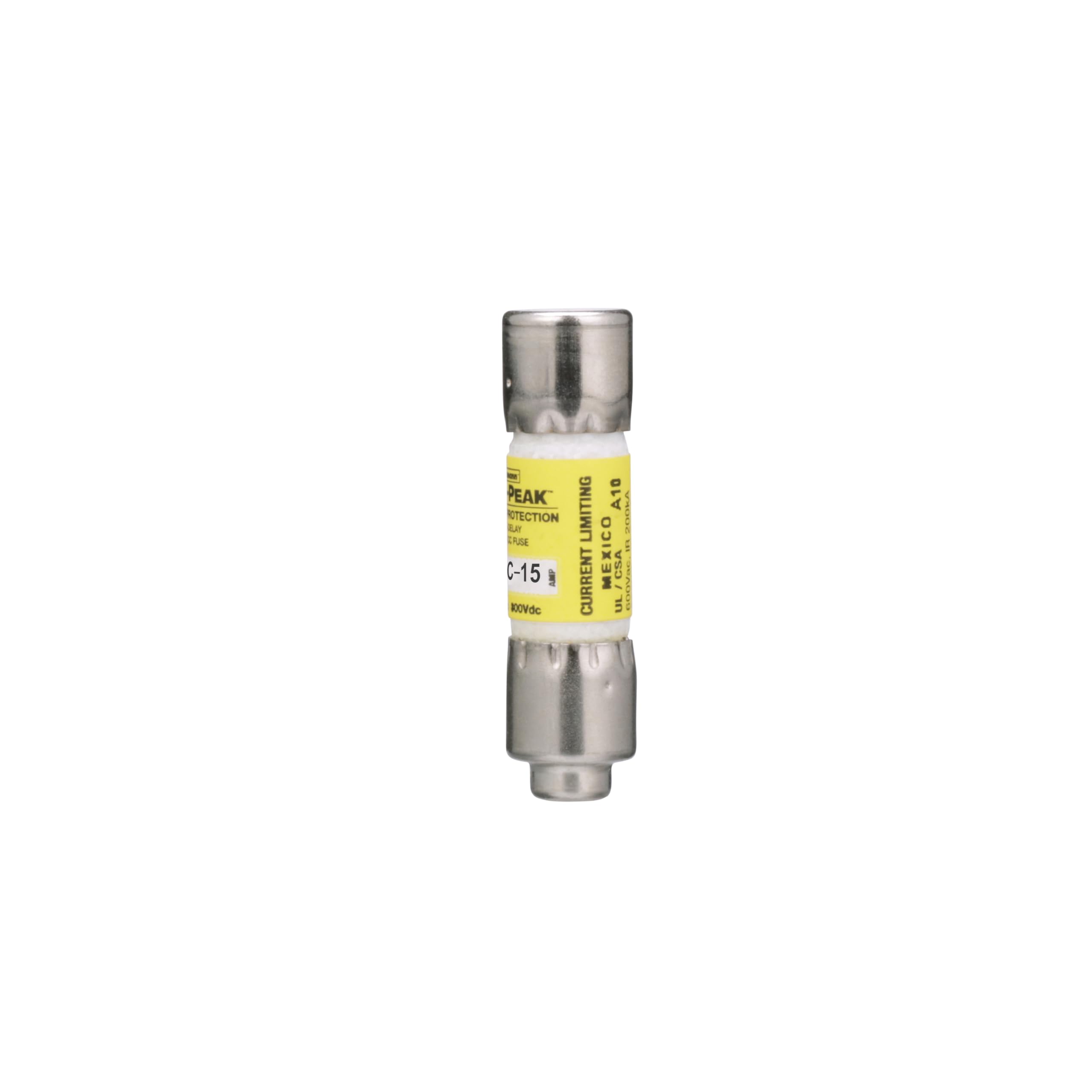

Bussmann LP-CC-15 15 Amp Low-Peak Time Delay Current Limiting Class CC Rejection Cartridge Fuse, 600V UL Listed

https://m.media-amazon.com/images/I/51zEvWdJn8L.jpg
(0 review)
  • Time delay coupled with Class CC current-limiting response provides close sizing on small motor and relay circuits
  • Provides maximum component short-circuit current rating protection
  • 200kA interrupting rating provides high ratings for control circuit locations
  • Class CC rejection feature, with appropriate fuse block, prevents inserting lesser-rated supplementary fuses
  • Selective coordination ratio of 2:1 (within Low-Peak fuse family) prevents electrical shutdowns from extending beyond the failed circuit

AU$ 40.04 40.04 AUD AU$ 40.04 Tax Included

Not Available For Sale

(AU$ 40.04 / Unit)
  • Manufacturer
  • Item Dimensions L x W x H
  • Specification Met
  • Current Rating
  • AC Adapter Current
  • Brand
  • UPC
  • Number of Items
  • Included Components
  • Voltage
  • Material
  • Colour
  • Global Trade Identification Number
  • Item Weight
  • Part Number
  • Material Type
  • Country of Origin
  • Model Number
  • Item Dimensions
  • Product Type
  • Maximum Current

This combination does not exist.

Contact Us
Cartridge Fuses
Contact Us
  • Buy Two or More Offer
    Save 10% when you buy two or more items.
  • Next Purchase Offer
    Get 5% off your next purchase.
  • Delivery Offer
    Enjoy free delivery on orders above $200.
  • Orders are processed and shipped from Canberra
    Orders are processed and shipped from Canberra
Delivery Detail
Estimate delivery times: 12-26 days (International).
3-6 days (Domestic)
Safe Checkout
Guaranteed Safe Checkout
Return Policy
30-Day Return Guarantee
Confidence-backed purchases with 30-day return support.
Free Return Pickup
Free return pickup available
We’ll handle returns from your doorstep at no extra cost.
AUD
 BRSWIZ33OR5BOHQ5
Category
 Electrical , Electrical Distribution, Breakers & Fuses , Fuses & Holders , Cartridge Fuses
Tags



Estimated shipping
Select a product to estimate shipping.

Product Description ' Fuse, 15A Fuse Amps, Nonindicating, LP-CC Series, 600VAC/150VDC Voltage Rating, Time Delay, CC Class, Dual Element, Body Material Melamine, Rejection, Body Style Cylindrical, Interrupt Rating 200kA at 600VAC, 20kA at 150VDC, Length 1-1/2 In., Diameter 13/32 In., Functionally Equal To Mersen/Ferraz Shawmut ATDR, Littelfuse CCMR, Standards CE/UL-248-4 Guide JDDZ/CSA Class 1422-02 ' From the Manufacturer LP-CC LOW-PEAK Yellow Fuse. A superior all-purpose, space-saving branch circuit fuse that meets most protection requirements up to 30A. Very compact; physical size is only 13/32-Inch x 1-1/2" (10.3mm x 38.1mm) with rejection tip. The unique yellow color makes it easy to tell that the correct fuse type is installed. Faster response to damaging short-circuit currents and higher interrupting rating than mechanical overcurrent protective devices. 200,000A Interrupting Rating. Maximum interrupting rating for available fault current in today's large capacity systems. Helps ensure that future growth will not obsolete the system. Dual Characteristics. Time-delay to avoid unwanted fuse openings from surge currents. Fast speed of response under short-circuit conditions for a high degree of current-limitation. ADVANTAGE: The LOW-PEAK fuse can be sized close to full load ratings for maximum overload and short-circuit protection. ADVANTAGE: Can be used where either a time-delay or a fast-acting fuse is needed, making selection easier and reducing spare fuse inventories for substantial cost reduction. Superior Motor Protection. For protection of small horsepower motor circuits. Proper sizing can provide Type "2" coordinated protection for NEMA and IEC motor controllers. Motors receive maximum protection against burnout from overloads and single phasing

Main Specification
Specification Met Csa or UL
Manufacturer BUSSMANN
Item Dimensions L x W x H 12.7 x 15.2 x 22.9 Centimeters
Current Rating 15 Amps
AC Adapter Current 15 Amps
Brand Bussmann
UPC 051712115308
Number of Items 1
Included Components 1
Voltage 600 Volts
Material As shown in the image
Colour As shown in the image
Global Trade Identification Number 00051712115308
Item Weight 0.02 Pounds
Technical Details
Part Number LP-CC-15
Material Type As shown in the image
Country of Origin Mexico
Item details
Model Number LP-CC-15
Measurements
Item Dimensions 12.7 x 15.2 x 22.9 Centimeters
Others
Product Type Cartridge Fuses
Maximum Current 15 Amps
