JET 1/2-Ton Mini-Puller Lever Hoist, 10' Lift (Model JLP-050A-10)

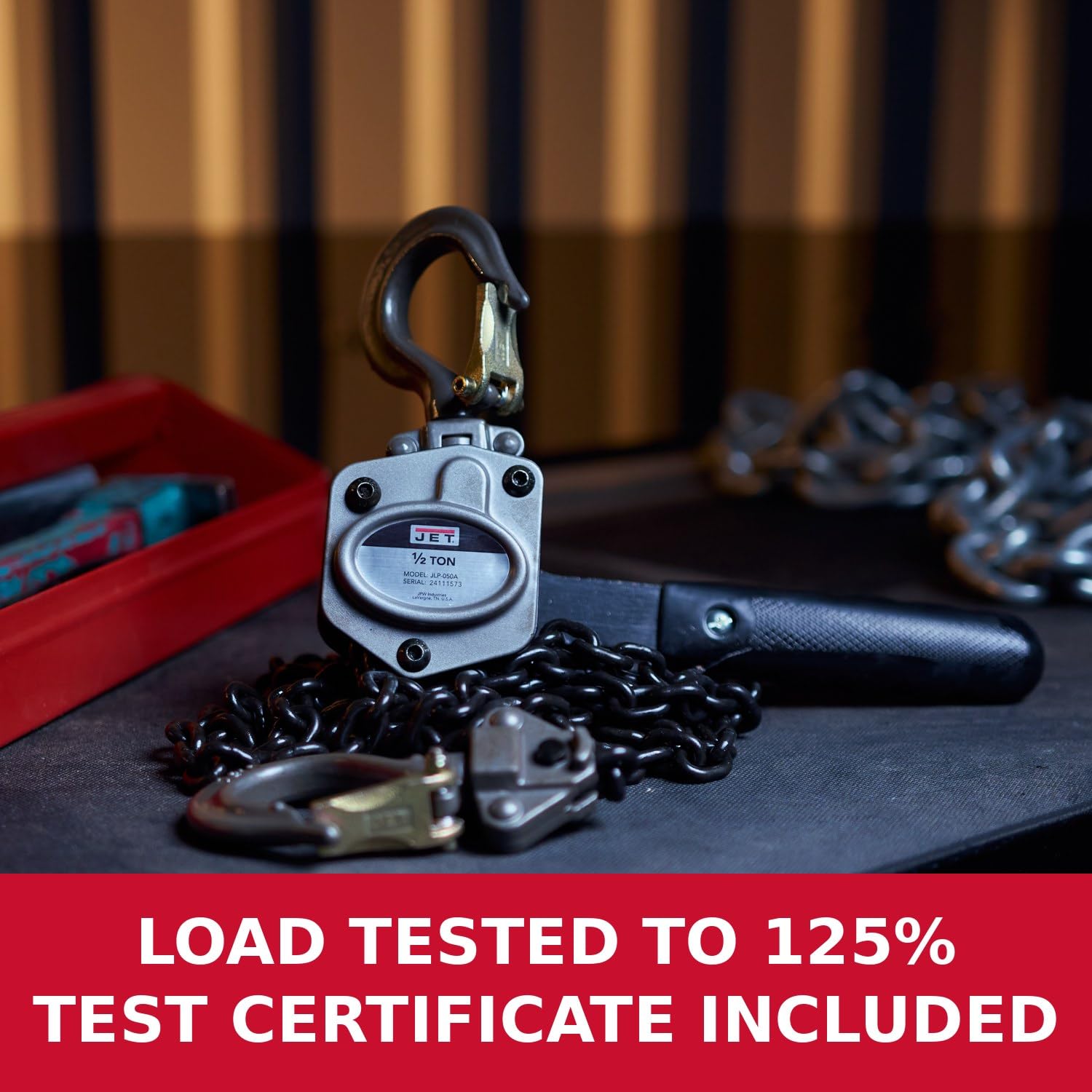

- LOAD-TESTED, WITH CERTIFICATE: Every JLP-050A-10 is proof-tested to 125% of its 1,000 lb rated capacity and ships with its own test certificate. It complies with ANSI/ASME B30.21 and HST-3, the U.S. standards for manually lever-operated chain hoists.
- A BRAKE YOU CAN CHECK: The all-steel, powder-coated body encloses a Weston-style automatic brake with twin opposing pawls that split the load across the ratchet gear. A brake wear indicator on the handwheel shows when the friction discs are due for service, and the alloy steel hooks slowly stretch to warn of an overload.
- FOR LIGHT- TO MEDIUM-DUTY LIFTING AND PULLING: Use it vertically as a hoist, or at an angle or horizontally as a puller (come along), for rigging, maintenance, and equipment positioning up to 1,000 lb.
- COMPACT, LIGHT, AND QUICK TO RIG: Weighs 6.8 lb with 10 ft of 4.3 mm Grade 80 black-oxide load chain. Minimum headroom is 10-1/16 in., the lever is 8-7/16 in., and the hook throat is 1-3/8 in. Lifting the full rated load takes about 86 lb of lever pull. A three-position UP / N / DN selector adds a no-load free-chain mode for fast slack take-up.
- WHAT'S IN THE BOX, PLUS LIFETIME WARRANTY: Includes the lever hoist with 10 ft load chain and top and bottom hooks with cast-steel safety latches, the operating and parts manual, a test certificate, and a product registration card. A storage case is not included. Backed by JET's limited lifetime warranty on manual hoists and a nationwide authorized service center network.
-
Save 10% when you buy two or more items.
-
Get 5% off your next purchase.
-
Enjoy free delivery on orders above $200.
-
Orders are processed and shipped from Canberra
3-6 days (Domestic)
Confidence-backed purchases with 30-day return support.
AUD |
BRSWKGLRAEGQE2L4 |
Category |
Building Supplies , Material Handling , Winches, Hoists & Pulleys , Hoists |
Tags |
Estimated shipping
Select a product to estimate shipping.JET JLP-A Series Lever Hoists combine safety, reliability, and durability that are designed to perform in light to medium-duty industrial applications. The patented brake wear Indicator increases safety by letting you know when to replace the friction disks. JET also offers the option of shipyard hooks, virtually eliminating stretched hooks caused by point or tip loading. The JET JLP-A Lever Hoist is available in 1/4-ton to 6-ton capacities with standard lifts of 5, 10, 15, and 20 feet (custom lifts available). The JET JLP-A Series is the perfect choice for a contractor grade lever hoist.
1/2-Ton Lifting Power at Just 6.8 lb
The JET JLP-050A-10 Mini-Puller lifts or pulls up to 1,000 lb, hangs in 10-1/16 in. of headroom, and is proof-tested to 125% of rated capacity, sized for jobs where a full-size hoist is more than you need.
Twin-Pawl Weston-Style Brake
An enclosed automatic brake uses two opposing pawls that split the load across opposite sides of the ratchet gear for greater load security.
Brake Wear Indicator
A gauge on the handwheel moves as the friction discs wear, so you can see when the brake is due for service.

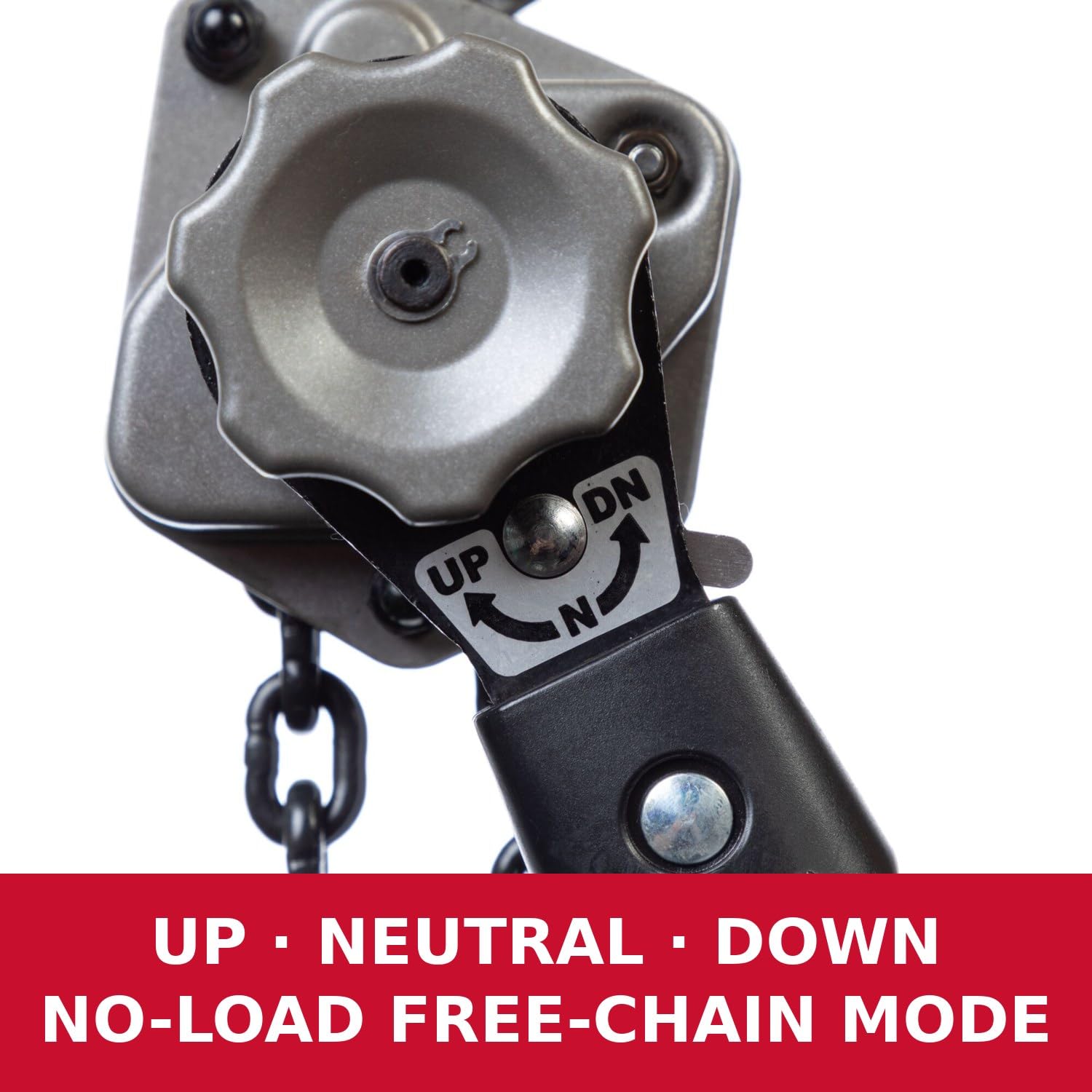

Up, Neutral, Down
A three-position selector switches between lifting and lowering. In neutral, with no load attached, the chain free-wheels for fast positioning.
Hooks That Warn You
Industrial-rated alloy steel hooks rotate 360° and slowly stretch to signal an overload. Cast-steel safety latches are secured with Allen screws and lock nuts.
JLP-050A-10 Specifications
Your Questions, Answered
It's rated for 1/2 ton (1,000 lb). Each hoist is proof-tested to 125% of that rating and ships with a test certificate, but never load it beyond 1,000 lb.
No. The carton includes the hoist with 10 ft of load chain and hooks, the operating and parts manual, a test certificate, and a product registration card.
Yes. Set the selector to UP to raise, DN to lower, or N to free-chain with no load. Lifting the full 1,000 lb rated load takes about 86 lb of pull on the 8-7/16 in. lever.
Yes, if the engine plus slings and attachments totals 1,000 lb or less and the hoist hangs from a support rated for the load. Wrap the engine with slings, not the load chain.
The steel body is powder-coated and the Grade 80 chain is black-oxide coated for corrosion resistance, but it isn't weatherproof. Cover it or bring it inside after use and store it dry.
Product details
| Main Specification | |
|---|---|
| Manufacturer | JET |
| Pattern | Hoist Only |
| Brand | Jet |
| Item Package Quantity | 1 |
| Included Components | Hoist |
| Power Source | Hand Powered |
| Product Dimensions | 10.63 x 3.74 x 4.13 inches |
| Voltage | 120 |
| Material | Steel |
| Colour | Gray |
| Size | 1/2 Ton |
| Style | 10' Lift |
| Item Weight | 6.8 pounds |
| Product information | |
| Item model number | JLP-050A-10 |
| Technical Details | |
| Part Number | 287201 |
| Others | |
| Date First Available | 2016 or August 11 |
| Product Type | Hoists |
