WFLNHB 12 Inch Level 0.0002 Per 10 Inch Machinist Tool High Accuracy

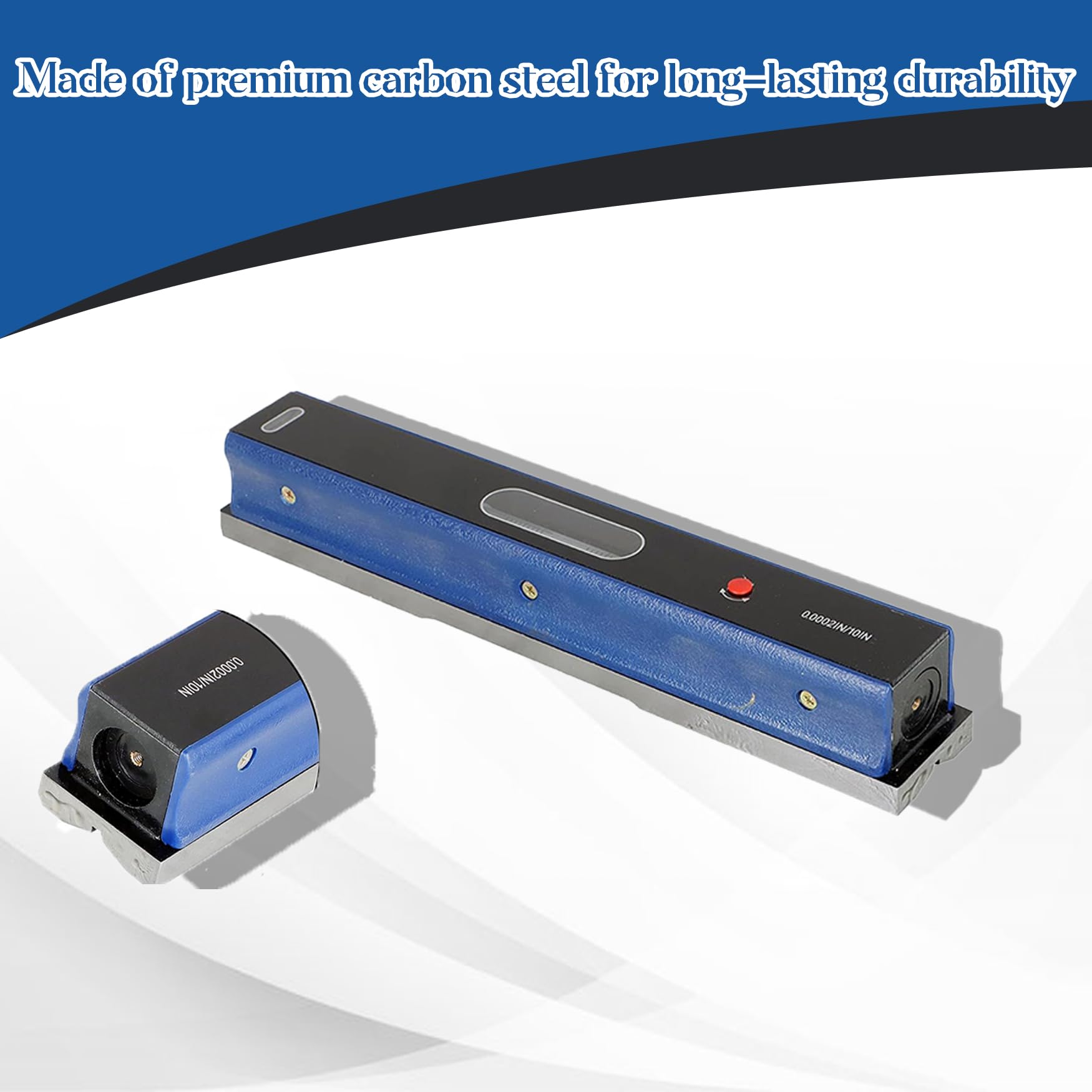

- Premium Material: Made of premium carbon steel for long-lasting durability.

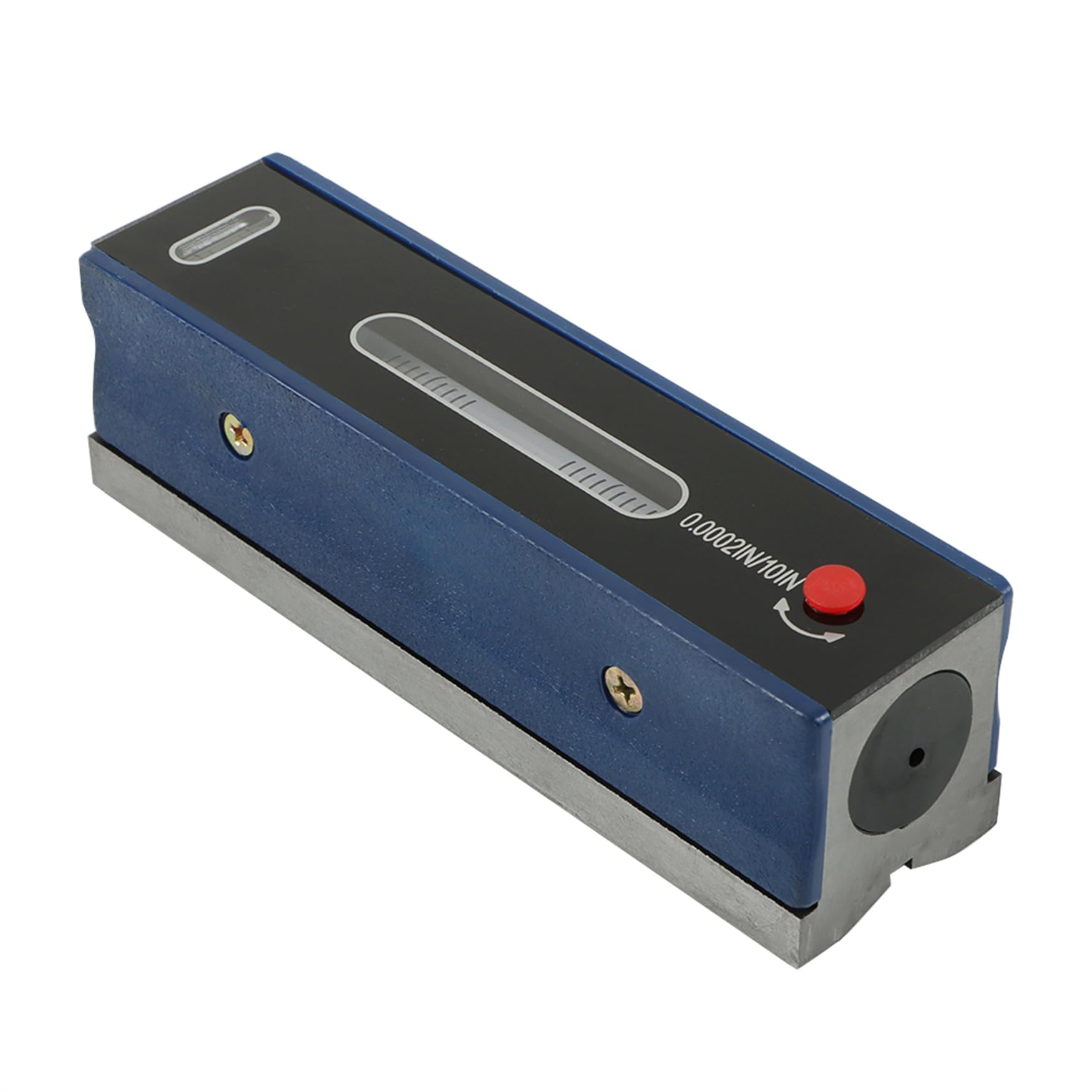

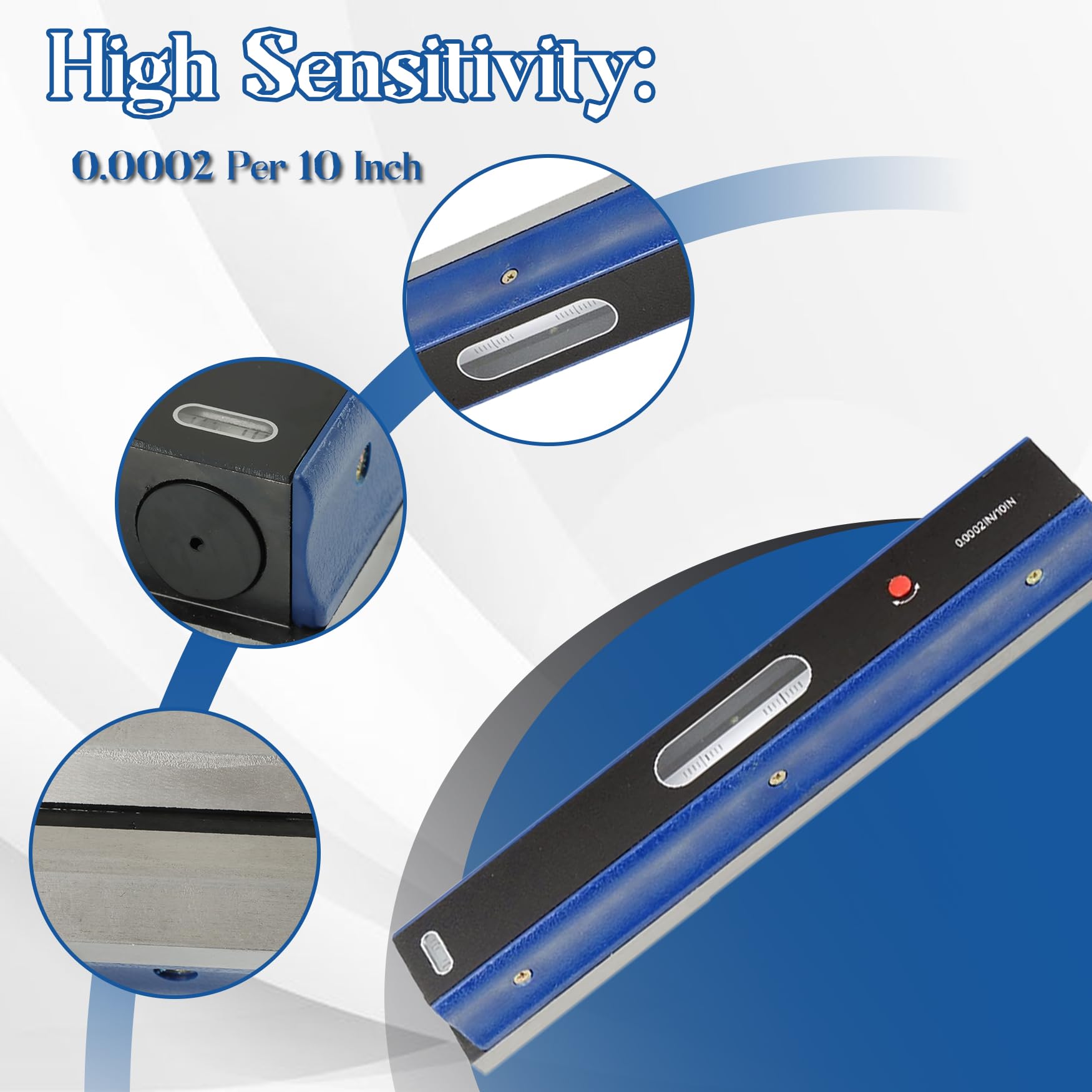

- High Sensitivity: 0.0002 Per 10 Inch, accurately display plane angle.

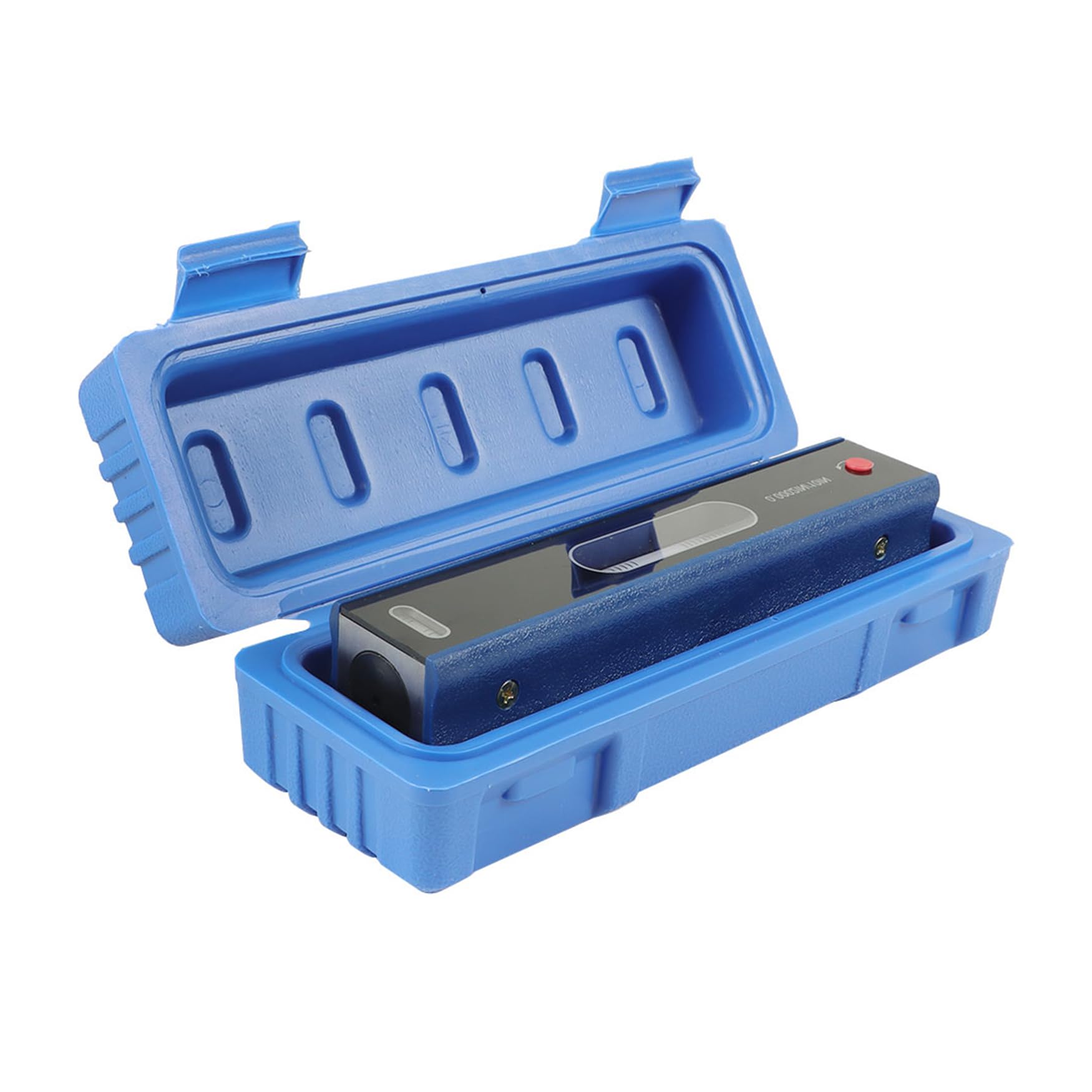

- Portable: With plastic box random, easy to store and carry.

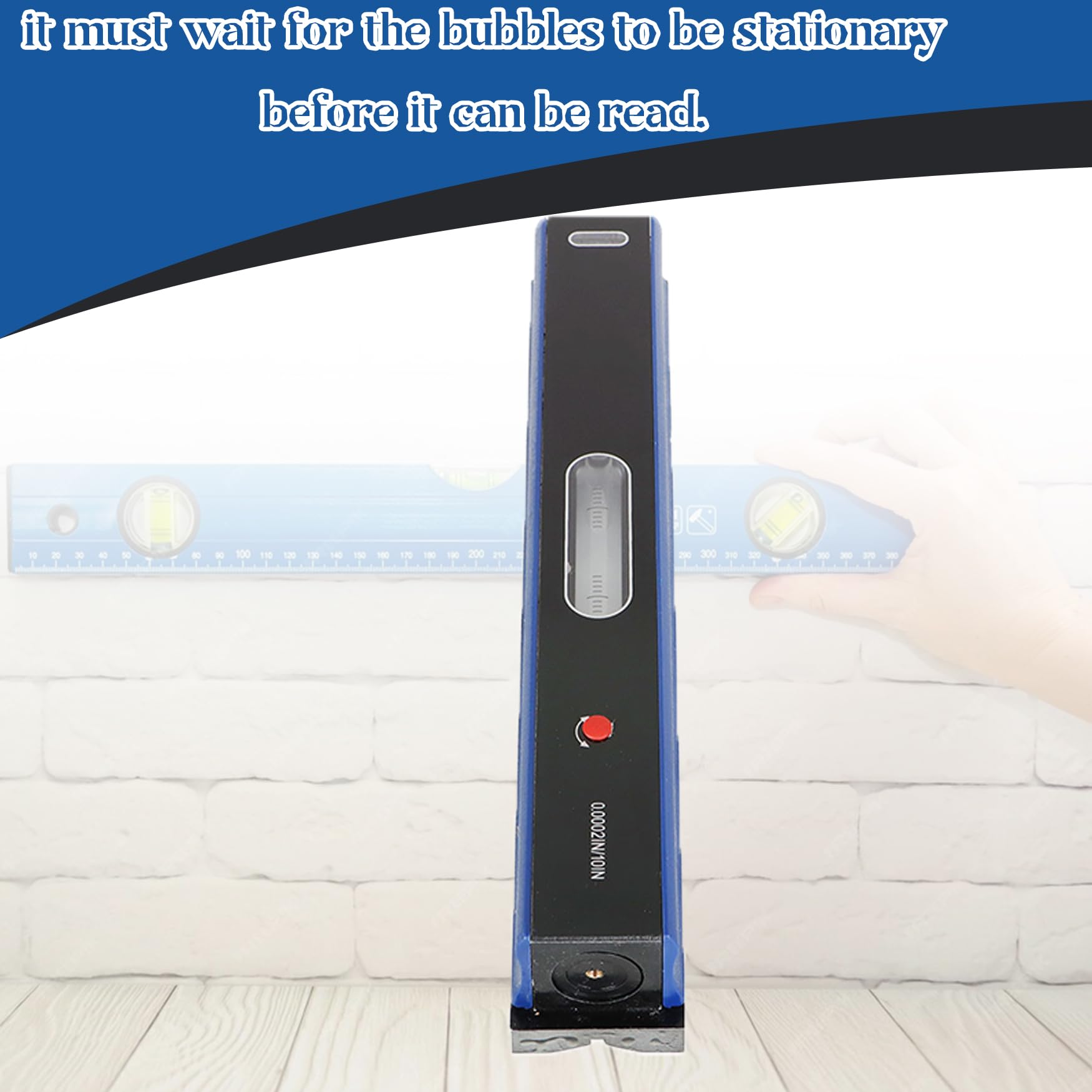

- Usage: When the level gauge is placed on the measured surface, it must wait for the bubbles to be stationary before it can be read.

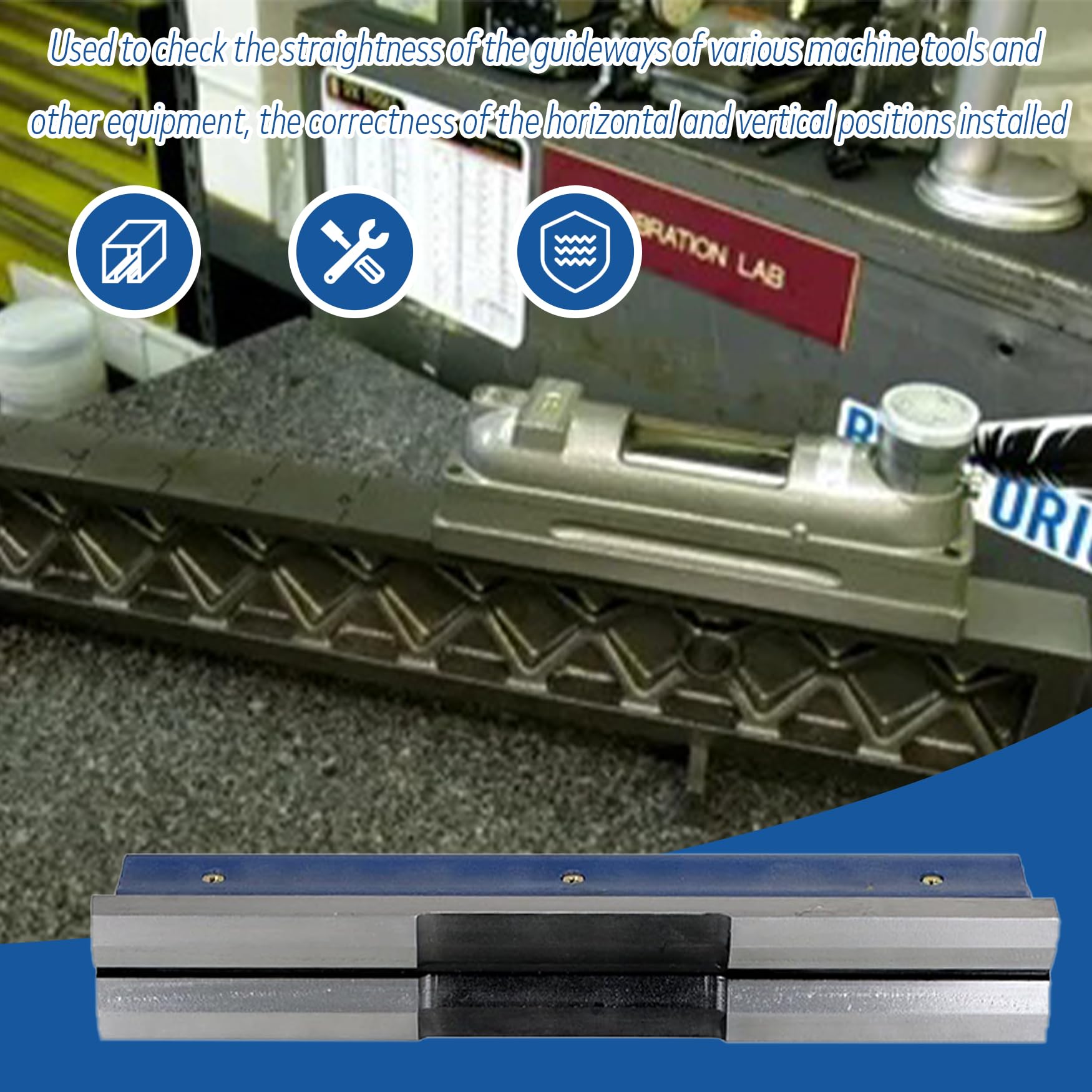

- Application: Used to check the straightness of the guideways of various machine tools and other equipment, the correctness of the horizontal and vertical positions installed, etc.
-
Save 10% when you buy two or more items.
-
Get 5% off your next purchase.
-
Enjoy free delivery on orders above $200.
-
Orders are processed and shipped from Canberra
3-6 days (Domestic)
Confidence-backed purchases with 30-day return support.
AUD |
BRSWYZT3BYCRECT2 |
Category |
Measuring & Layout Tools , Levels |
Tags |
Estimated shipping
Select a product to estimate shipping.12 Inch (300mm) Master Precision Level Accuracy 0.0002/10 Inch (0.02mm/m) for Machinist Tool with Wooden Box
Adjustment
(1) Put this level in a confirmed horizontal stable platform. Assume that the bubble is still in position as shown in Fig-1, then rotate the level 180°. Assuming that the bubble is still in position, as shown in Fig-2 or with main bubble position of not more than 1/2, the level meter is available.
(2) Rotation level 180°. After the bubble is still reading, as shown in Fig-3. At this time need to adjust the level of the instrument. Rotary adjusting screw. Repeat step (1).
Product Usage
Used to set and check the mechanical level and other high precision leveling
Product Quality
Made of premium carbon steel, high grade, durable
Product Packaging

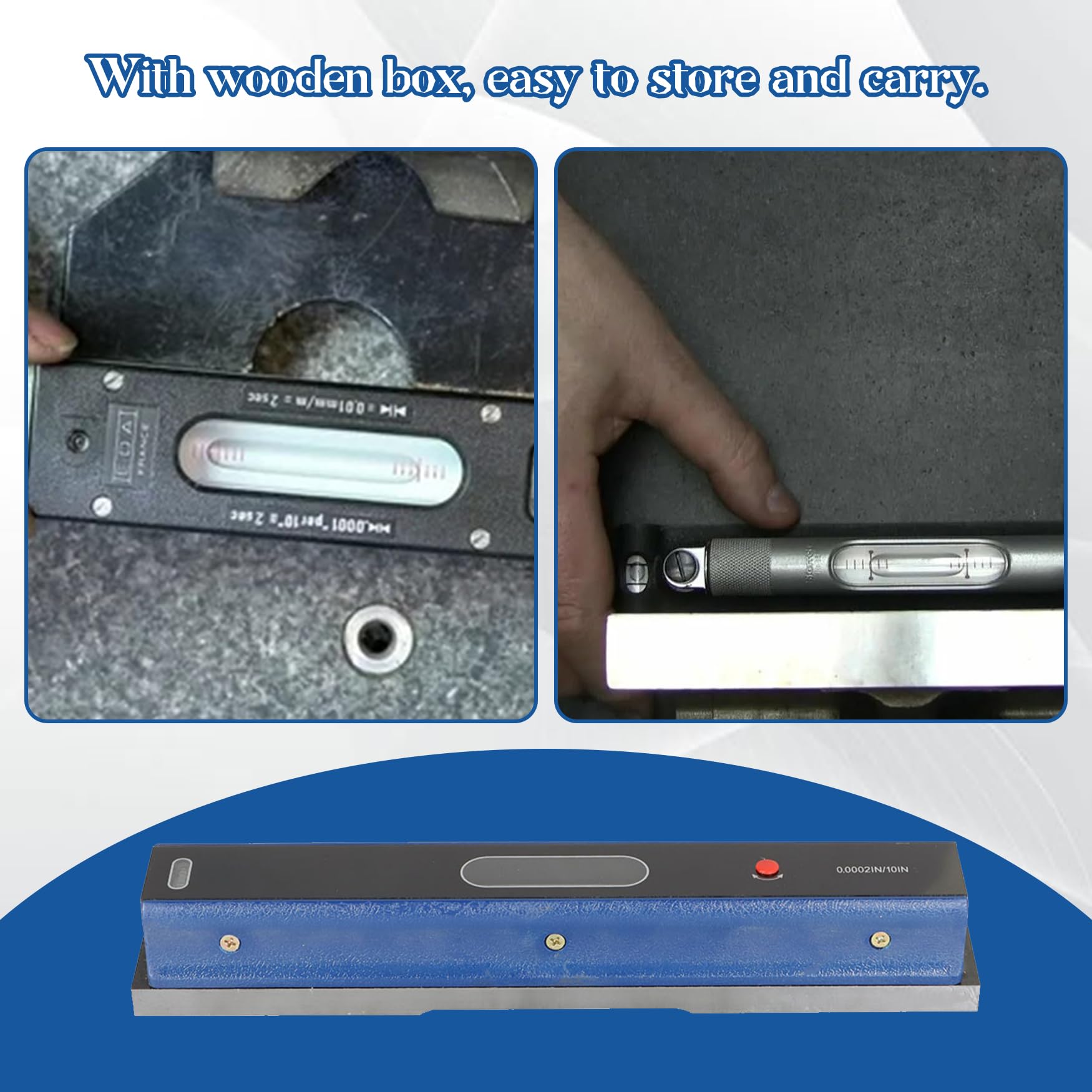

With wooden or plastic box random, easy to store and carry
Setting
When setting,put this level on the device to determine the level of stability of the platform, and repeat step (1). If the difference of the two reading is the same or not over line. Proved that the device is horianotal.
Notes
1.Keep Clean
Before use, the measuring surface and the working surface of the level must be cleaned
2.Always Avoid
Handle with care to avoid electric shock
3.Wait
Level on the measured surface, must wait for bubble is stationary, before reading.
4.Vertical Observation
When reading, look vertically to avoid parallax
5.Always Antiruet
After use, the product needs to be antirust treated, and when placed, care should be taken to protect it avoid shock and moisture
Product details
| Main Specification | |
|---|---|
| Material | Wood or Carbon Steel |
| Style | Portable or Horizontal |
| Manufacturer | WFLNHB |
| Brand | WFLNHB |
| Number of Items | 1 |
| Operation Mode | Manual |
| Product Dimensions | 12"L X 12"W |
| Colour | Blue |
| Item Weight | 6.1 pounds |
| Technical Details | |
| Material Type | Carbon Steel or Wood |
| Manufacturer Part Number | Does not apply |
| Item details | |
| Model Number | Does Not Apply |
| Style | |
| Style Name | Portable or Horizontal |
| Others | |
| Item Highlight | Clear Bubble Vial or Used to Test the Horizontal Position of Equipment and Flatness |
| Product Type | levels |
| Item Dimensions L x W | 12"L x 12"W |
| Level Measurement Units | inch |
| Level Measurement Type | bubble |
