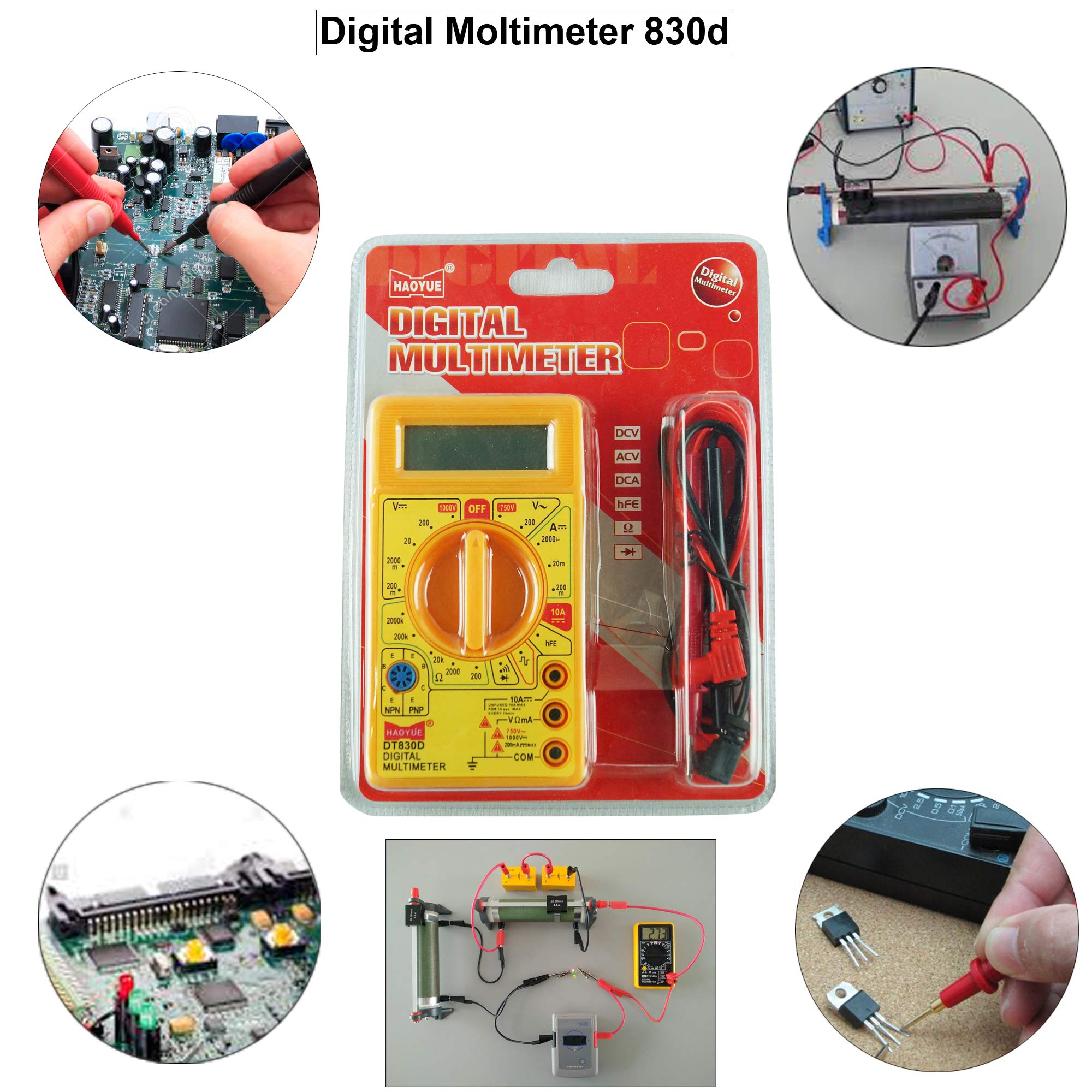

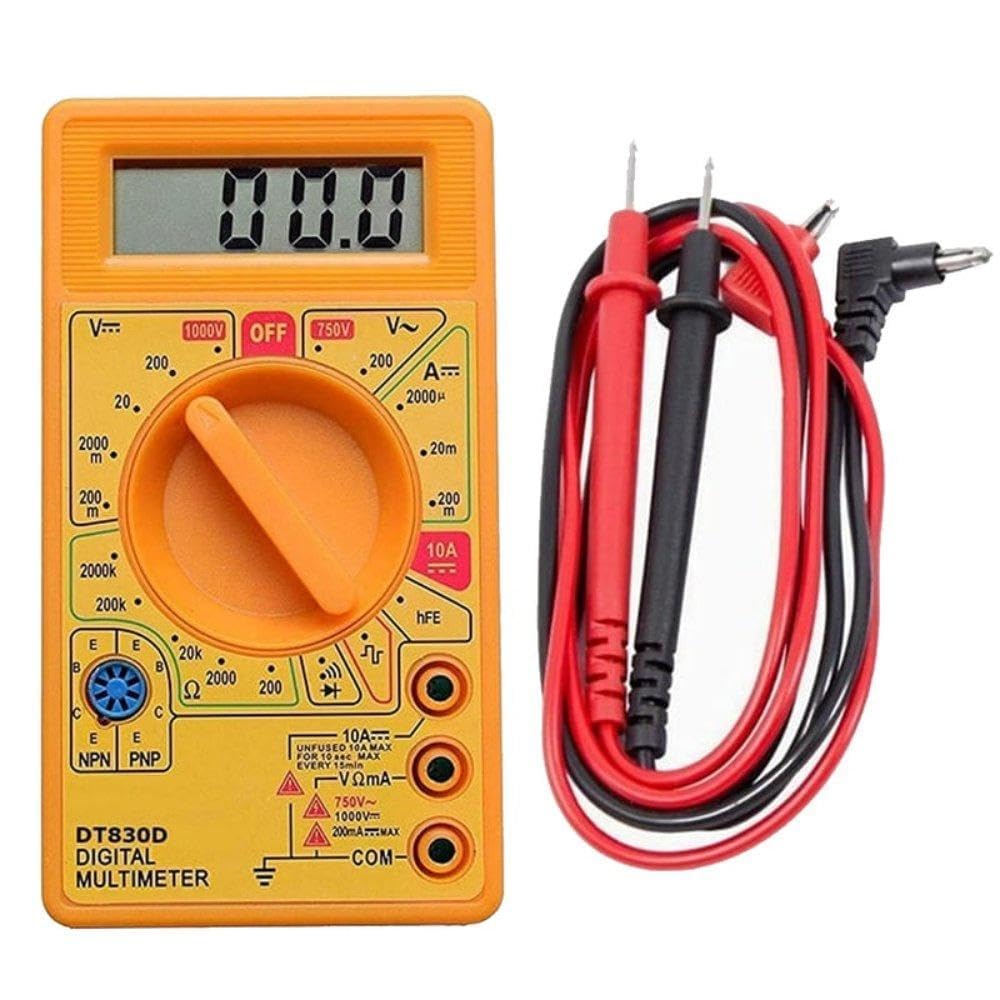

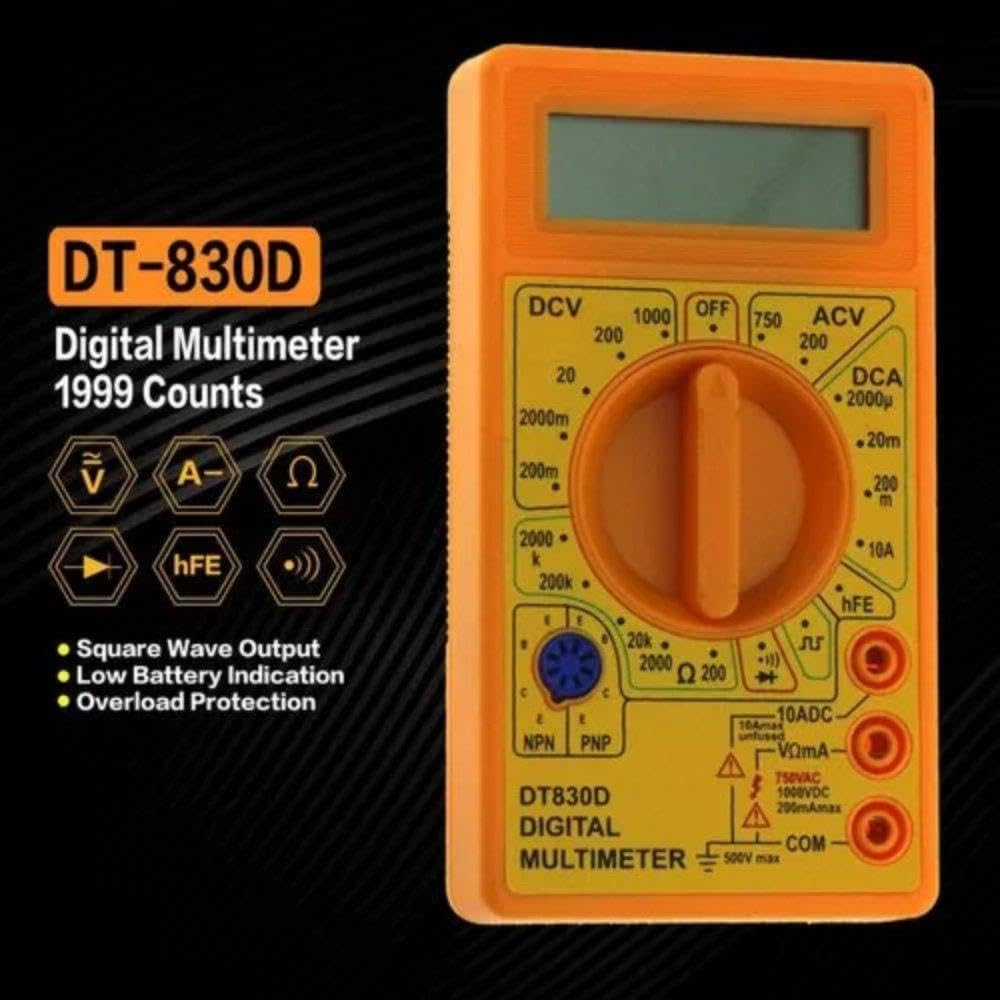

Small Digital Multimeter, Multipurpose Electric meter Yellow/Red 830D Digital Multimeter LCD AC DC Measuring Voltage Current
- Square wave output:the frequency is 50Hz,the voltage is approx 3Vp-p.The output jack is "V ohm mA" and "COM"
- When testing the magnifying ratio of the transistor ,turn the switch tohFE position & connect the transistor to the eight hole jack.
- When testing the current more than 200mA, connect the red test lead to OADC jack & black test lead to COM jack.
- ome with buzzer, pocket and easy to carry, cost efficient.
- Overload Protection (0.5A/250V fuse, 10A no fuse).
-
Save 10% when you buy two or more items.
-
Get 5% off your next purchase.
-
Enjoy free delivery on orders above $200.
-
Orders are processed and shipped from Canberra
3-6 days (Domestic)
Confidence-backed purchases with 30-day return support.
AUD |
BRSWYZY3DJ4AOA3P |
Category |
Electrical , Tools & Testers , Multi Testers |
Tags |
Estimated shipping

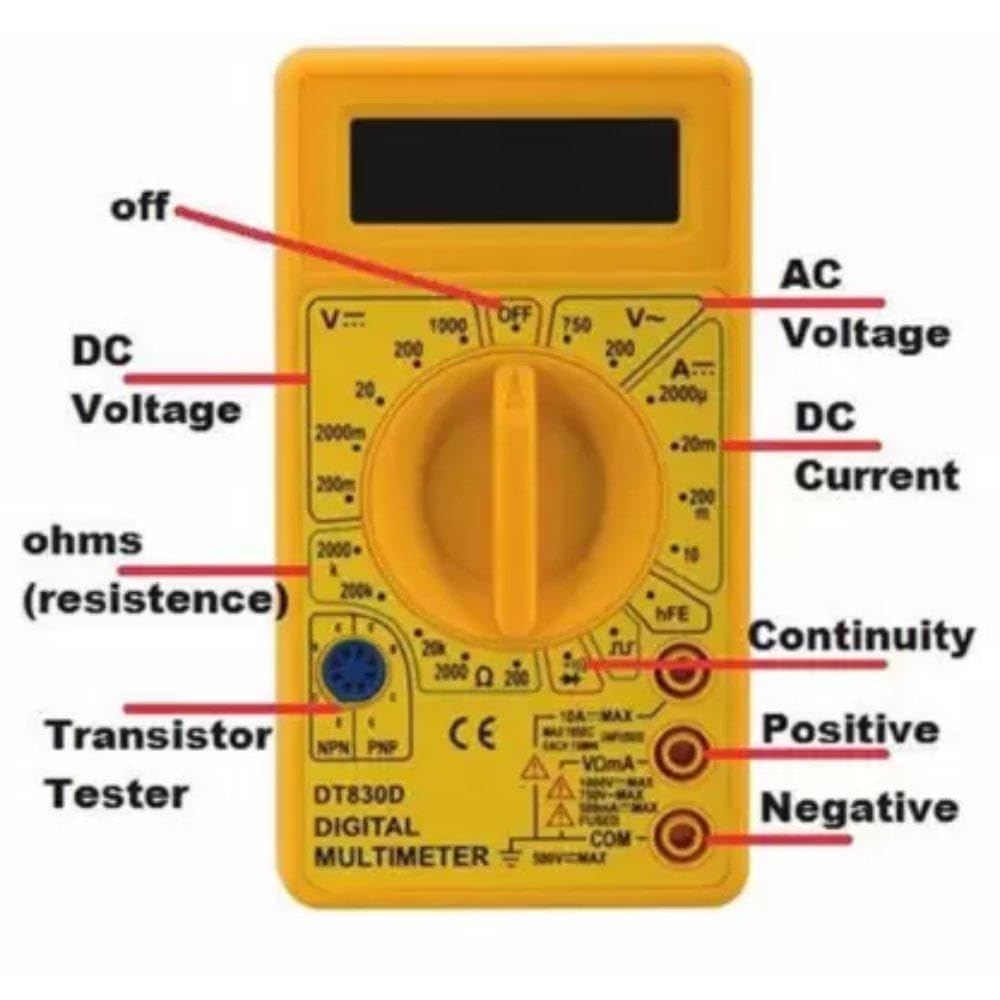

Select a product to estimate shipping.Small multimeter for your day to day needs. If you have basic knowledge about multimeters you can try this small multimeter for basic continuity checks and voltage measurements. Functions: DCV, ACV, DCA. Resistor (ohms). Diode. Buzzer. Transistor (HFE). Temperature. Square wave output. Battery test. Display: 4.75 centimeter length, 15 millimeter high LCD. Operating Instructions: When testing DC voltage, AC voltage, DC current, resistance, diode, buzzer and battery, connect the red test lead to "V 0 mA" jack and black test lead to "COM" jack. When testing the current more than 200mA, connect the red test lead to "' OADC" jack and black test lead to number 2022;COM" jack. When testing the temperature, connect the temperature probe to "V, 0, mA" jack or "COM" jack. It can also be connected to the jack specialized for it. When testing the magnifying ratio of the transistor, turn the switch to hFE position and connect the transistor to the eight-hole jack. Square Wave Output: The frequency is 50Hz, the voltage is approximate. 3Vp-p. The output jack is "V, 0, mA" and number 2022. Powered by a 9V battery inside. Dimensions of Multimeter: 12.5 centimeters (Length) x 6.75 centimeters (Width) x 2.25 centimeters (Thickness). Wire Length (Including Pin): 71 centimeters each.

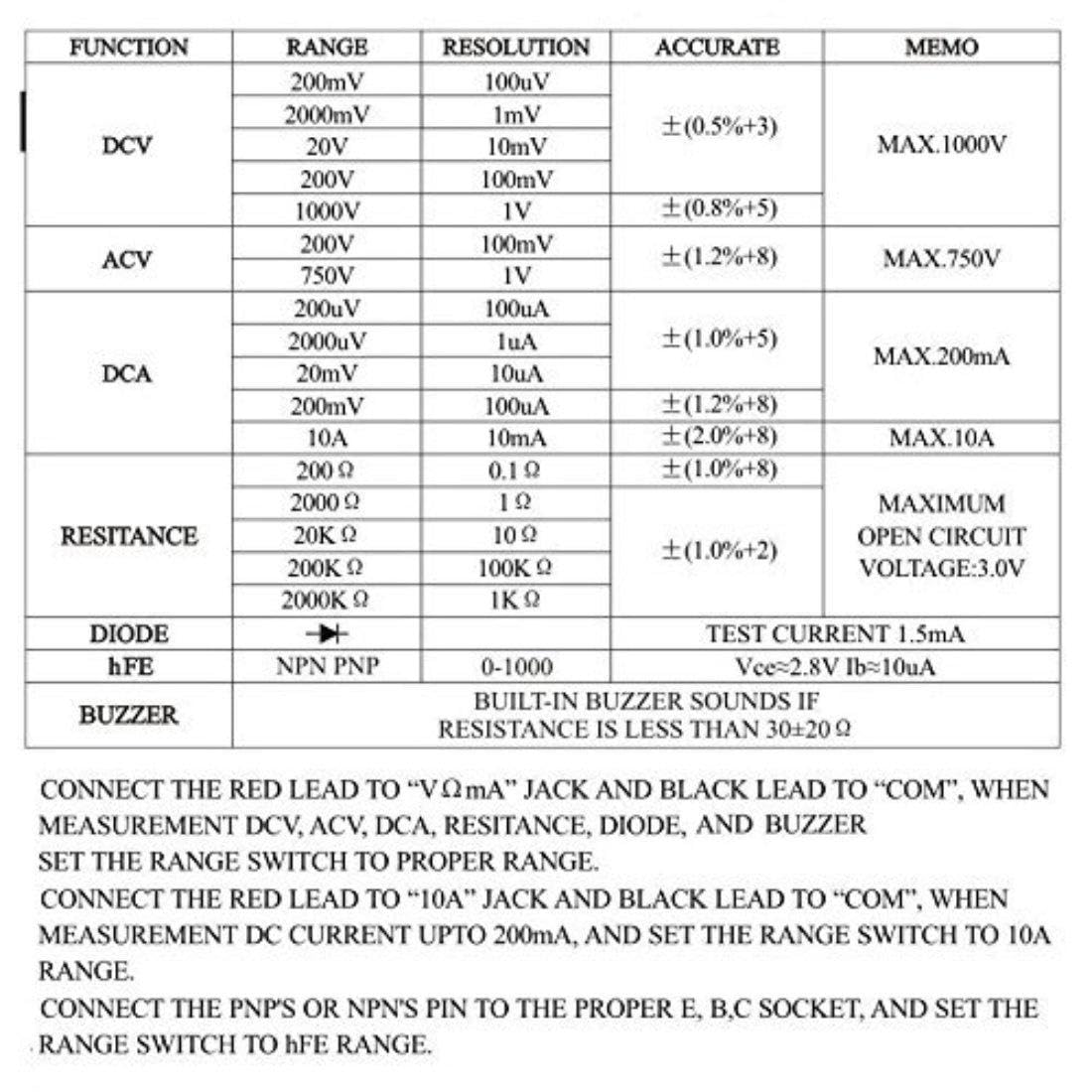

| Main Specification | |
|---|---|
| Colour | Black or Red |
| Style | Portable or Digital |
| Manufacturer | GILHOT, Shakti Tools And Hardware Store REGD |
| Unit Count | 1.00 Count |
| Specification Met | Ce |
| Brand | GILHOT |
| Number of Items | 1 |
| Included Components | Probe |
| Power Source | Battery Powered |
| Item Weight | 200 Grams |
| Technical Details | |
| Part Number | digitel multimeter |
| Country of Origin | China |
| Measurement Type | Multimeter |
| Model number | digitel multimeter |
| Style | |
| Style Name | Portable or Digital |
| Measurements | |
| Item Dimensions | 20 x 10 x 25 Centimeters |
| Others | |
| Product Type | Multi Testers |
| Packer Contact Information | Shakti Tools And Hardware Store REGD |
| Importer Contact Information | Shakti Tools And Hardware Store REGD |
| Manufacturer Contact Information | Shakti Tools And Hardware Store REGD |
| Power Source Type | Battery Powered |
