ADD GEAR SMV Optical Fiber Splicing Sleeve Clear PE Heat Shrinkable Tube Fiber Optic Cable/Fusion Splice Telecom FTTH Protector Kit 1.2 mm Steel Needle (Length 45 mm) (500)
- Airproof Configuration, Clear Sleeve Detection
-
Save 10% when you buy two or more items.
-
Get 5% off your next purchase.
-
Enjoy free delivery on orders above $200.
-
Orders are processed and shipped from Canberra
3-6 days (Domestic)
Confidence-backed purchases with 30-day return support.
AUD |
BRSWYGAYBEOWMHTB |
Category |
Electrical , Cord Management , Cable Sleeves |
Tags |
Estimated shipping
Select a product to estimate shipping.Product Features

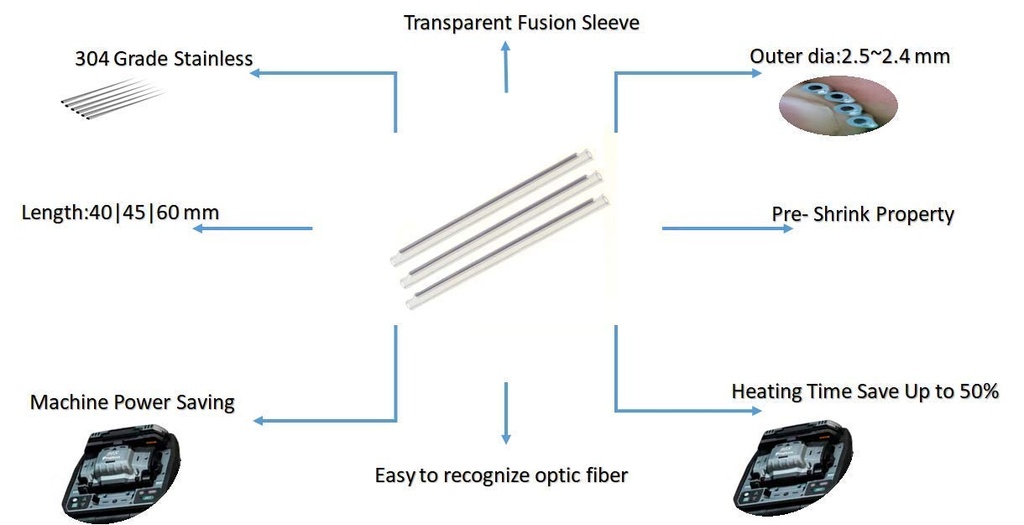

Available in packs of 50 / 100 / 200 / 500 / 1000
Outer Diameter:2.6mm, Length: 45mm or 62mm

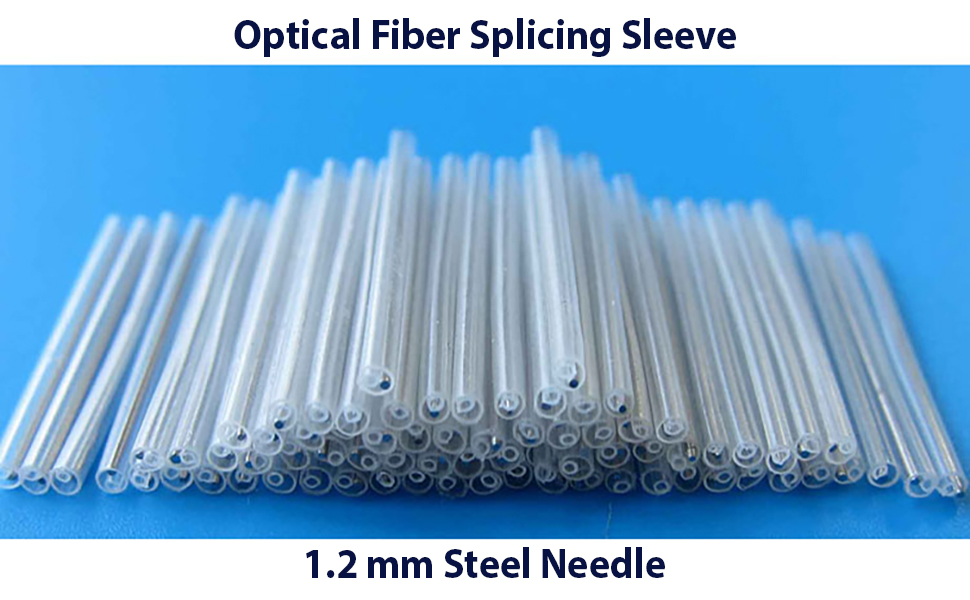

Steel Rod Dia:1.2 mm, Material: Polyolefin, Stainless Steel
Operating temperature:-45°C to+100°C, Minimum fully recovery temperature:120°C
Standard color: Clear, Silver Tone

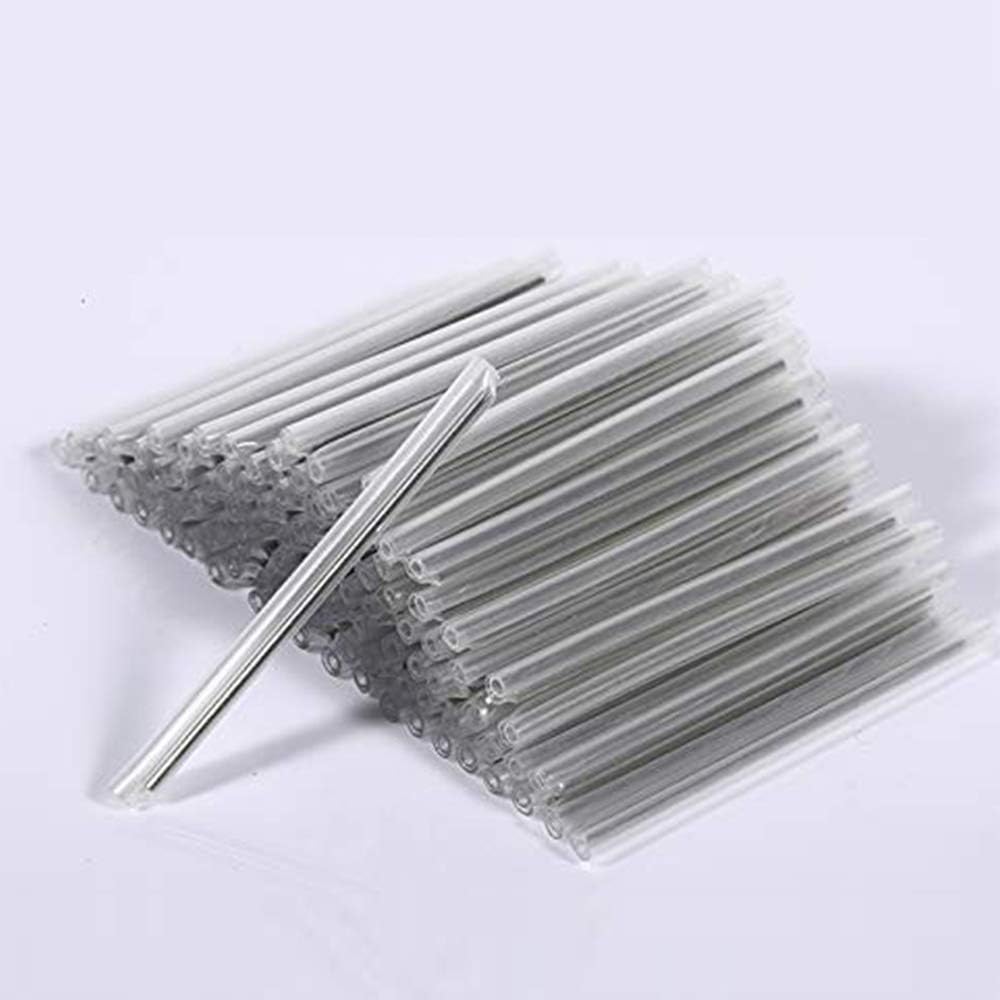

High-quality fiber splice protector sleeves, Stiffness of connection and quickness of assembly are the basic advantages of this solution. Heat Shrinkable Tube consists of transparent heat shrinkable casing(Outer tube), clear hot melt tube(inner tube) and 304 stainless steel rod(reinforcing rib)
Specification
1. The sealing structure makes the splice free from the dangers of temperature and humidity from the environment, avoid any damages to the optical fiber during installation.
2. Does not affect the optical properties of photo-conductivity, protect splice position, enhancing mechanical strength.
3. Smooth, deburred stainless steel reinforcing member ends decrease the risk of fiber damage during installation.
4. Single holed(preshrunk)ends eliminates improper fiber threading, Extended liner length prevents contact between the fiber and the backbone.
Easy to Use
1. Transparent Clear sleeve make it easy to detect splice before shrinkage heating, Airproof structure keeping the splice point's good resistance to humidity and temperature.
2. Moisture resistant: Strength member is made from "Full hard" stainless steel of 304 grade to avoid rupturing during shrinking, 304 grade gives better corrosion resistance, even in the coastal environment. Resistant to heat shocks, no cracking dripping or flowing.
This Product is proudly MADE IN INDIA
Quality Assured
We are manufacturer of Fiber Optic Splice Sleeve is a combination of transparent plastic tubing and a stainless-steel rod that is ideal for safeguarding fusion fiber optic splices in field and factory operations.
It is designed for wall-mount, aerial strand-mount, pedestal, underground, strand-mount and pole-mount applications.Transparent plastic tube with stainless-steel rod.
Fiber Optic Splice Sleeve are manufactured using state of the art machines
How does it work?

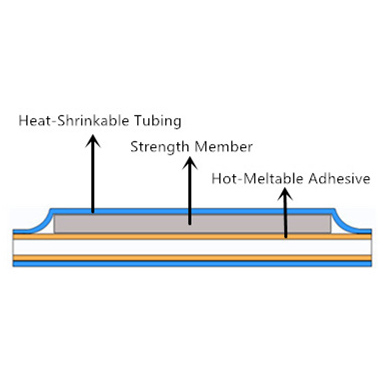

he thermo shrinking type of splice protection sleeves consists of three parts, the outer heat shrinkable tubing, the inner hot melt adhesive tubing and the strength member.
Ther inner hot melt adhesive melts and adheres to the fiber and the outer tubing shrinks to completely encaspulate it.
The strength member gives mechanical strength to the sleeve preventing bending and allowing the sleeves to be arranged in splicing trays conveniently
Be Aware of These Precautions
While utilizing the fiber protection sleeves :-
Do not leave air bubbles in the protection tube. This ensures the long-term reliability of the fiber splices.
The tension applied to the fiber should be uniform so that the fiber can stay straight in the protective sleeve.
The tension applied to the fiber should not be too large in case fiber cracks increase.
Try to avoid fiber twisting. Because this may cause micro-bending and unnecessary fiber loss.
Do not release the tension until the heat-shrinkable tube is completely shrunk, cooled and shaped. This can avoid uneven heating which leads to fiber bending.e of These Precautions
FAQ
Q. What is the function of fiber optic splice?
A.The part of the optical fiber that transmits the optical signal. The general fiber core material is quartz glass and plastic. When welding, remove the outer protective layer and protect it after welding.

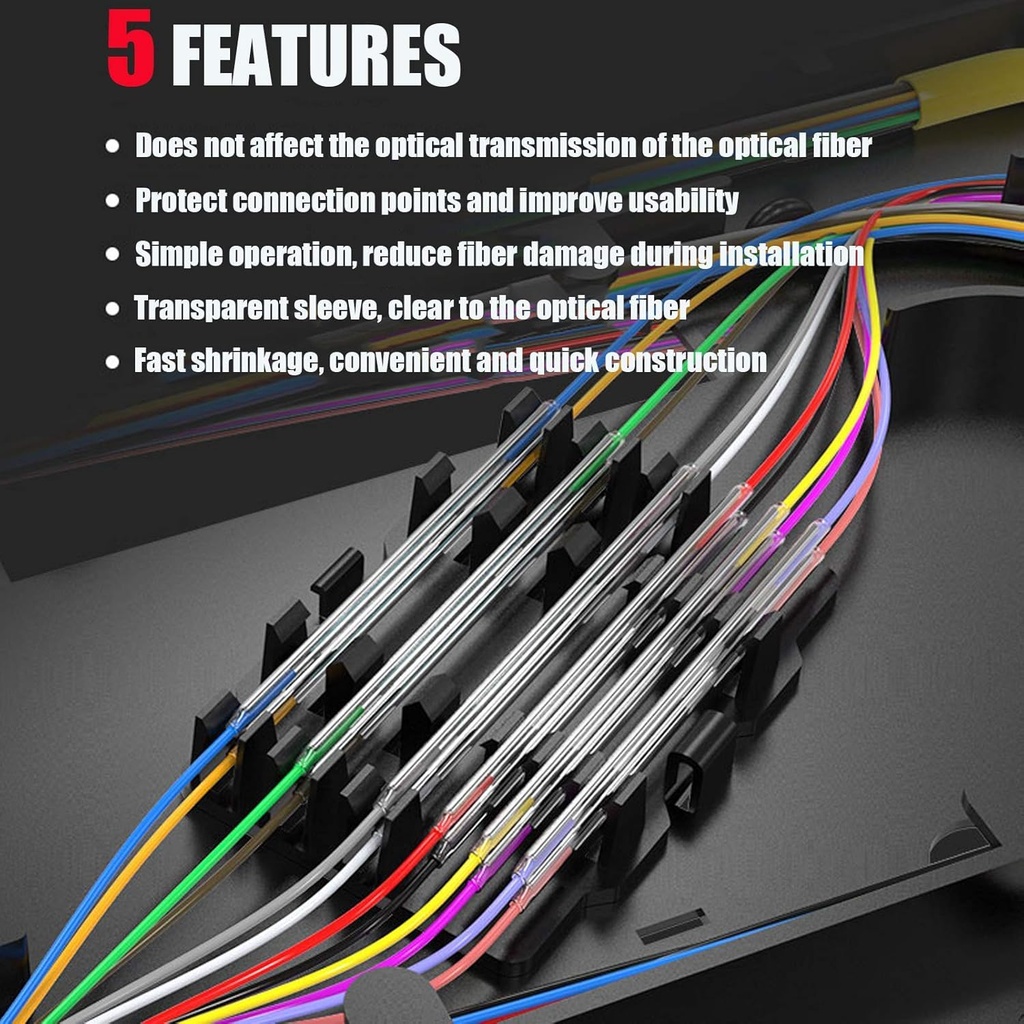

This product consists of cross-linked polyolefin heat-shrinkable tube, hot-melt tube and reinforced stainless steel needle, specially designed for fiber connection;
1. Does not affect the optical conductivity of the fiber;
2. Protect the connection point and improve the mechanical strength;
3. Simple operation, reducing the risk of damage to the fiber during installation;
4. Transparent casing, which can be seen at a glance.
Product details
| Main Specification | |
|---|---|
| Compatible Devices | Fiber Optic Networking Equipment or Fiber Optic Router or Fiber Optic Switch or Fiber Optic Transceiver |
| Special Feature | Airproof Configuration or Clear Sleeve Detection |
| Manufacturer | SMV |
| Unit Count | 500 Count |
| Cable Type | Fibre Optic |
| Brand | ADD GEAR |
| Recommended Uses For Product | Telecommunication infrastructure installation and maintenance |
| Colour | Silver |
| Connector Type | Optical |
| Item Weight | 350 Grams |
| Product information | |
| Customer Package Type | bundle |
| Technical Details | |
| Number Of Pins | 500 |
| Country of Origin | India |
| Item details | |
| Indoor Outdoor Usage | Outdoor |
| Others | |
| Other Special Features of the Product | Airproof Configuration or Clear Sleeve Detection |
| Product Type | Cable Sleeves |
| Packer Contact Information | 9869018845 |
| Item Shape | Round |
| Outer Material Type | Polyolefin |
