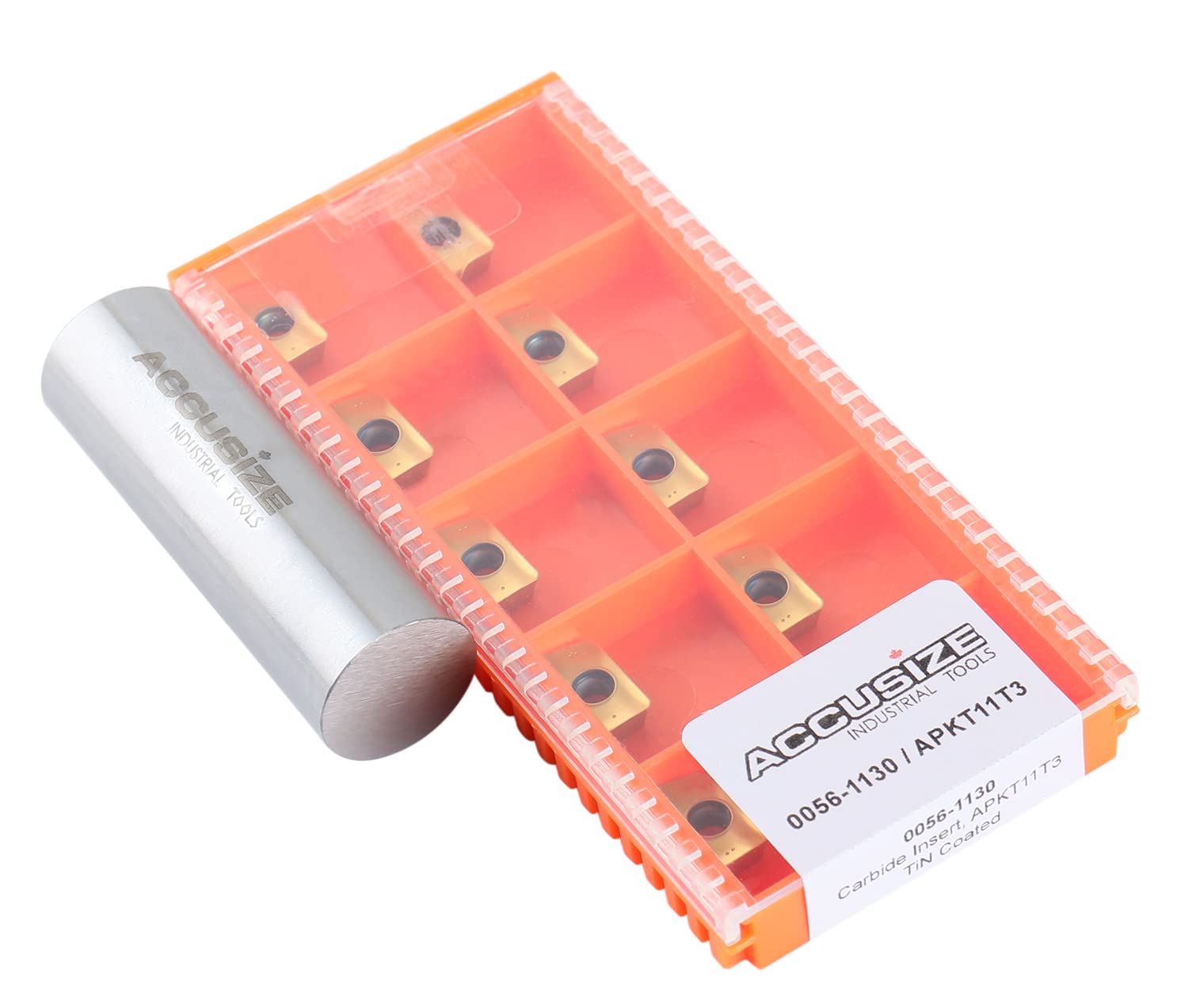

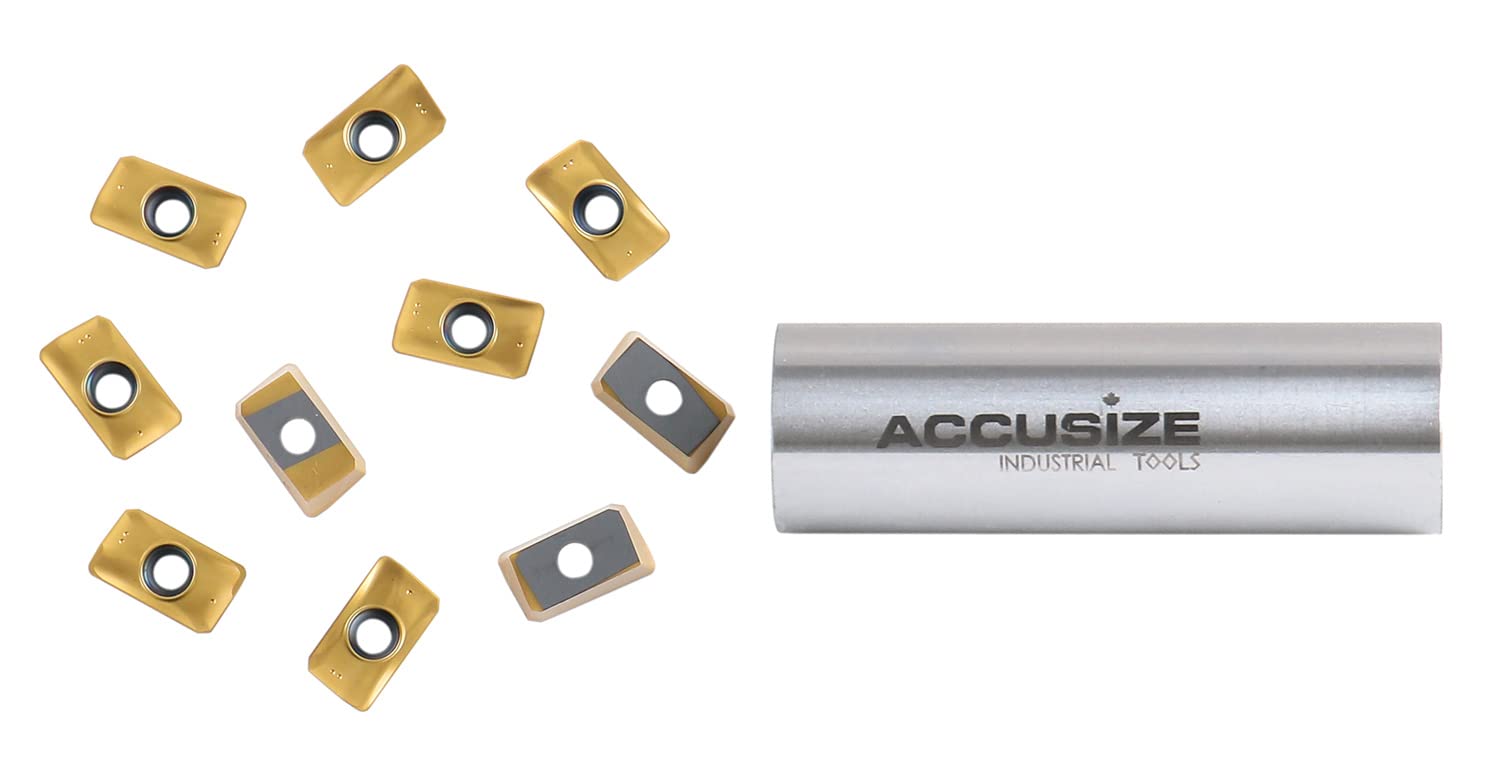

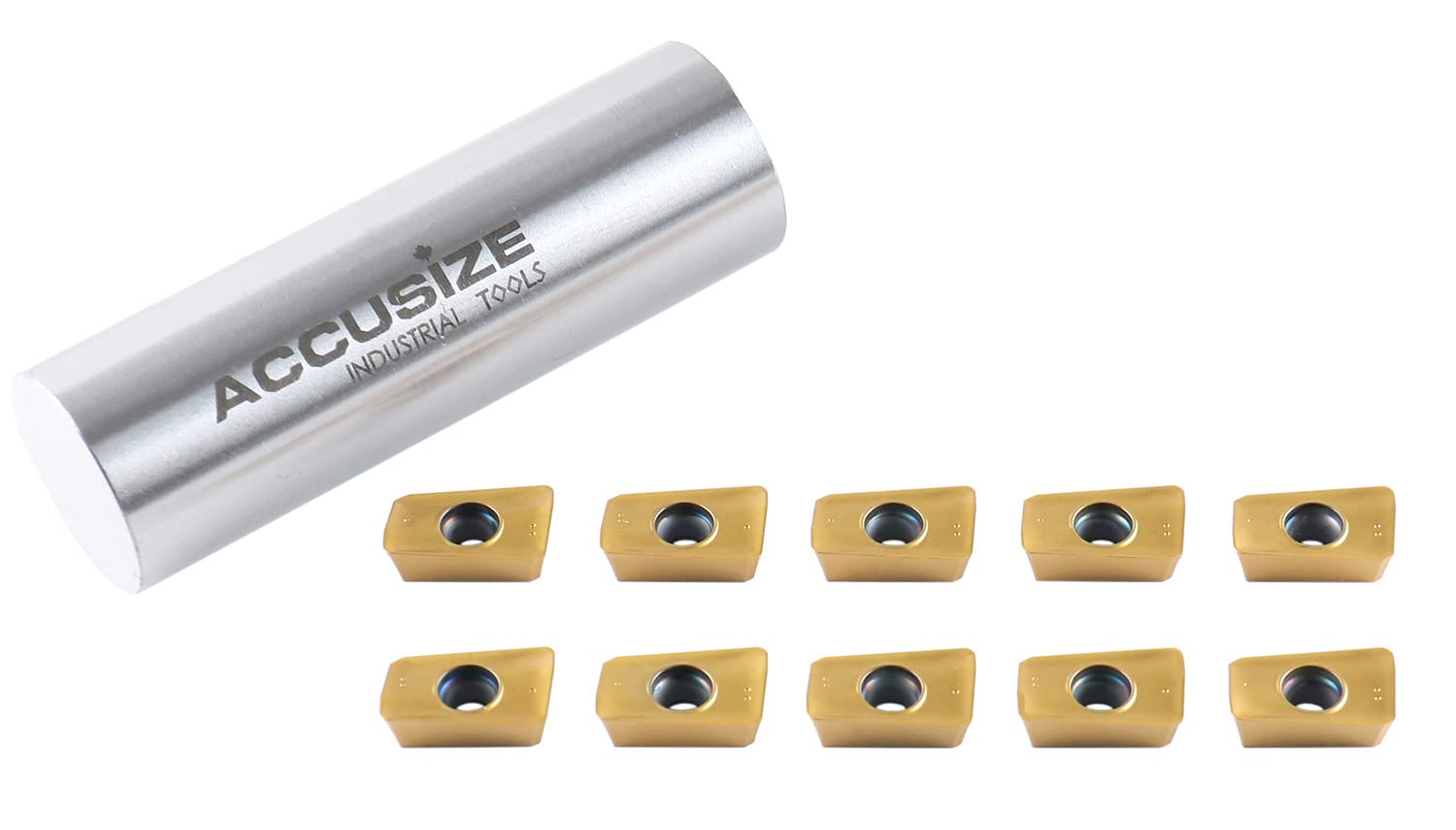

Accusize APKT11T3 Carbide Inserts, TiN Coated, Machining Steel, 10Pc
- TIN-COATED FOR STEEL: Designed for milling steel with a compatible indexable cutter. Select cutting conditions for the material and setup
- PRECISION INSERT GEOMETRY: 0.244in inscribed circle, 0.110in hole, and 1/32in corner radius with a positive chipbreaker for milling steel
- MOUNTS ON COMPATIBLE TOOLHOLDERS: The 0.110in countersunk hole and ISO-compliant screw pattern seat in a milling cutter and insert pocket designed for this insert, with a 1/32in radius shaping a clean corner on every pass
- INDEXABLE INSERTS, 10 PER BOX: Index or replace an insert as permitted by the compatible milling cutter and insert pocket. The number of usable edges depends on cutter geometry
- VERSATILE MILLING APPLICATIONS: Designed for shoulder milling, face milling, profiling, and slotting with compatible indexable milling cutters
-
Save 10% when you buy two or more items.
-
Get 5% off your next purchase.
-
Enjoy free delivery on orders above $200.
-
Orders are processed and shipped from Canberra
3-6 days (Domestic)
Confidence-backed purchases with 30-day return support.
AUD |
BRSWKE3QAEDRQAA3 |
Category |
Cutting Tools , Indexable Inserts , Milling Inserts |
Tags |
Estimated shipping
Select a product to estimate shipping.Accusize Industrial Tools APKT11T3 TiN Coated Carbide Inserts 0056-1130 for Machining Steel
APKT positive-rake parallelogram milling inserts are used to machine steel. Occasionally, some customers gave us feedbacks that those inserts can be used to machine stainless steel with ideal results.

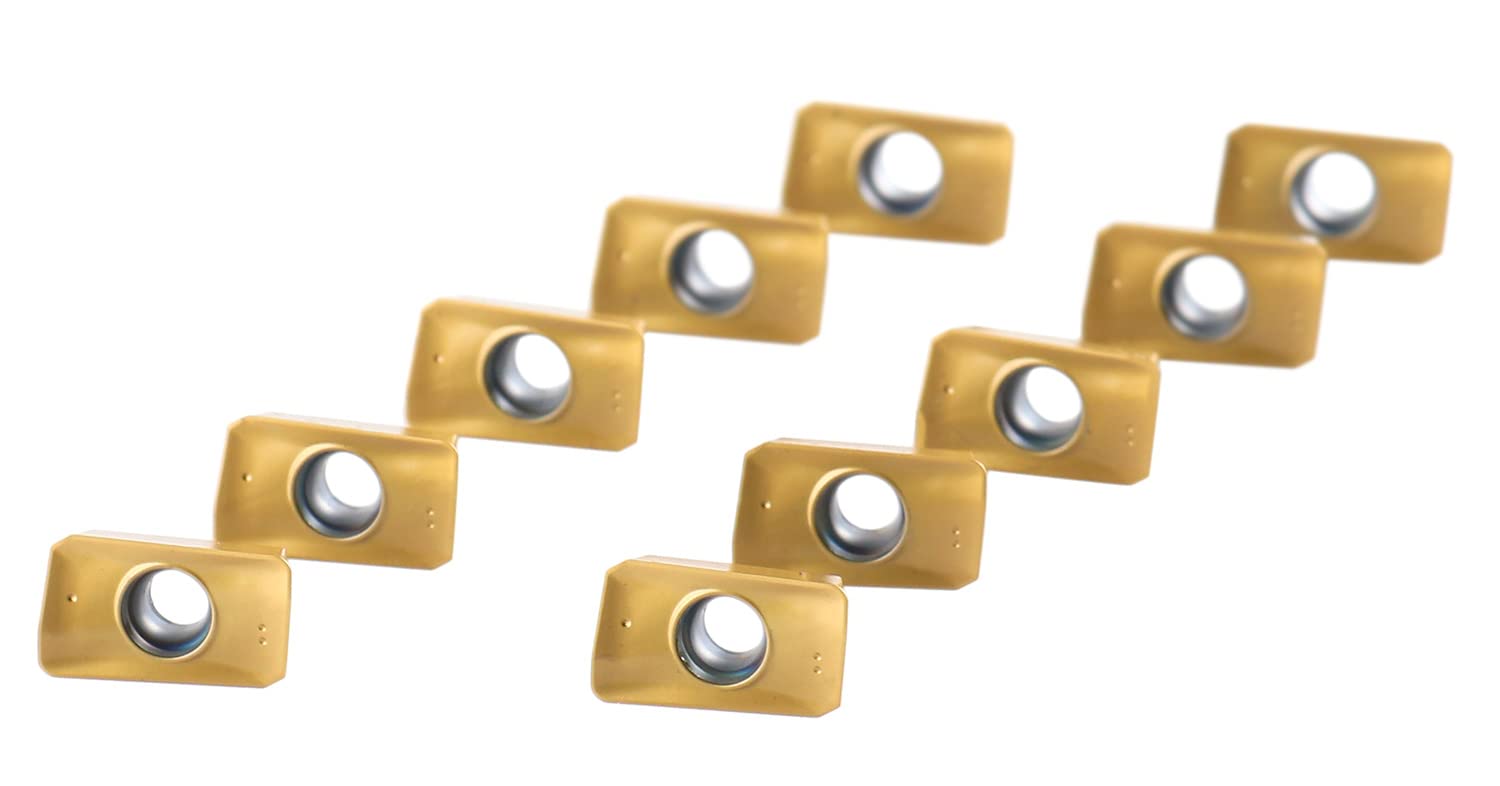

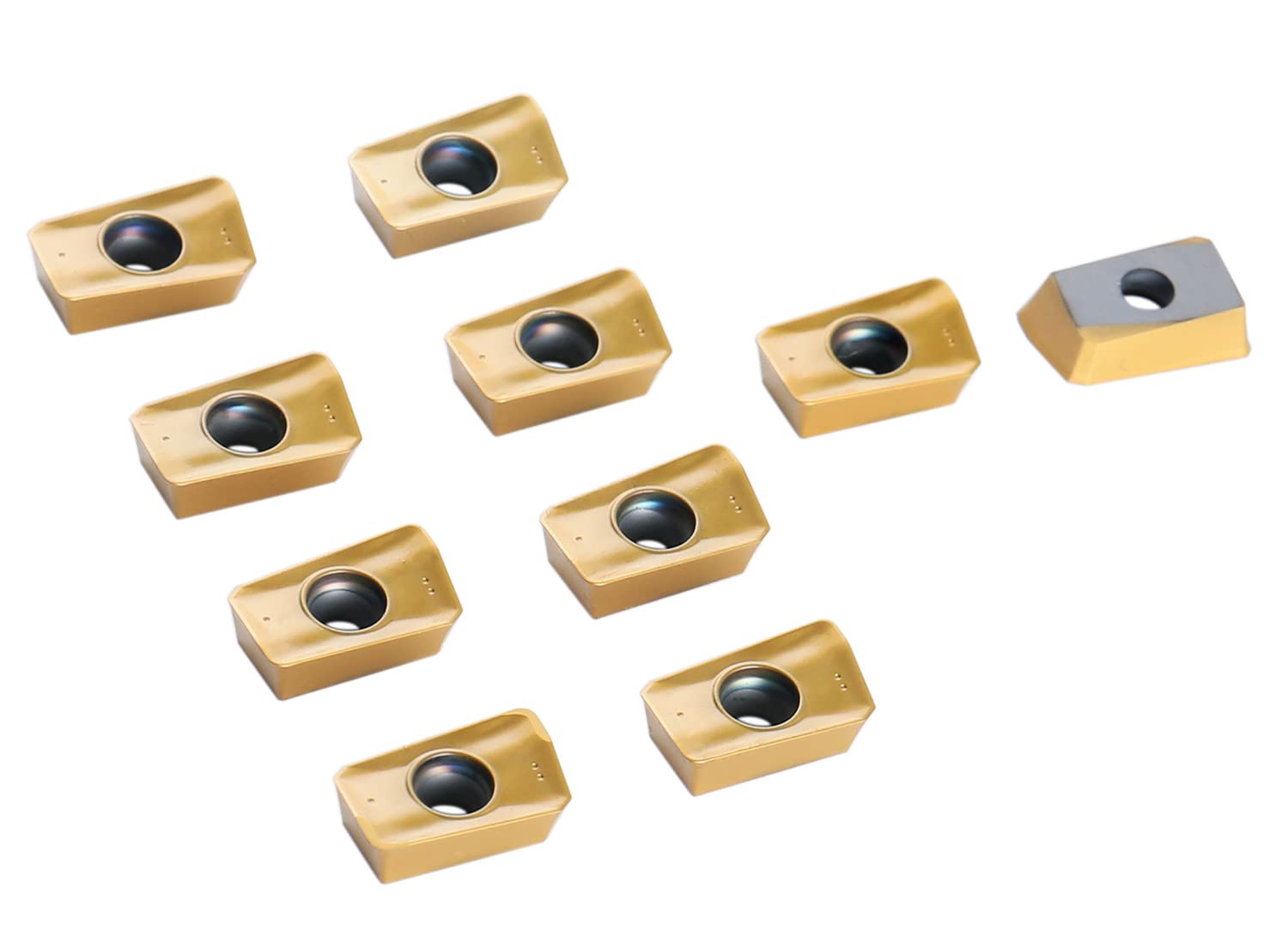

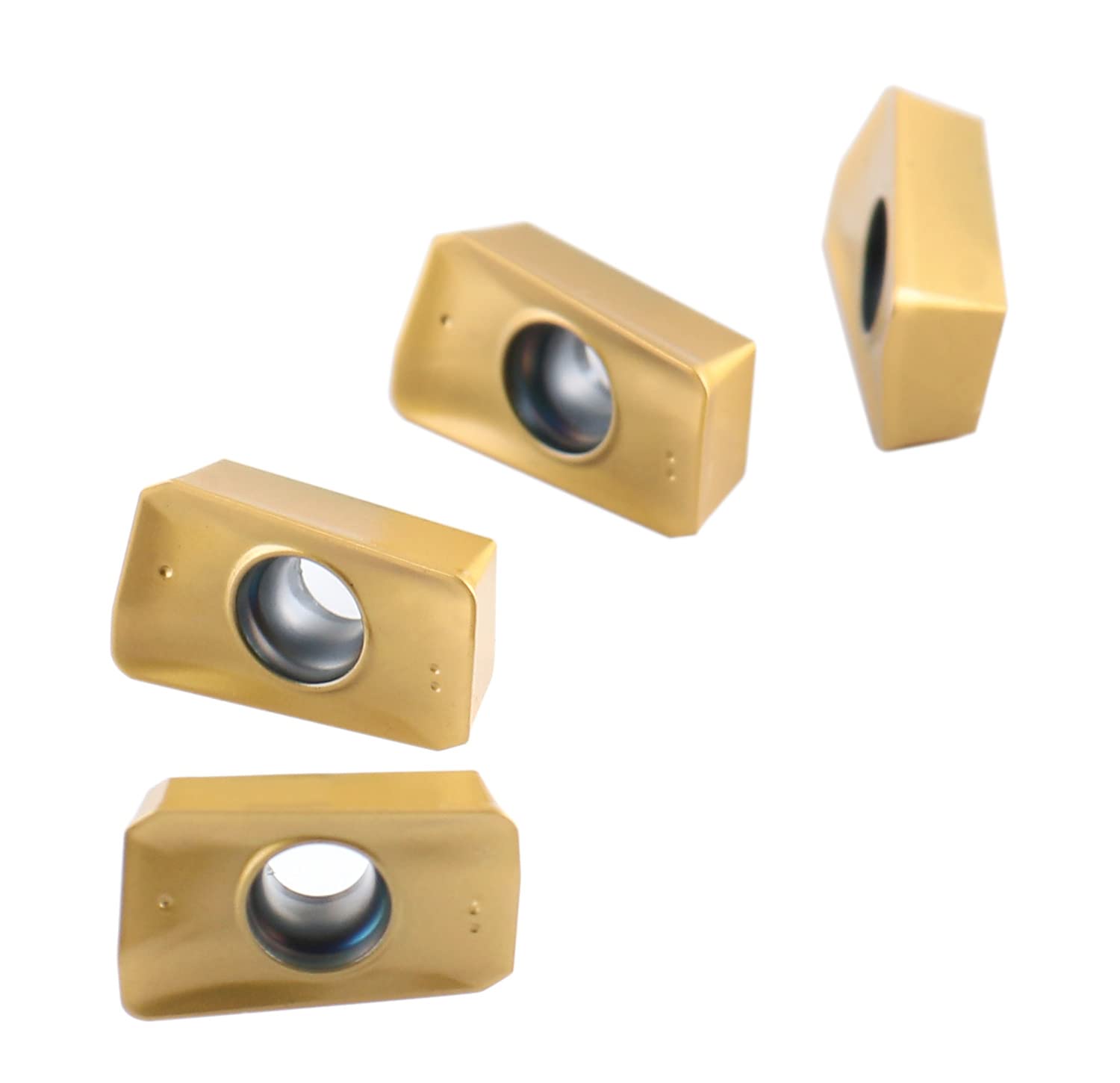

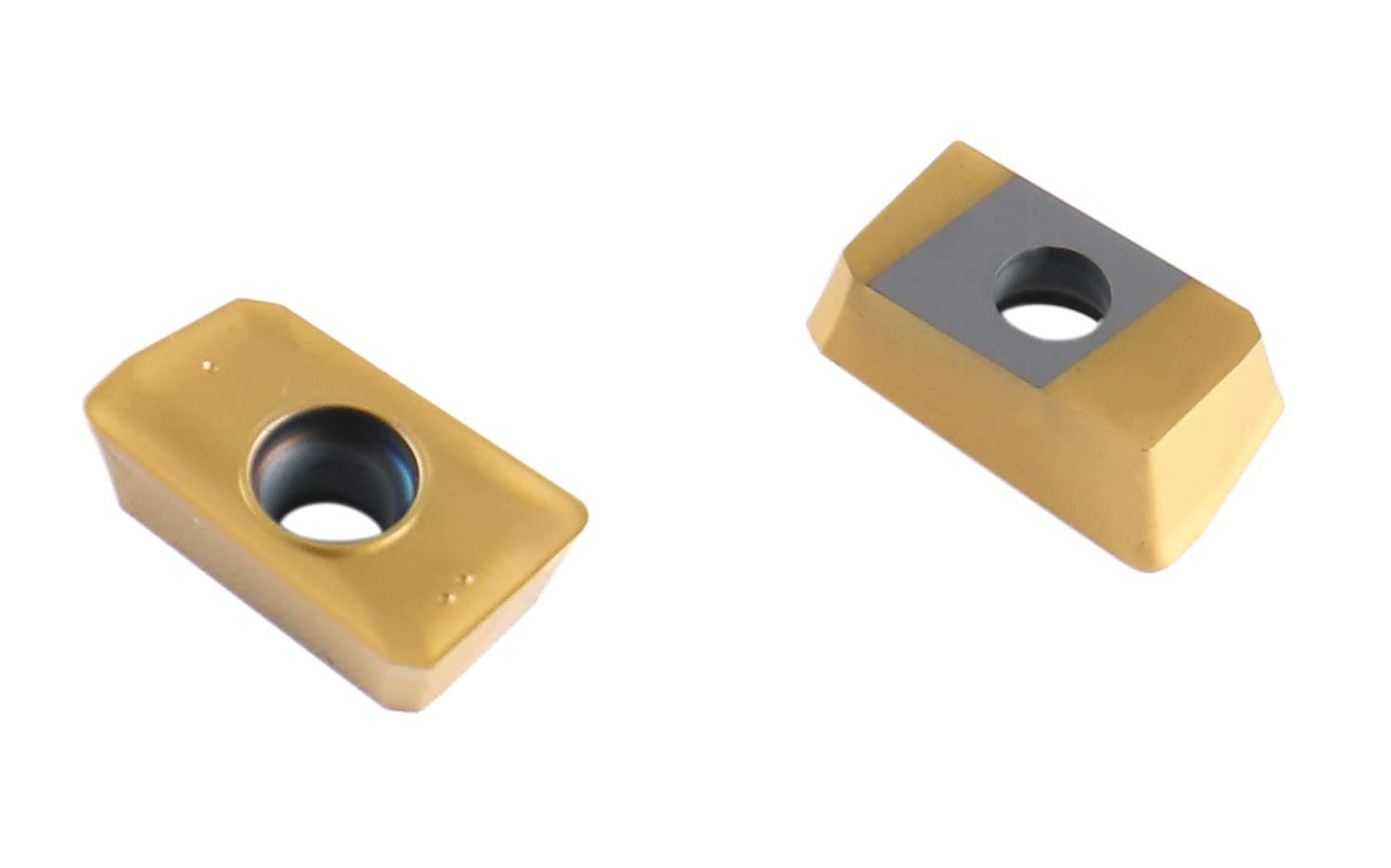

The carbide TiN coated parallelogram milling inserts have an offset rectangle shape with four sides and two acute (85°) cutting points at opposite corners. They are mounted to a compatible toolholder / indexable milling cutter / indexable shell milling cutter / indexable face milling cutter, which is attached to a milling machine. They can be replaced with new inserts of the same type or different types without removing the toolholder cutter from the machine.
Indexable milling cutters require fewer tool changes than solid cutters in high-volume metalworking and fabrication applications with high speeds, high feeds, and difficult-to-machine objects.
Tin coated inserts work longer and are able to run at faster speeds than uncoated inserts.
The positive-rake feature enables the inserts to have an edge that is less than 90° to sit flat in the insert holder for improved cutting clearance and a better finish than negative-rake ones. The inserts have cutting edges on 1 side. They are TiN coated, which enable the inserts to work longer and are able to run at faster speeds than uncoated inserts.
When a cutting edge of the APKT insert becomes dull, you just need to rotate the insert in the holder to use the sharp edge.
The APKT inserts are with precision moulded I.C., positive moulded chipbreaker. They have sharp and honed cutting edge and 11° relief angle. They are with screw holes created in compliance with ISO. Typically, it is viewed as with 2 cutting-edges. However, they actually have 4 cutting edges. when they are installed on 90° indexable milling cutters and both edges become dull, they can be installed on 75° indexable milling cutters and continue other milling applications with the other two edges.
The APKT inserts are designed not only for the general-purpose milling application but for high-performance milling applications. The milling jobs it can be applied are from roughing to finishing applications.
Furthermore, you may use the APKT carbide inserts with medium to high cutting speeds with high rate material removal.
TiN Coated, C5 coating grade
Good for both finishing and roughing
Dual-edge
Used for indexable face mill and end mill
Performing square milling and side milling
Product details
| Main Specification | |
|---|---|
| Manufacturer | Accusize Co., Ltd. |
| Brand | Accusize Industrial Tools |
| Product Dimensions | 5.91 x 1.97 x 0.79 inches |
| Item Weight | 7 ounces |
| Product information | |
| Item model number | 0056-1130 |
| Others | |
| Date First Available | January 6 or 2016 |
| Product Type | Milling Inserts |
